IMADA / eRT-5N Torque Load Cell

Torque load cell for eZ-Connect Series measures rotating torque up to 5N-m. It is ideal for the torque measurement for samples continuously rotating more than 360 degrees, such as gears and rollers.

Category: 토크센서

Tag: 토크

브랜드: IMADA

설명

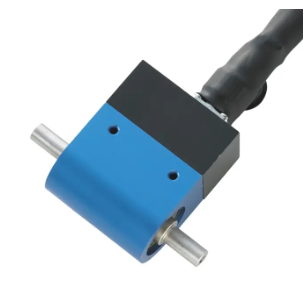

eRT-5N Torque Load Cell

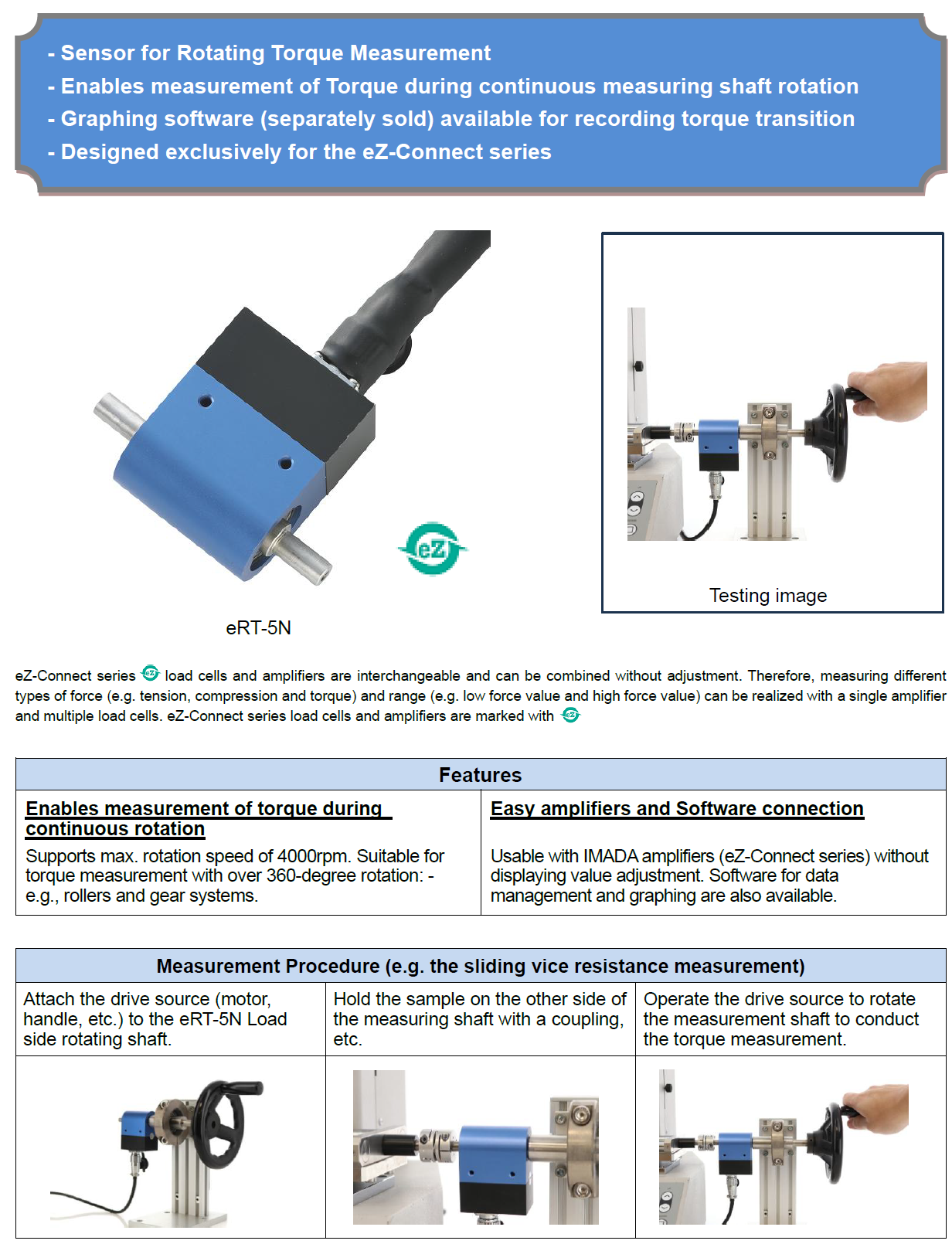

Feature

Load cell for torque measurement, used in combination with the eZ-Connect series amplifier (sold separately).
Conducting toque measurements is possible while the shaft is being rotated continuously, including those that rotate over 360 degrees.
Additional accessories and attachments, such as a handle to rotate the shaft and couplings, etc., are made to order at cost. Please contact us for details.
