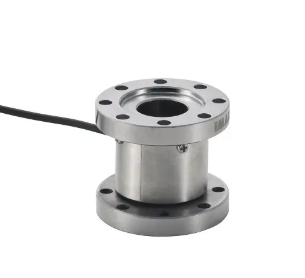

IMADA / TFX series Torque Load Cell

Flange type torque load cell for eZ-Connect Series measures the twisting (turning) force to the left or right. It is ideal to integrate to equipment by fixing it with its equipped through holes on both sides. A dedicated indicator i.e., eZT or eFA plus, needs to be used.

브랜드: IMADA

설명

TFX series Torque Load Cell

Feature

Designed to measure rotating/twisting force (torque) by combining the sensor with amplifier eZT (sold separately)
Ideal for integration to equipment by fixing it with its equipped through holes on both sides
Suits for measurements in limited space due to the small body
