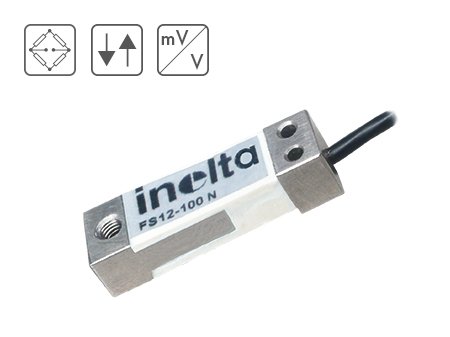

Miniature force sensor, bending beam for tensile and compressive forces, easy to integrate due to high accuracy and reliability. Typical applications are small platform scales and equipment for dosing and level measurement.
| Specification | Details |
|---|---|
| Construction | Bending Beam |
| Measuring Direction | Pressure / Tension |
| Nominal Force | 0.1 – 0.5 kN |
| Output Signal | 2 mV/V |
| Linearity Deviation | < 0.25 % F.S. |
| Sealing | IP65 |
| Temperature Coefficient | < 0.5 % F.S. / 10K |
| Temperature Range | -10 ~ +70 °C |
