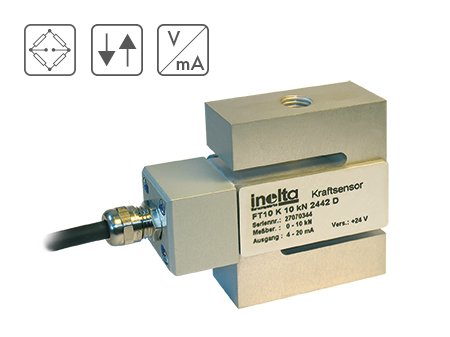

S-beam force sensor with integrated signal conditioner and symmetrical design, good dynamic behavior, high breaking load range and easy integration possibility.
| Specification | Details |
|---|---|
| Construction | S-Beam |
| Measuring Direction | Pressure / Tension |
| Nominal Force | 1 – 50 kN |
| Output Signal | 0–5 V, ±5 V, 0–10 V, ±10 V, 0–20 mA, 4–20 mA |
| Linearity Deviation | < 0.1 % F.S. |
| Sealing | IP64 |
| Temperature Coefficient | < 0.15 % F.S. / 10K |
| Temperature Range | 0 ~ +70 °C |
