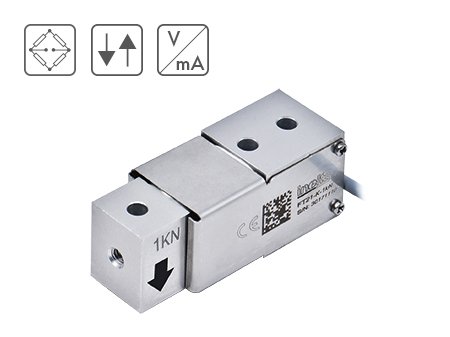

Tension and compression force transducer as „bending beam“ with integrated signal conditioner and high linearity, suitable for measuring from small to medium forces. Easy integration and mounting by through holes.
| Specifications | Details |
|---|---|
| Construction | Bending Beam |
| Measuring direction | Pressure / Tension |
| Nominal force | 200 N – 10 kN |
| Output signal | 0–5 V, 0–10 V, ±5 V, ±10 V, 4–20 mA |
| Linearity deviation | < 0.02% F.S. |
| Sealing | IP64 |
| Temperature coefficient | < 0.1% F.S. / 10K |
| Temperature range | -20 to +60 °C |
