LAUMAS / MODRADIO / 무선 컨버터

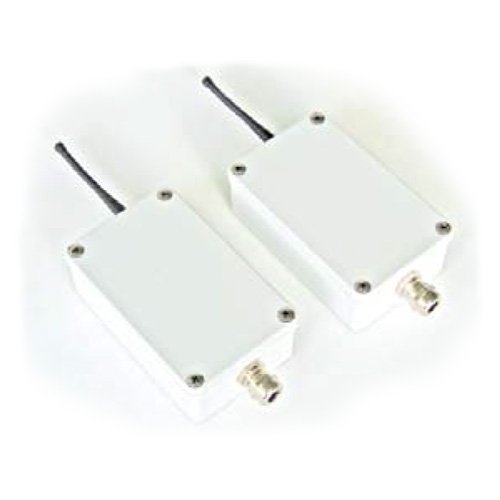

A pair of radio modems RS232/RS485 for data or load cell signal transmission via radio frequency.
- Frequency 868 MHz with 7 channels RF.
- Signal range max 200 meters in free air space.
- Connecton modes: RS232 / RS485 (max. baudrate 38400 bit/s).
- Power Supply 5 VDC. 230VAC/5VDC external power supply included..
- Dimensions 126 x 79 x h 42 mm.

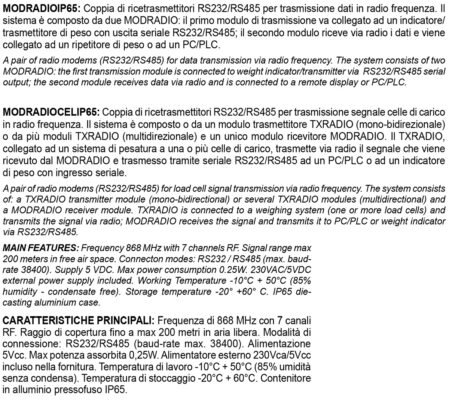

MODRADIOIP65 for data transmission:

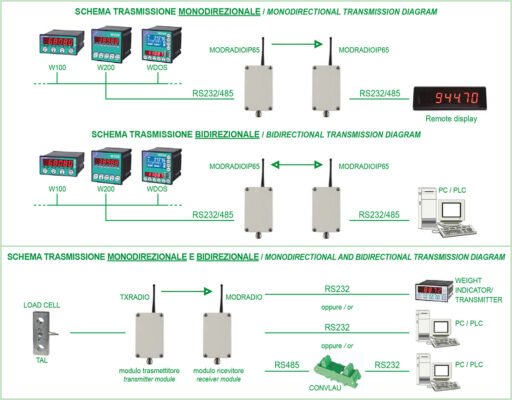

The system consists of two MODRADIO: the fi rst transmission module is connected to weight indicator/transmitter via RS232/RS485 serial output; the second module receives the data via radio and is connected to a remote display or PC/PLC.
MODRADIOCELIP65 for load cell signal transmission:
The system consists of a TXRADIO transmitter module (mono-bidirectional) or several TXRADIO modules (multidirectional) and a MODRADIO receiver module. TXRADIO is connected to a weighing system (one or more load cells) and transmits the signal via radio; MODRADIO receives the signal and transmits it to PC/PLC or weight indicator via RS232/RS485.
