설명
Models
WDOS-MU, WDOS-C, WDOS-S, WDOS-3, WDOS-6, WDOS-14, WDOS-MU

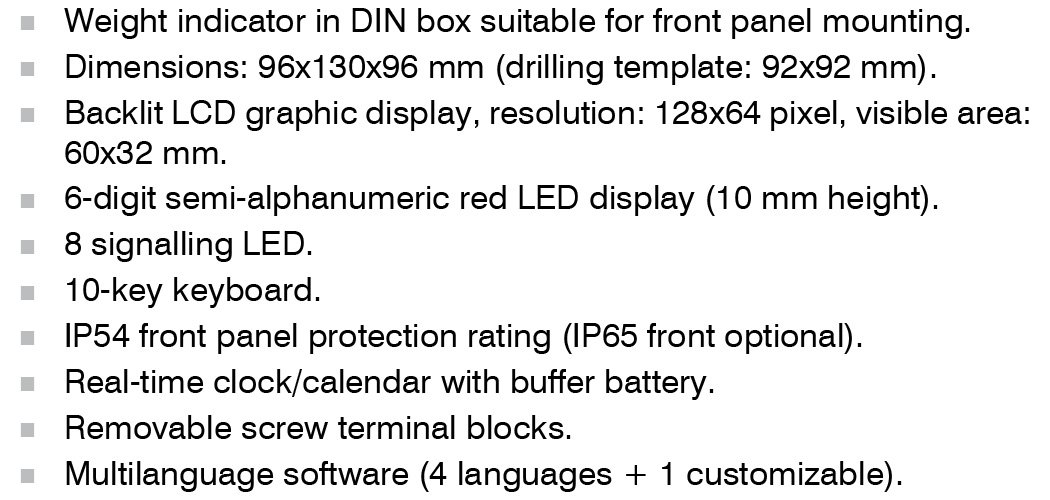

Features
Dimensions

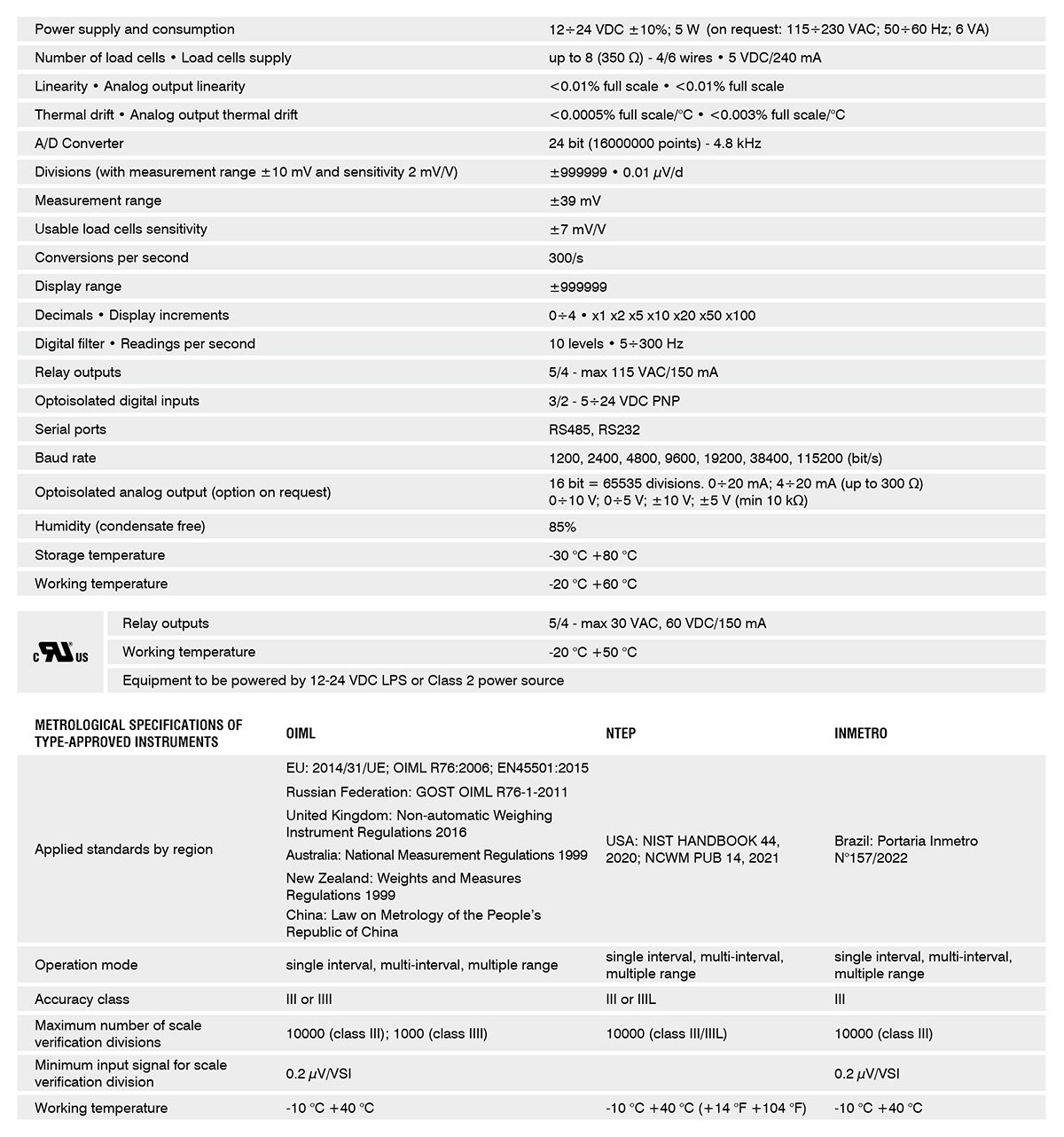

Specifications
LAUMAS / WDOS / 인디케이터
- Panel mounting
- Multiprogram: single loading/unloading and multi-product batchings, max 99 formulas
- Backlit graphic LCD display, 60×32 mm, 128×64 pixels
- Six-digit red LED display, 10 mm height
- RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
- 3 logic inputs, 5 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- OIML R61 approved – WELMEC Guide 8.8:2011 (M.I.D.)
- Optional fieldbuses: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP. Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc.
- A/D converter 24bit (16000000 points) 4.8 kHz
- Display range 999999
