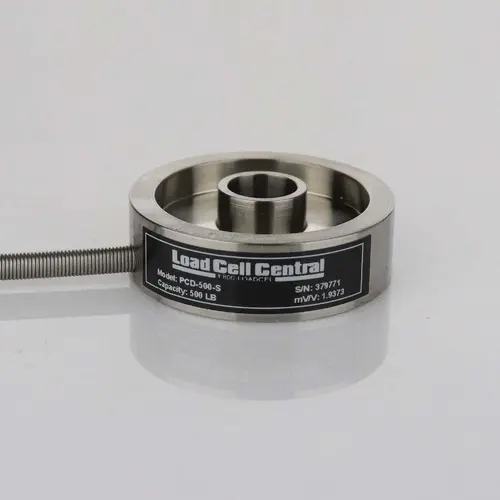

PCD Donut Load Cell

Load Cell Central’s Model PCD donut load cell features a 1.5″ O.D., and I.D.’s from 1/8″ to 3/8″ with a thru-hole design perfect for compression applications which require the load structure to pass directly through the load cell. Such applications include bolt force measurements and clamping forces. This donut load cell performs within a maximum full scale non-linearity and hysteresis of 0.5%.  For optimum performance, these cells must be mounted between load surfaces which are machined flat and parallel.
