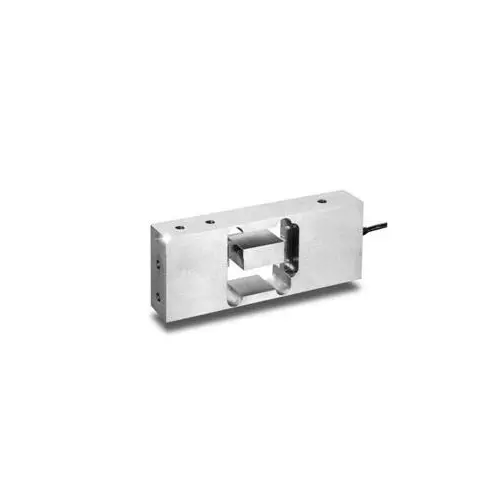

STSP1 Stainless Steel Single Point Load Cell

The STSP1 stainless steel load cell is designed for harsh environments and high accuracy applications. With a combined error of 0.017% FS it is the most accurate load cell of its type on the market. Low in cost and suitable for a wide variety of OEM and force measurement applications, the STPS1 load cell is readily available in large or small quantities.

Direct interchange for the HPSM load cell.

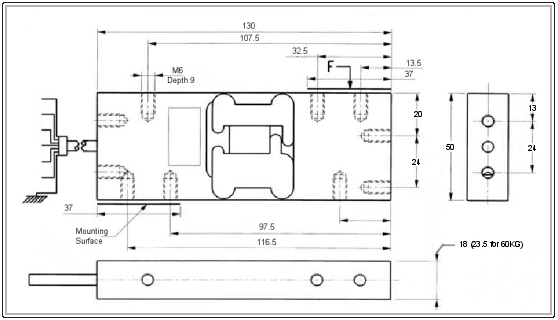

Dimensions (mm)

Recommended Max. Platform Size

6 – 12kg: 350 x 350 mm (13.8″ x 13.8″)

30 – 60kg: 420 x 420 mm (16.5″ x 16.5″)

Specifications	Details
Output	2 mV/V Nominal
Combined Error	0.017%
Creep (30 minutes)	0.025%
Zero Return	0.017%
Thermal Sensitivity Shift	0.0012%/°C
Thermal Zero Shift	0.0030%/°C
Compensated Temperature Range	-10°C to 40°C
Operating Temperature Range	-20°C to 60°C
Zero Balance	±10% R.O.
Input Resistance	385 ± 20 Ω
Output Resistance	350 ± 5 Ω
Recommended Excitation	10 V (15 V max)
Insulation Resistance	> 5000 MΩ
Safe Overload	150%
