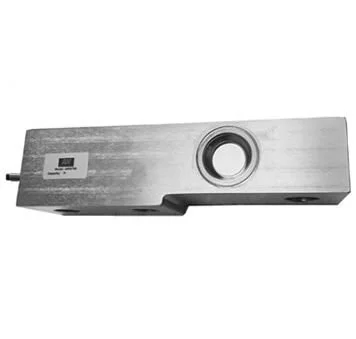

Shear Beam – AW8708 7t

The AW8708 is a specialized 7t capacity shear beam load cell, offering precise measurement with a 1.75mV/V output signal.
Key attributes include:

Construction:
Tool steel with electroless Nickel plating
IP67 sealing for environmental protection

Versatility:
Direct replacement for popular 7t, 1.75mV/V load cells
Suitable for bagging scales, platform scales, hopper scales, and various weighing applications

Performance:
Rated Output: 1.75 ± 0.01 mV/V
Zero Balance: ±1% mV/V
Non-Linearity: 0.025% RO
Hysteresis: < 0.010% RO

User-Friendly:
Economical solution
Easy field installation
Compatible with accessories: digital readout, swivel foot, mounting plates
The AW8708 shear beam combines accuracy, durability, and ease of use, making it an ideal choice for 7t capacity industrial weighing needs.
