Performance Features

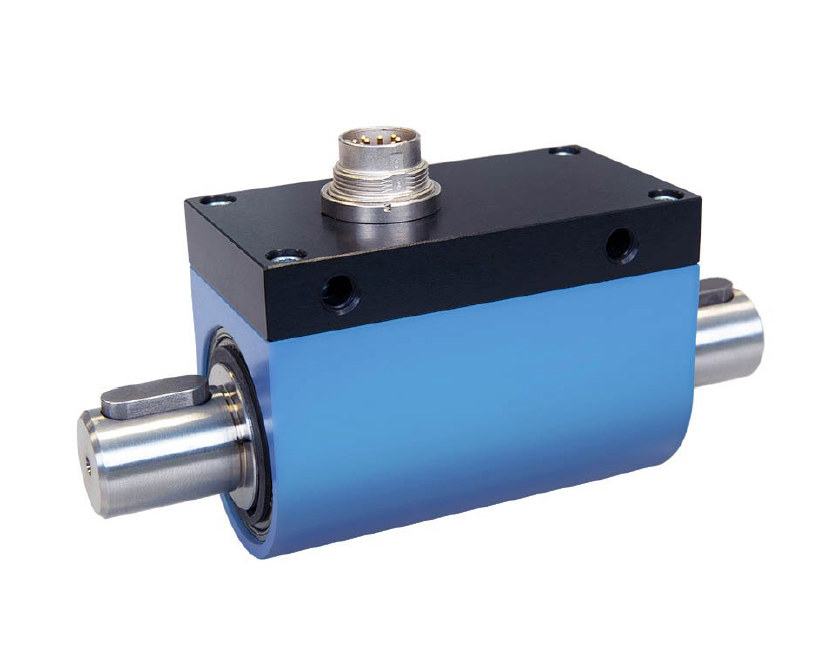

• Slipring torque sensor for e. g. test bench applications
• TEDS (Transducer Electronic Data Sheet)
Standard IEEE 1451.4 (optional)
• High accuracy
• Integrated speed/angle measurement
• Both shaft ends with keys
• Very short axial length
• High torsional stiffness
• Simple handling and assembly
• Special versions on request

Application
• Process measuring and control technology
• Fully automated machining centres
• Measuring and control devices
• Tool engineering
• Special mechanical engineering
