ZC Series – Load Cells
Product Description
Note: Not available in the US.

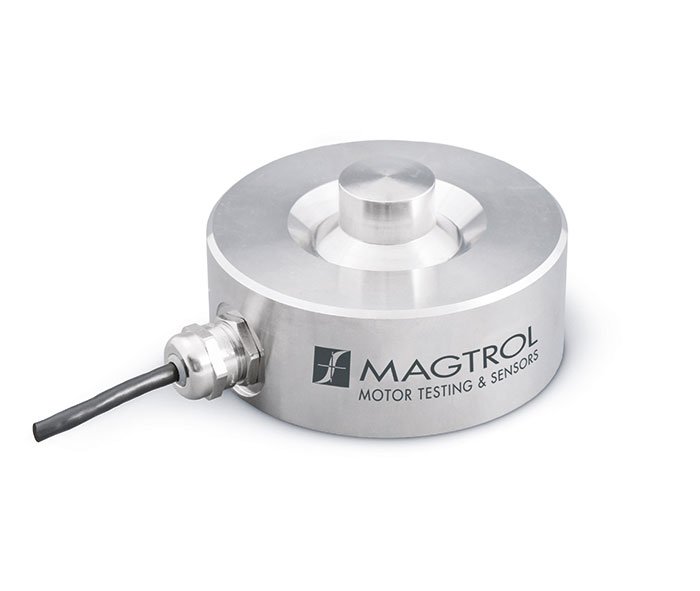

Magtrol’s ZM Series Force Transducers are designed to measure static and dynamic pressure forces. They are characterized by their small dimensions.
Manufactured in stainless steel or high-resistance aluminum, these transducers can be used in a wide variety of applications. In particular, the stainless steel versions with a high degree of protection can be used everywhere without restriction, even in harsh environments.
The sensor element consists of a diaphragm body equipped with metal foil strain gauges, which forms a hermetically sealed chamber filled with dry nitrogen. In standard mounting, the transducers are fixed with screws on a flat surface. The force is introduced vertically (without transverse force) via the universal ball joint, either directly or via a metal adapter interface.
All Magtrol ZM Series transducers are supplied with a 1.5 m long connection cable with loose ends.
Optionally, they can be supplied with a built-in amplifier (ZM‑E). Then, an Output Signals of 0 … 10 V DC or 4 … 20 mA can be selected.
Features
- Nominal Force: 0.1 … 100 kN
- Small size; ideal for space-saving applications
- Cost effective, high accuracy and long service reliability
- Damage-resistant (no mechanically sensitive parts)
- Construction with high-strength aluminum alloy or stainless steel
- Depending on the model, chemical resistant (suitable for moist environments and chemical plants)
- Protection Class: IP 65 or IP 67
- Special designs available upon request
ZM Series Specifications
| ACCURACY CLASS a) | 0.5 | 0.2 | 0.1 |
|---|---|---|---|
| MECHANICAL CHARACTERISTICS | |||
| Nominal Force (=FN) | 0.5 / 1 / 2 / 5 / 10 / 20 / 50 / 100 kN | 20 / 50 / 100 kN | |
| Max. Permissible Force b) | 150% | ||
| Breaking Overload b) | >300% | ||
| Max. Transverse Force b) | 20% | ||
| Combined Error (Linearity & Hysteresis) a,c) | ≤ 0.5 % | ≤ 0.2 % | 0.1 % |
| Temperature Influence on Zero or Sensitivity c) | ≤ 0.5 % / 10 K | ≤ 0.2 % / 10 K | 0.1 % / 10 K |
| Relative Creep (30 min) c) | ≤ 0.5 % | ≤ 0.2 % | 0.1 % |
| Material | Material Special Steel | ||
| ELECTRICAL CHARACTERISTICS | |||
| Nominal Sensitivity (=S) | 1 mV/V ±0.5 % | ||
| Max. Supply Voltage | 10 V DC | ||
| Input Resistance | 380 Ω ±30 | ||
| Output Resistance | 352 Ω ±1.5 | ||
| Insulation Resistance | > 5 x 109 Ω | ||
| Connection Cable | Cable, length 1.5 m d) | ||
| ENVIRONMENT | |||
| Reference Temperature | +23 °C | ||
| Nominal Temperature Range | -20 °C … +60 °C | ||
| Storage Temperature Range | -30 °C … +70 °C | ||
| Protection Class | IP 67 | ||
a) According to VDI 2637
b) % of Nominal Force (Fn)
c) % of Nominal Sensitivity (S)
d) Other length available on request.
ZM-S Series Specifications
| ACCURACY CLASS | 1 | ||
|---|---|---|---|
| MECHANICAL CHARACTERISTICS | |||
| Nominal Force (=FN) | 0.1 / 0.2 / 0.5 / 1 kN | 5 / 10 / 20 kN | 50 kN |
| Max. Permissible Force a) | 150% | ||
| Breaking Overload a) | >300% | ||
| Max. Transverse Force a) | 20% | ||
| Combined Error (Linearity & Hysteresis) b) | 1 % | ||
| Temperature Influence on Zero or Sensitivity b) | ≤ 0.5 % / 10 K | ||
| Relative Creep (30 min) b) | ≤ 0.5 % | ||
| Material | High-strength Aluminum Alloy | Stainless Steel | |
| ELECTRICAL CHARACTERISTICS | |||
| Nominal Sensitivity (=S) | 1 mV/V ±0.5 % | ||
| Zero Tolerance Band b) | ≤ 3 % | ||
| Max. Supply Voltage | 10 V DC | ||
| Input Resistance | 380 Ω ±30 | 760 Ω ±50 | |
| Output Resistance | 352 Ω ±1.5 | 710 Ω ±10 | |
| Insulation Resistance | >5 × 109 | ||
| Connection Cable | Cable, length 1.5 m c) | ||
| ENVIRONMENT | |||
| Reference Temperature | +23 °C | ||
| Nominal Temperature Range | -20 °C … +60 °C | ||
| Storage Temperature Range | -30 °C … +70 °C | ||
| Protection Class | IP 65 | ||
a) % of Nominal Force (Fn)
b) % of Nominal Sensitivity (S)
c) Other length available on request
