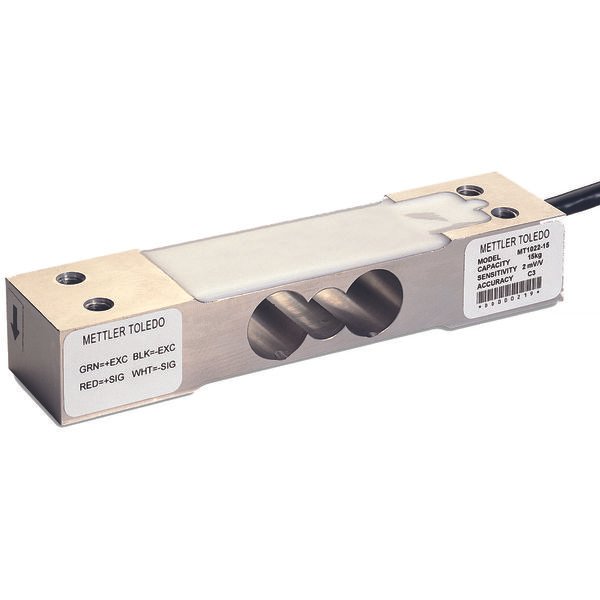

MT1022 Single Point Load Cell
The MT1022 is the ideal solution for retail scales, small platform scales and packaging and process weighing. Due to the low profile the integration into any system is easy. The low capacity range (3 – 30 kg) allows the construction of highly accurate low-capacity scales.

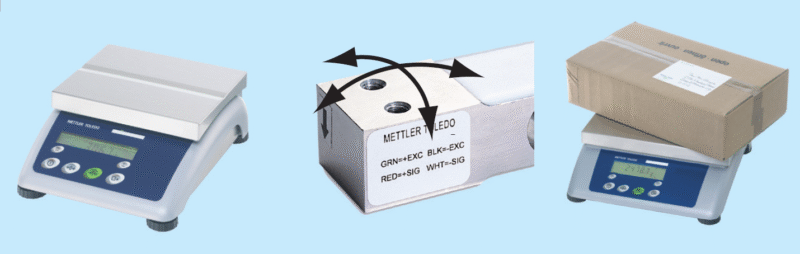

Retail and Bench Scales
MT1022 provides the best weighing performance with such a low profile design. This saves cost in the scale design and makes an attractive low- profile product possible without com- promising on performance.
Off-Center Compensation
One load cell can be used to support a weighing platform and, due to the off- center load compensation, the MT1022 will weigh within tolerance regardless of load application point.
Robustness
MT1022 allows 50% static overload without compromising the weighing performance. The passivated aluminum provides good corrosion resistance suit- able for many industrial applications.
MT1022 Load Cell Specifications
| Parameter | Unit of measure | Specification | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Model No. | MT1022 | ||||||||
| Rated capacity (R.C.) | kg (lb, nominal) | 3 (6.6) | 5 (11) | 7 (15.4) | 10 (22) | 15 (33) | 20 (44.1) | 30 (66.1) | |
| Rated output | mV/V @R.C. | 2 ± 0.2 | |||||||
| Zero load output | %R.C. | ≤ 10 | |||||||
| Combined error 1) 2) | %R.C. | ≤ 0.016 | |||||||
| Repeatability error | %A.L. 3) | ≤ 0.01 | |||||||
| Creep, 30 minute | %A.L. | ≤ 0.0167 | |||||||
| Min. dead load output return (DR), 30 min | %A.L. | ≤ 0.0167 | |||||||
| Temperature effect on | Min. dead load output | %R.C./°C (../°F) | ≤ 0.0014 (0.0008) | ||||||
| Sensitivity 2) | %A.L./°C (../°F) | ≤ 0.0007 (0.00036) | |||||||
| Temperature range | Compensated | °C (°F) | -10 ~ +40 (+14 ~+104) | ||||||
| Operating | -40 ~ +65(-40 ~ +150) | ||||||||
| Safe storage | -40 ~ +80(-40 ~ +176) | ||||||||
| OIML / European approval 4) | OIML Cert. No. | R60/2017-A-NL1-20.05 | |||||||
| European Cert. No. | NMi-1902131-05 | ||||||||
| Class | C3 | ||||||||
| nmax | 3000 | ||||||||
| Y | 9000 | ||||||||
| PLC | 0.7 | ||||||||
| Humidity symbol | None | ||||||||
| Min. dead load | kg (lb) | 0 (0) | |||||||
| Z | 3000 | ||||||||
| NTEP approval 4) | Number | 11–088 | |||||||
| Class | III S, III M | ||||||||
| nmax | 5000 | ||||||||
| Vmin | g(lb) | 0.3(0.0007) | 0.5(0.0011) | 0.7(0.0015) | 1(0.0022) | 1.5(0.0033) | 2(0.0044) | 3(0.0066) | |
| Min. dead load | kg (lb) | 0 (0) | |||||||
| ATEX approval 4) | Number, cat. 2 | KEMA 09ATEX0003 X | |||||||
| Number, cat. 3 | KEMA 09ATEX0004 X | ||||||||
| Rating | II 2 G Ex ib IICT4 | ||||||||
| II 2 D Ex ibD21 IP66 T135°C | |||||||||
| II 3 G Ex nA II T4 | |||||||||
| II 3 G Ex nL IIC T4 | |||||||||
| II 3 D Ex tD A22 IP66 T135°C | |||||||||
| Entity parameters | Ui/Un=20V, Ii=600mA, Pi=1.25W, Ci=5nF, Li=30μH | ||||||||
| Excitation voltage | Recommended | V AC/DC | 5 ~ 15 | ||||||
| Max. | 20 | ||||||||
| Terminal resistance | Excitation | Ω | 410 ± 10 | ||||||
| Output | 350 ± 4 | ||||||||
| Insulation resistance @50VDC | MΩ | > 5000 | |||||||
| Breakdown voltage | V AC | > 500 | |||||||
| Material | Spring element | Aluminium | |||||||
| Enclosure | None | ||||||||
| Cable | PVC | ||||||||
| Protection | Type | Potted | |||||||
| IP Rating | IP 67 | ||||||||
| NEMA Rating | NEMA 6/6P | ||||||||
| Load limit | Safe | %R.C. | 150 | ||||||
| Ultimate | 300 | ||||||||
| Safe dynamic load | %R.C. | 70 | |||||||
| Fatigue life | cycles @R.C. | > 1000000 | |||||||
| Direction of loading | Beam | ||||||||
| Deflection @ R.C., nominal | mm (in) | < 0.8 (0.031) | < 0.5 (0.020) | ||||||
| Weight, nominal | kg (lb) | 0.5 (1.1) | |||||||
| Cable length | m (ft) | 1 (3.3), 3m (6.6) | |||||||
| Barometric pressure effect on zero load output | kg/kPa (lb/in.Hg) | None | |||||||
| Safe side load | %R.C. | 100 | |||||||
| Overload protection | None | ||||||||
| Mounting screw | Grade | 12.9 | |||||||
| Size/thread | mm (in) | M6x1 | |||||||
| Engaged length | mm (in) | 12 (0.47) | |||||||
| Torque, nominal | N.m (ft-lb) | 10 (7.5) | |||||||
| Max. platter size | cm x cm (in x in) | 35 x 35 (14 x 14) | |||||||
| Off center load error, R76-1 | %A.L./cm (../in) | 0.0057 (0.0145) | |||||||
1) Error due to the combined effect of non-linearity and hysteresis
2) Typical values only. The sum of errors due to combined error and temperature effect on sensitivity comply with the requirements of OIML R60 and NIST HB44.
3) A.L. = Applied Load
4) See certificate for complete information.

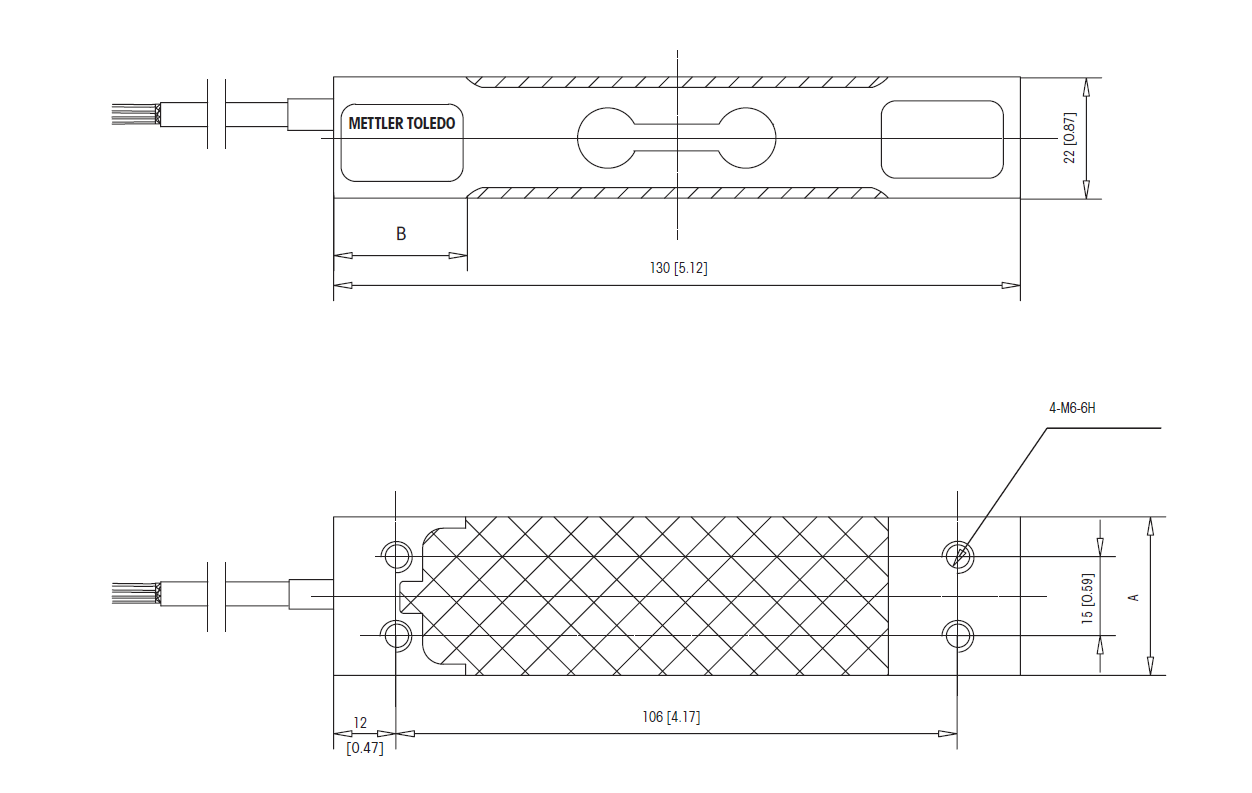

MT1022 Load Cell Dimensional Drawings mm [inch]
| Load Cell Capacity | A | B |
|---|---|---|
| 3, 5, 7 kg | 25.4 [1.0] | 25 mm [0.98] |
| 10, 15,20, 30 kg | 30 [1.18] | 32 mm [1.26] |
MT1022 Load Cell Order Information
| Description | Item No. | |
|---|---|---|
| Load cell, model no. MT1022-3kg | 1m Cable | 71201825 |
| Load cell, model no. MT1022-5kg | 1m Cable | 71201826 |
| Load cell, model no. MT1022-7kg | 1m Cable | 71201827 |
| Load cell, model no. MT1022-10kg | 1m Cable | 71207450 |
| Load cell, model no. MT1022-15kg | 1m Cable | 71201829 |
| Load cell, model no. MT1022-20kg | 1m Cable | 71201830 |
| Load cell, model no. MT1022-30kg | 1m Cable | 71207741 |
| Load cell, model no. MT1022-3kg | 3m Cable | 72208506 |
| Load cell, model no. MT1022-5kg | 3m Cable | 72208507 |
| Load cell, model no. MT1022-7kg | 3m Cable | 72208508 |
| Load cell, model no. MT1022-10kg | 3m Cable | 72208509 |
| Load cell, model no. MT1022-15kg | 3m Cable | 72208510 |
| Load cell, model no. MT1022-20kg | 3m Cable | 72208511 |
| Load cell, model no. MT1022-30kg | 3m Cable | 72208512 |
MT1022 Load Cell Cable Colours
| Colour | Function |
|---|---|
| Green | + Excitation |
| Black | – Excitation |
| Red | + Signal |
| White | – Signal |
| Yellow | + Shield |
