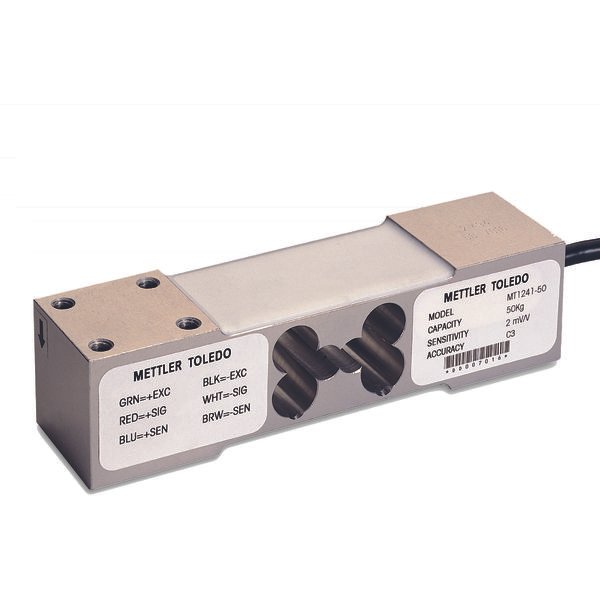

MT1241 Single Point Load Cell
The MT1241 is the ideal solution for small floor scales and hoppers. Due to the low profile the integration into any system is easy. The broad capacity range allows wide application in industrial weighing applications.
Bench and Floor Scales
MT1241 provides the best weighing performance for bench scales and smaller floor scales in its capacity range. With a low profile design, cost optimization and an attractive product appearance can be achieved.
Off-Center Compensation
One load cell can be used to support a weighing platform and, due to the off-center load compensation, the MT1241 will weigh within tolerance regardless of load application point.
Robustness
MT1241 allows 50% static overload without compromising the weighing performance. The passivated aluminium provides good corrosion resistance suitable for many industrial applications
MT1241 Load Cell Specifications
| Parameter | Unit of measure | Specification | ||||||
|---|---|---|---|---|---|---|---|---|
| Model No. | MT1241 | |||||||
| Rated capacity (R.C.) | kg (lb, nominal) | 30 (66) | 50 (110) | 100 (220) | 150 (331) | 200 (441) | 250 (551) | |
| Rated output | mV/V @R.C. | 2 ± 0.2 | ||||||
| Zero load output | %R.C. | ≤ 10 | ||||||
| Combined error 1) 2) | %R.C. | ≤ 0.016 | ||||||
| Repeatability error | %A.L. 3) | ≤ 0.01 | ||||||
| Creep, 30 minute | %A.L. | ≤ 0.0167 | ||||||
| Min. dead load output return (DR), 30 min | %A.L. | ≤ 0.0167 | ||||||
| Temperature effect on | Min. dead load output | %R.C./°C (../°F) | ≤ 0.0014 (0.0008) | |||||
| Sensitivity 2) | %A.L./°C (../°F) | ≤ 0.0007 (0.00036) | ||||||
| Temperature range | Compensated | °C (°F) | -10 ~ +40 (+14 ~+104) | |||||
| Operating | -40 ~ +65(-40 ~ +150) | |||||||
| Safe storage | -40 ~ +80(-40 ~ +176) | |||||||
| OIML / European approval 4) | OIML Cert. No. | R60/2000-NL1-03.10 | ||||||
| European Cert. No. | NMi TC5382 | |||||||
| Class | C3 | |||||||
| nmax | 3500 | |||||||
| Vmin | g | 10000 | ||||||
| PLC | 0.7 | |||||||
| Humidity symbol | None | |||||||
| Min. dead load | kg (lb) | 0 (0) | ||||||
| Z | 3500 | |||||||
| NTEP approval 4) | Number | 11-088 | ||||||
| Class | III S, III M | |||||||
| nmax | 5000 | |||||||
| Vmin | g (lb) | 3 (0.0066) | 5 (0.011) | 10 (0.022) | 15 (0.033) | 20 (0.044) | 25 (0.055) | |
| Min. dead load | kg (lb) | 0 (0) | ||||||
| ATEX approval 4) | Number, cat. 2 | KEMA 09ATEX0003 X | ||||||
| Number, cat. 3 | KEMA 09ATEX0004 X | |||||||
| Rating | II 2 G Ex ib IICT4 | |||||||
| II 2 D Ex ibD21 IP66 T135°C | ||||||||
| II 3 G Ex nA II T4 | ||||||||
| II 3 G Ex nL IIC T4 | ||||||||
| II 3 D Ex tD A22 IP66 T135°C | ||||||||
| Entity parameters | Ui/Un=20V, Ii=600mA, Pi=1.25W, Ci=5nF, Li=30μH | |||||||
| Excitation voltage | Recommended | V AC/DC | 5 ~ 15 | |||||
| Max. | 20 | |||||||
| Terminal resistance | Excitation | Ω | 410 ± 10 | |||||
| Output | 350 ± 4 | |||||||
| Insulation resistance @50VDC | MΩ | > 5000 | ||||||
| Breakdown voltage | V AC | > 500 | ||||||
| Material | Spring element | Aluminium | ||||||
| Enclosure | None | |||||||
| Cable | PVC | |||||||
| Protection | Type | Potted | ||||||
| IP Rating | IP 67 | |||||||
| NEMA rating | NEMA 6/6P | |||||||
| Load Limit | Safe | %R.C. | 150 | |||||
| Ultimate | 300 | |||||||
| Safe dynamic load | %R.C. | 70 | ||||||
| Fatigue life | cycles @R.C. | > 1000000 | ||||||
| Direction of loading | Beam | |||||||
| Deflection @ R.C., nominal | mm (in) | 0.3 (0.012) | ||||||
| Weight, nominal | kg (lb) | 1.2 (2.6) | ||||||
| Cable length | m (ft) | 2 (6.6) | ||||||
| Barometric pressure effect on zero load output | kg/kPa (lb/in.Hg) | None | ||||||
| Safe side load | %R.C. | 100 | ||||||
| Overload protection | None | |||||||
| Mounting screw | Grade | 12.9 | ||||||
| Size/thread | mm (in) | M6x1 | ||||||
| Engaged length | mm (in) | 12 (0.47) | ||||||
| Torque, nominal | N.m (ft-lb) | 10 (7.5) | ||||||
| Max. platter size | cm x cm (in x in) | 40 x 40 (16 x 16) | ||||||
| Off center load error, R76-1 | %A.L./cm (../in) | 0.0049 (0.012) | ||||||
1) Error due to the combined effect of non-linearity and hysteresis
2) Typical values only. The sum of errors due to combined error and temperature effect on sensitivity comply with the requirements of OIML R60 and NIST HB44.
3) A.L. = Applied Load
4) See certificate for complete information.

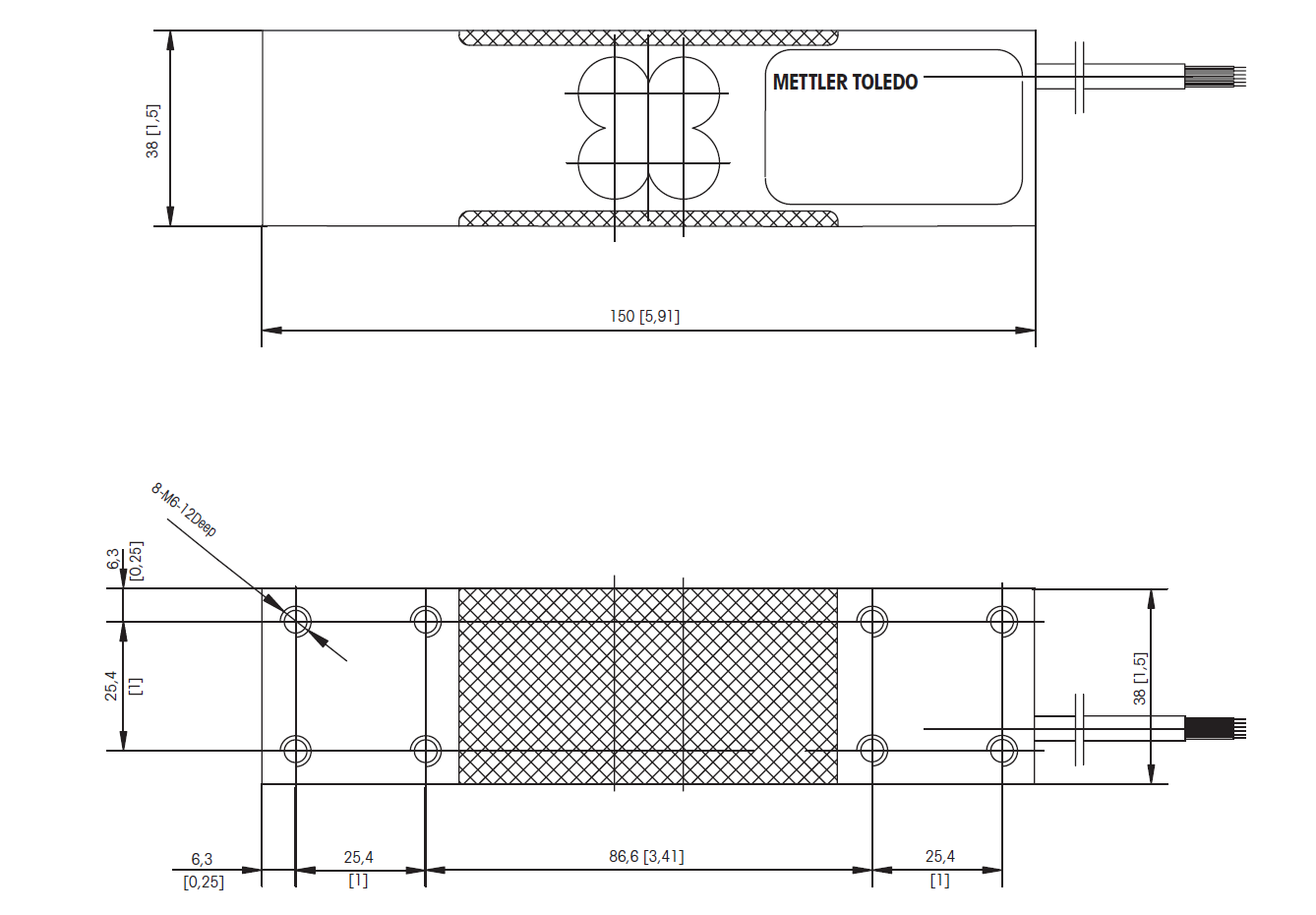

MT1241 Load Cell Dimensional Drawings mm [inch]
MT1241 Load Cell Order Information
| Description | Item No. | |
|---|---|---|
| Load cell, model no. MT1241-30kg | 2m Cable | 71207451 |
| Load cell, model no. MT1241-50kg | 2m Cable | 71207452 |
| Load cell, model no. MT1241-100kg | 2m Cable | 71207453 |
| Load cell, model no. MT1241-150kg | 2m Cable | 71201841 |
| Load cell, model no. MT1241-200kg | 2m Cable | 71201842 |
| Load cell, model no. MT1241-250kg | 2m Cable | 71207454 |
| Load cell, model no. MT1241-30kg | 6m Cable | 72208493 |
| Load cell, model no. MT1241-50kg | 6m Cable | 72208494 |
| Load cell, model no. MT1241-100kg | 6m Cable | 72208495 |
| Load cell, model no. MT1241-150kg | 6m Cable | 72208496 |
| Load cell, model no. MT1241-200kg | 6m Cable | 72208497 |
| Load cell, model no. MT1241-250kg | 6m Cable | 72208498 |
MT1241 Load Cell Cable Colours
| Colour | Function |
|---|---|
| Green | + Excitation |
| Black | – Excitation |
| Red | + Signal |
| White | – Signal |
| Blue | + Sense |
| Brown | – Sense |
