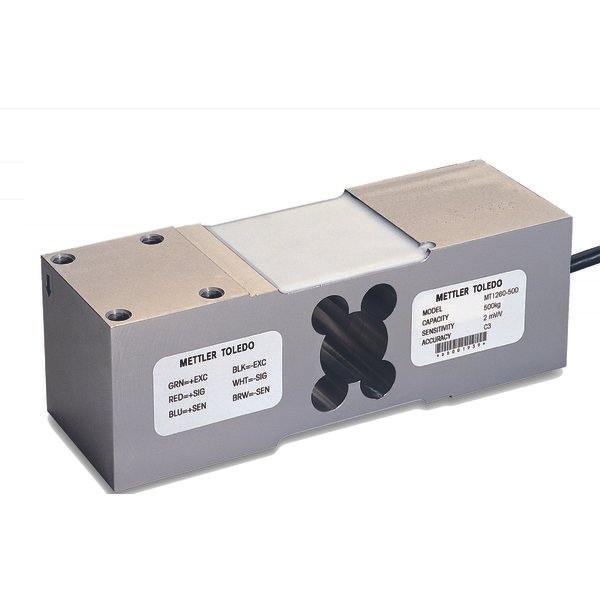

MT1260 Single Point Load Cell
The MT1260 is the ideal solution for floor scales and smaller hoppers. Due to the low profile the integration into any system is easy. The broad capacity range and large platform size allows wide useage in indu-strial weighing applications.
Floor Scale, Tank Weighing
MT1260 provides the best weighing performance for floor scales and hopper weighing in its capacity range. With a low profile design, cost optimization and an attractive product appearance can be achieved.
Off-Center Compensation
One load cell can be used to support a weighing platform and, due to the off-center load compensation, the MT1260 will weigh within tolerance regardless of load application point.
Robustness
MT1260 allows 50% static overload without compromising the weighing performance. The passivated aluminium provides good corrosion resistance suitable for many industrial applications.
| Parameter | Unit of measure | Specification | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model No. | MT1260 | ||||||||||
| Rated capacity (R.C.) | kg (lb, nominal) | 50 (110) | 75 (165) | 100 (220) | 150 (331) | 200 (441) | 250 (551) | 300 (661) | 500 (1102) | 750 (1654) | |
| Rated output | mV/V @R.C. | 2 ± 0.2 | |||||||||
| Zero load output | %R.C. | ≤ 10 | |||||||||
| Combined error 1) 2) | %R.C. | ≤ 0.016 | |||||||||
| Repeatability error | %A.L. 3) | ≤ 0.01 | |||||||||
| Creep, 30 minute | %A.L. | ≤ 0.0167 | |||||||||
| Min. dead loadoutput return (DR),30min | %A.L. | ≤ 0.0167 | |||||||||
| Temperature effect on | Min. dead loadOutput | %R.C./°C (../°F) | ≤0.0014 (0.0008) | ||||||||
| Sensitivity 2) | %A.L./°C (../°F) | ≤ 0.0007 (0.00036) | |||||||||
| Temperature range | Compensated | °C (°F) | -10 ~ +40 (+14 ~+104) | ||||||||
| Operating | -40 ~ +65(-40 ~ +150) | ||||||||||
| Safe storage | -40 ~ +80(-40 ~ +176) | ||||||||||
| OIML / European approval 4) | OIML Cert. No. | R60/2000-NL1-03.14 | |||||||||
| European Cert. No. | NMi TC5367 | ||||||||||
| Class | C3 | ||||||||||
| nmax | 3000 | ||||||||||
| Vmin | g | 8.3 | 15 | 16.7 | 25 | 33.3 | 41.7 | 50 | 83 | 125 | |
| PLC | 0.7 | ||||||||||
| Humidity symbol | None | ||||||||||
| Min. dead load | kg (lb) | 0 (0) | |||||||||
| Z | 3000 | ||||||||||
| NTEP approval 4) | Number | 11-088 | |||||||||
| Class | III S, III M | ||||||||||
| nmax | 5000 | ||||||||||
| Vmin | g (lb) | 5(0.011) | 7.5(0.017) | 10(0.022) | 15(0.033) | 20(0.044) | 25(0.055) | 30(0.066) | 50(0.11) | 70(0.17) | |
| Min. dead load | kg (lb) | 0 (0) | |||||||||
| ATEX approval 4) | Number, cat. 2 | KEMA 09ATEX0003 X | |||||||||
| Number, cat. 3 | KEMA 09ATEX0004 X | ||||||||||
| Rating | II 2 G Ex ib IICT4 | ||||||||||
| II 2 D Ex ibD21 IP66 T135°C | |||||||||||
| II 3 G Ex nA II T4 | |||||||||||
| II 3 G Ex nL IIC T4 | |||||||||||
| II 3 D Ex tD A22 IP66 T135°C | |||||||||||
| Entity parameters | Ui/Un=20V, Ii=600mA, Pi=1.25W, Ci=5nF, Li=30μH | ||||||||||
| Excitation voltage | Recommended | V AC/DC | 5 ~ 15 | ||||||||
| Max. | 20 | ||||||||||
| Terminal resistance | Excitation | Ω | 410 ± 10 | ||||||||
| Output | 350 ± 4 | ||||||||||
| Insulation resistance @50VDC | MΩ | > 5000 | |||||||||
| Breakdown voltage | V AC | > 500 | |||||||||
| Material | Spring element | Aluminium | |||||||||
| Enclosure | None | ||||||||||
| Cable | PVC | ||||||||||
| Protection | Type | Potted | |||||||||
| IPrating | IP 67 | ||||||||||
| NEMA rating | NEMA 6/6P | ||||||||||
| Load limit | Safe | %R.C. | 150 | ||||||||
| Ultimate | 300 | ||||||||||
| Safe dynamic load | %R.C. | 70 | |||||||||
| Fatigue life | cycles @R.C. | > 1000000 | |||||||||
| Direction of loading | Beam | ||||||||||
| Deflection @ R.C., nominal | mm (in) | 0.3 (0.012) | |||||||||
| Weight, nominal | kg (lb) | 1.9 (4.2) | |||||||||
| Cable length | m (ft) | 2 (6.6) | |||||||||
| Barometric pressure effect on zero load output | kg/kPa (lb/in.Hg) | None | |||||||||
| Safe side load | %R.C. | 100 | |||||||||
| Overload protection | None | ||||||||||
| Mounting screw | Grade | 12.9 | |||||||||
| Size/thread | mm (in) | M8x1.25 | |||||||||
| Engaged length | mm (in) | 20 (0.79) | |||||||||
| Torque, nominal | N.m (ft-lb) | 25 (18) | |||||||||
| Max. platter size | cm x cm (in x in) | 60 x 60 (24 x 24) | |||||||||
| Offcenter load error,R76-1 | %A.L./cm (../in) | 0.0032 (0.008) | |||||||||
1) Error due to the combined effect of non-linearity and hysteresis
2) Typical values only. The sum of errors due to combined error and temperature effect on sensitivity comply with the requirements of OIML R60 and NIST HB44.
3) A.L. = Applied Load
4) See certificate for complete information.

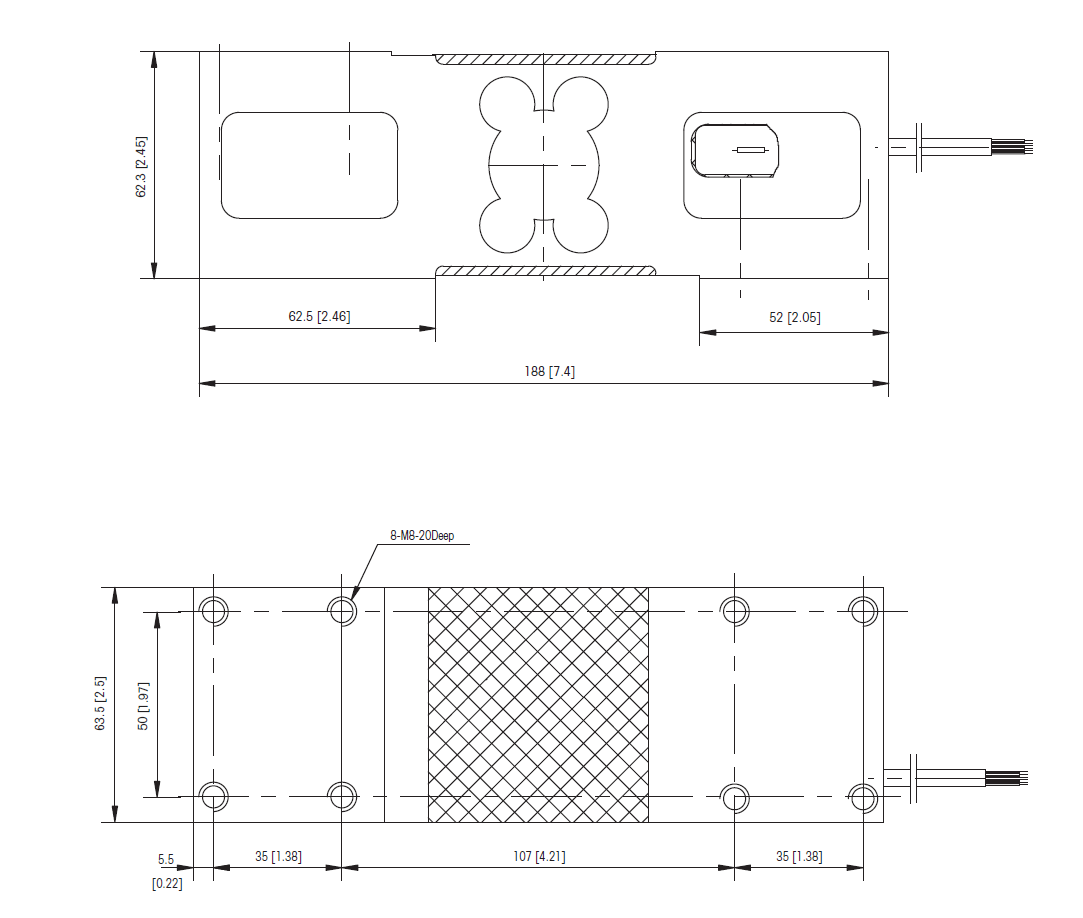

MT1260 Load Cell Dimensional Drawings mm [inch]
MT1260 Load Cell Order Information
| Description | Item No. | |
|---|---|---|
| Load cell, model no. MT1260-50kg | 2m Cable | 71201844 |
| Load cell, model no. MT1260-75kg | 2m Cable | 71201845 |
| Load cell, model no. MT1260-100kg | 2m Cable | 71201846 |
| Load cell, model no. MT1260-150kg | 2m Cable | 71201847 |
| Load cell, model no. MT1260-200kg | 2m Cable | 71201848 |
| Load cell, model no. MT1260-250kg | 2m Cable | 71201849 |
| Load cell, model no. MT1260-300kg | 2m Cable | 71207455 |
| Load cell, model no. MT1260-500kg | 2m Cable | 71207456 |
| Load cell, model no. MT1260-750kg | 2m Cable | 71209936 |
| Load cell, model no. MT1260-50kg | 6m Cable | 72208484 |
| Load cell, model no. MT1260-75kg | 6m Cable | 72208485 |
| Load cell, model no. MT1260-100kg | 6m Cable | 72208486 |
| Load cell, model no. MT1260-150kg | 6m Cable | 72208487 |
| Load cell, model no. MT1260-200kg | 6m Cable | 72208488 |
| Load cell, model no. MT1260-250kg | 6m Cable | 72208489 |
| Load cell, model no. MT1260-300kg | 6m Cable | 72208490 |
| Load cell, model no. MT1260-500kg | 6m Cable | 72208491 |
| Load cell, model no. MT1260-750kg | 6m Cable | 72208492 |
| Bolded entries are stocked |
MT1260 Load Cell Cable Colours
| Colour | Function |
|---|---|
| Green | + Excitation |
| Black | – Excitation |
| Red | + Signal |
| White | – Signal |
| Blue | + Sense |
| Brown | – Sense |
| Yellow | + Shield |
