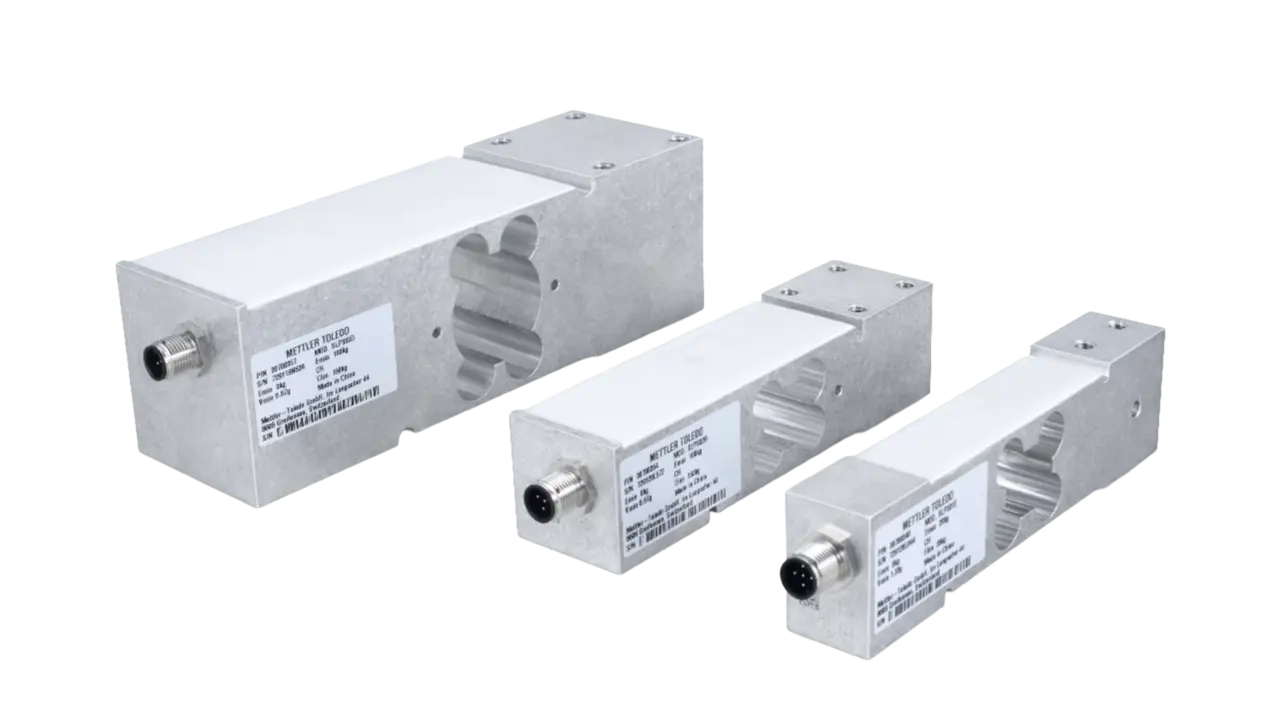

SLP33xD-IOL Smart Load Cell
Integrated Connectivity
PLC connectivity is integrated in the load cell; no additional device is required. This saves space in the machine and/or in the control cabinet and reduces complexity, so that you can streamline sensor integration without expert knowledge.
High Precision
Load cells are available with OIML C6 and C3 class. TwinCalTM calibration technology supports loading and unloading applications. Onboard filtering and adjustment for temperature changes enable precise weighing results.
High-Speed Weighing
The load cell provides 200 updates per second (200 Hz), which supports highspeed weighing applications. Machine designs can be optimized for high throughput and increased productivity.
Advanced Intelligence
Condition monitoring and Smart5TM alarms ensure the system is performing as expected and allow quick reaction in case of issues. Achieve a new level of confidence in your machine performance.
Technical Specifications
| Parameter | unit of measure | Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model No. | SLP331D-IOL | SLP332D-IOL | SLP333D-IOL | ||||||||||||||
| Rated Capacity (R.C.) | kg(lb) | 10(22) | 20(44) | 30(66) | 50(110) | 100(220) | 30(66) | 50(110) | 100(220) | 200(440) | 50(110) | 100(220) | 150(330) | 200(440) | 300(660) | 500(1100) | |
| Noisefree Resolution | C3: 100 000/ C6: 300000 | ||||||||||||||||
| Zero load Output | %R.C. | < 1 | |||||||||||||||
| Combined Error (1)(2) | %R.C. | C3/IIIM n:5: ≤ 0.018 / C6/IIIM n:10: ≤ 0.012 | |||||||||||||||
| Repeatability Error | %A.L (3) | C3/IIIM n:5: ≤ 0.01 / C6/IIIM n:10: ≤ 0.005 | |||||||||||||||
| Creep, 30 minute | %A.L. | C3/IIIM n:5: ≤ 0.02 / C6/IIIM n:10: ≤ 0.01 | |||||||||||||||
| Min. Dead Load Output Return(DR), 30 min. | %A.L. | C3/IIIM n:5: ≤ 0.0167 / C6/IIIM n:10: ≤ 0.0083 | |||||||||||||||
| Temperature Effect on | Min. Dead load Output | %R.C./°C (../°F) | C3/IIIMn:5: ≤ 0.00107(0.0006) / C6/IIIM n:10: ≤ 0.00064 (0.0004) | ||||||||||||||
| Sensitivity(2) | %A.L./°C (../°F) | C3/IIIM n:5: ≤ 0.0013 (0.0006) / C6/IIIM n:10: ≤ 0.00067(0.0003) | |||||||||||||||
| Temperature Range | Compensated | °C (°F) | -10 ~ +40 (+14 ~ +104) | ||||||||||||||
| Operating | -30 ~ +65(-22 ~ +150) | ||||||||||||||||
| Safe Storage | -40 ~ +80(-40 ~ +176) | ||||||||||||||||
| OIML /EuropeanApproval4) | Number, OIML / Europe | R60/2017-A-NL1-23.23 / NMi TC12619 | |||||||||||||||
| Class | C3 / C6 | ||||||||||||||||
| nmax | 3000 / 6000 | ||||||||||||||||
| Y | 15000 / 25000 | ||||||||||||||||
| PLC | 0.8 | ||||||||||||||||
| Humidity Symbol | none | ||||||||||||||||
| Min. dead load | kg | 0 | |||||||||||||||
| Z | 3000 / 6000 | ||||||||||||||||
| Barometric PressureEffect | none | ||||||||||||||||
| NTEPApproval4) | Number | 882849 | |||||||||||||||
| Accuracy Class | III | ||||||||||||||||
| nmax | 9000 / 6000 | ||||||||||||||||
| Vmin | g | 0.4 | 0.8 | 1.2 | 2.0 | 4.0 | 1.2 | 2.0 | 4.0 | 8.0 | 2.0 | 4.0 | 6.0 | 8.0 | 12.0 | 20.0 | |
| Min. dead load | g | 0 | |||||||||||||||
| ATEXApproval (4) | Number, cat. 2 | in preparation | |||||||||||||||
| IECExApproval (4) | Rating | in preparation | |||||||||||||||
| Factory MutualApproval(4) | Number, USA / Canada | in preparation | |||||||||||||||
| Insulation Resistance @50VDC | MΩ | ≥ 2000 (6) | |||||||||||||||
| Breakdown Voltage | V AC | ≥ 500 (6) | |||||||||||||||
| Supply Voltage Non-regulated | Range (nominal) | V DC | 10 ~ 30 | ||||||||||||||
| Typical | 12 / 24 | ||||||||||||||||
| Supply Current | Max. | mA | 60 (6) | ||||||||||||||
| Typical | 40 / 20 | ||||||||||||||||
| Overvoltage Protection | Max. Tested (IEEE4-95) | A | 2000 no outdoor lightning conditions (6) | ||||||||||||||
| Model No. | SLP331D-IOL | SLP332D-IOL | SLP333D-IOL | ||||||||||||||
| Rated Capacity (R.C.) | kg (lb, nominal) | 10(22) | 20(44) | 30(66) | 50(110) | 100(220) | 30(66) | 50(110) | 100(220) | 200(440) | 50(110) | 100(220) | 150(330) | 200(440) | 300(660) | 500(1100) | |
| Warm-up Time from Cold Start | minutes | 5 | |||||||||||||||
| Communications | Type | IO-Link 1.1 | |||||||||||||||
| Protocol | COM3 | ||||||||||||||||
| Baud rate | up to 230.4 kbit/sec | ||||||||||||||||
| Condition monitoring | Smart5™, integrated LED on load cell | ||||||||||||||||
| Effective System Update Rate, for one cell,38400 baud rate | Hz | up to 200 | |||||||||||||||
| ESD rating | kV | 8 (6) | |||||||||||||||
| Span Stability, typical (peak to peak in 1 min) | ppm | < 5 | |||||||||||||||
| Immunity OIML R60 | V/m | 10 | |||||||||||||||
| Material Spring Element | Aluminum, anodized | ||||||||||||||||
| Enclosure | Silicon potting | ||||||||||||||||
| Protection | Type | Silicon potting | |||||||||||||||
| IP Rating | IP67 | ||||||||||||||||
| NEMA Rating | NEMA 6/6P | ||||||||||||||||
| Overload Protection | none | ||||||||||||||||
| Load Limit | Safe | %R.C. | 150 | ||||||||||||||
| Ultimate | 300 | ||||||||||||||||
| Safe Side Load | %R.C. | 100 | |||||||||||||||
| Safe Dynamic Load | %R.C. | 70 | |||||||||||||||
| Fatigue Life | cycles @R.C. | > 1,000,000 | |||||||||||||||
| Direction of Loading | beam | ||||||||||||||||
| Deflection @ R.C., nominal | mm (in) | <0.35 (0.014) | <0.25 (0.01) | <0.3 (0.012) | |||||||||||||
| Max. platter size | mm (in) | 400 x 400(15.75 x 15.75) | 600 x 600(23.62 x 23.62) | ||||||||||||||
| Off-center load error, R76-1 | %A.L. / cm (%A.L. / in ) | 0.0049(0.012) | 0.0032(0.008) | ||||||||||||||
| Weight, nominal | kg (lb) | 0.31 (0.7) | 0.91 (2) | ||||||||||||||
| Cable | M12 industrial, 5-pin, shielded recommeded | ||||||||||||||||
| Cable length, max. | m (ft) | 20 (66) | |||||||||||||||
| Connector, load cell | M12 industrial, 5-pin, female ( Class A ) | ||||||||||||||||
| Mounting Screw | Grade | 8.8 or higher | |||||||||||||||
| Size/thread | mm (in) | M6 | M8 | ||||||||||||||
| Torque,nominal | Nm (ft-lb) | 10 (7.5) | 25 (18) | ||||||||||||||
(1) Error due to the combined effect of non-linearity and hysteresis
(2) Typical values only. The sum of errors due to Combined Error and Temperature Effect on Sensitivity comply with the requirements of OIML R60 and NIST HB44.
(3) A.L. = Applied Load
(4) See certificate for complete information.
(5) Calculate the scale’s minimum increment size by multiplying this value by the square root of the number of load cells. For non Legal-For-Trade Applications
(6) Values are not finalized, subject to change
Load Cell Dimensions mm [in]

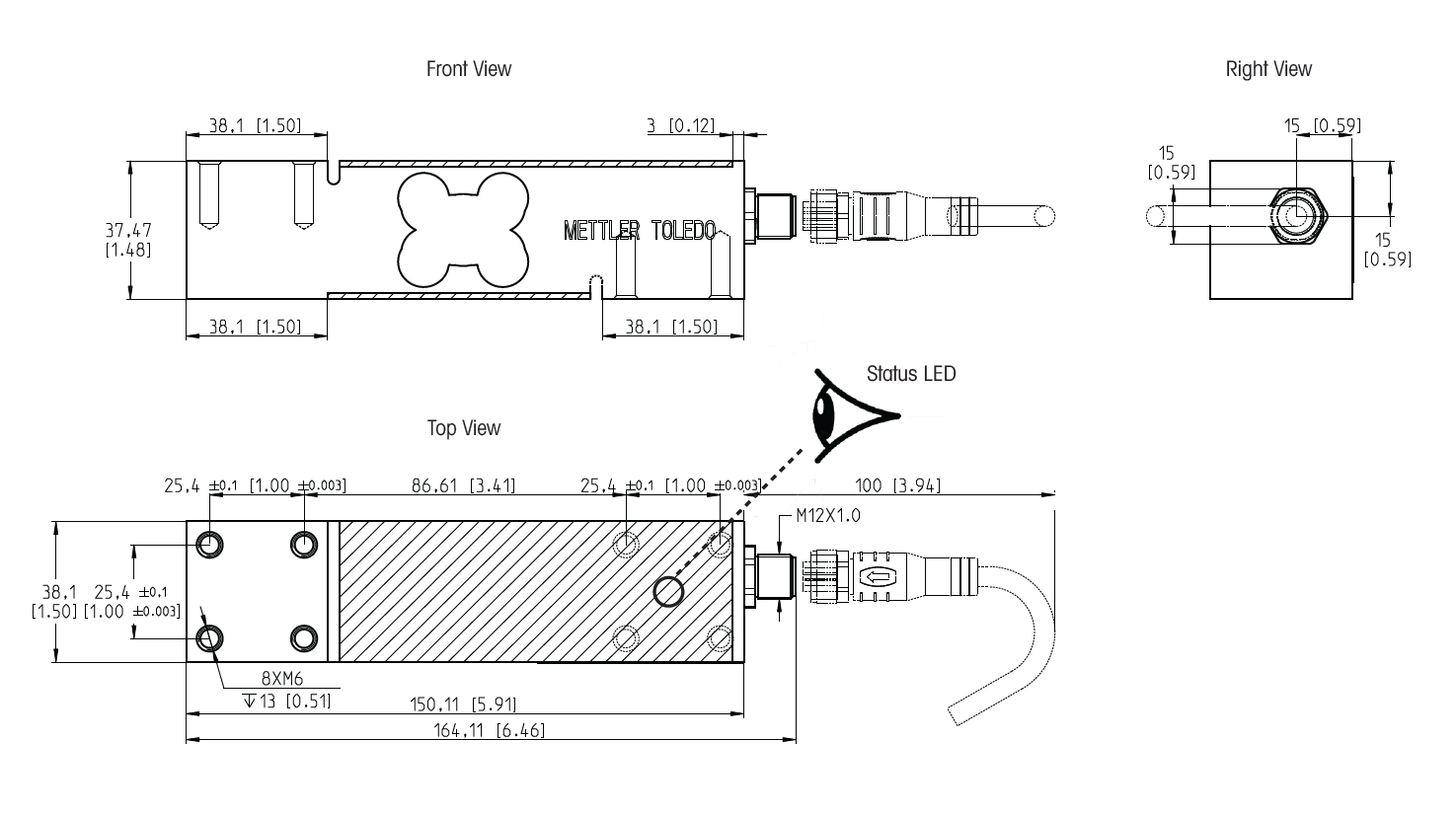

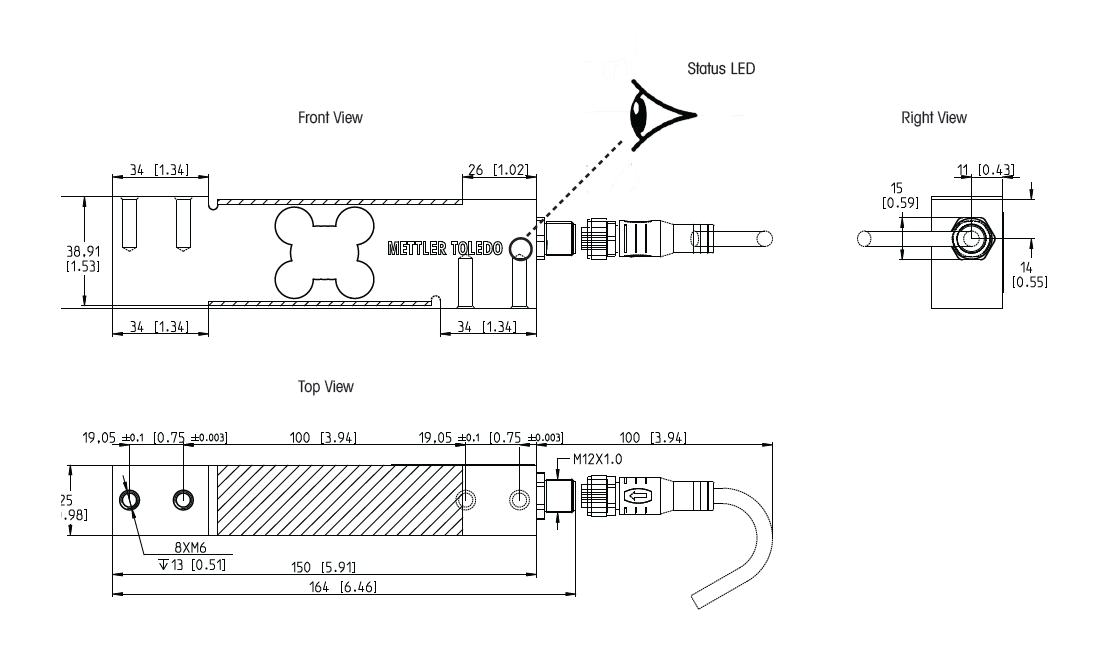

SLP332D Smart Load Cell Mounting Dimensions

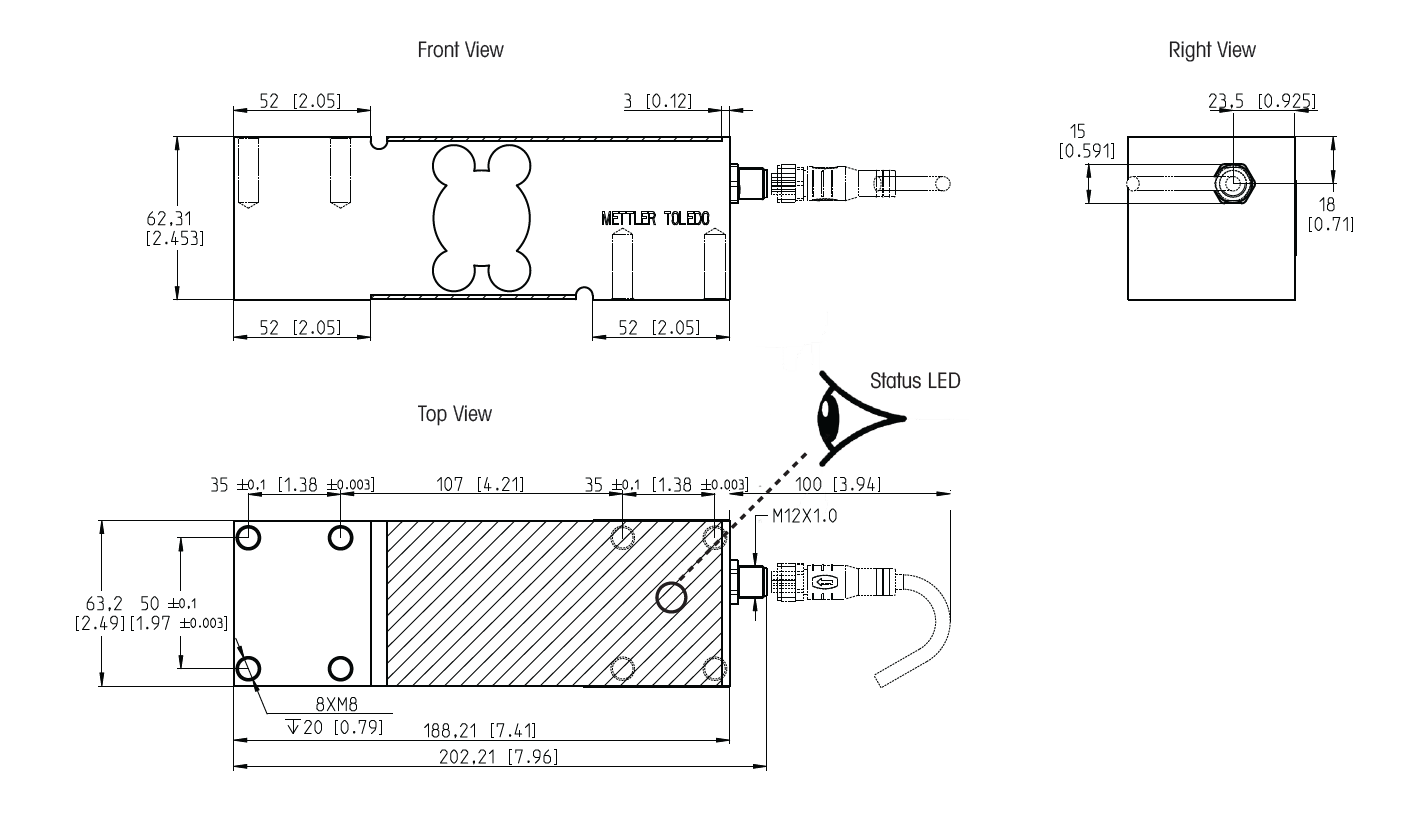

SLP333D Smart Load Cell Mounting Dimensions
SLP33xD-IOL Smart Load Cell Connector Pin Definition
| M12 Connector | Pinning | Signal |
|---|---|---|
 |
1 | L+ |
| 2 | DI/DQ | |
| 3 | L- | |
| 4 | C/Q | |
| 5 | Not used |
Order Information
| Rated Capacity | SLP331D-IOL | SLP332D-IOL | SLP333D-IOL | |||
|---|---|---|---|---|---|---|
| C3 | C6 | C3 | C6 | C3 | C6 | |
| 10 kg / 22 lb | 30801836 | 30786457 | – | – | – | – |
| 20 kg / 44 lb | 30801837 | 30786458 | – | – | – | – |
| 30 kg / 66 lb | 30801838 | 30786459 | 30801841 | 30786462 | – | – |
| 50 kg / 110 lb | 30801839 | 30786460 | 30801842 | 30786463 | 30801830 | 30786466 |
| 100 kg / 220 lb | 30801840 | 30786461 | 30801843 | 30786464 | 30801831 | 30786467 |
| 150 kg / 330 lb | – | – | – | – | 30801832 | 30786468 |
| 200 kg / 440lb | – | – | 30801844 | 30786465 | 30801833 | 30786469 |
| 300 kg / 660 lb | – | – | – | – | 30801834 | 30786470 |
| 500 kg / 1100 lb | – | – | – | – | 30801835 | 30786471 |
