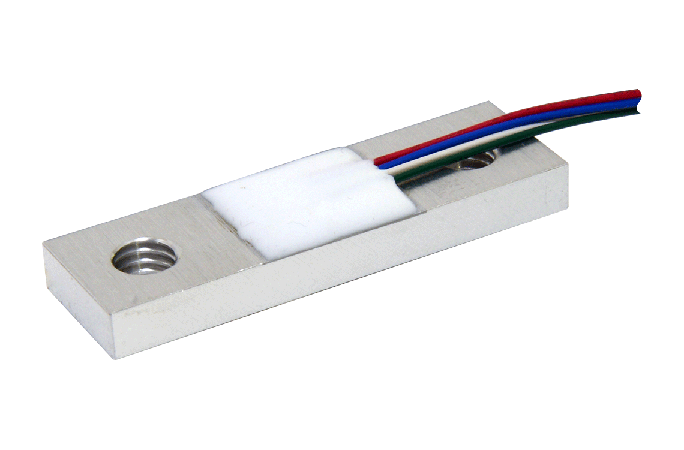

CF054 Series Force Sensor
Features
- Aluminum roberval method sensor
- Full bridge type
|
Rated capacity
|
0.294 kN{30 kgf}～1.961 kN{200 kgf}
|
|
Safe overload
|
150% R.C.
|
|
Ultimate overload
|
200% R.C.
|
|
Rated output
|
1.23 mV/V±0.19 mV/V
|
|
Non-linearity
|
2.0% R.O.
|
|
Hysteresis
|
2.0% R.O.
|
|
Excitation, recommended
|
10 V or less
|
|
Excitation, maximum
|
12 V
|
|
Zero balance
|
±0.25 mV/V
|
|
Input resistance
|
700 Ω±140 Ω
|
|
Output resistance
|
700 Ω±140 Ω
|
|
Insulation resistance
|
1,000 MΩ or more (DC50 V) (between bridge and main body)
|
|
Temp. range, compensated
|
-10℃ ~ 50℃
|
|
Temp. range, safe
|
-30℃ ~ 80℃
|
|
Temp. effect on zero
|
±1% R.O./10℃
|
|
Temp. effect on output
|
±1% LOAD/10℃
|
|
Lead wire
|
AWG30, 150 mm directly attached, cable end is separated
|
|
Class of protection
|
IP00
|
|
Material of element
|
Alluminium alloy
|
|
Durability
|
1,000,000 times with rated load applied.
|
|
Parts No.
|
Rated capacity
|
|---|---|
|
CF054-30K
|
0.294 kN {30 kgf}
|
|
CF054-50K
|
0.490 N {50 kgf}
|
|
CF054-60K
|
0.588 N {60 kgf}
|
|
CF054-100K
|
0.981 N {100 kgf}
|
|
CF054-200K
|
1.961 N {200 kgf}
|
