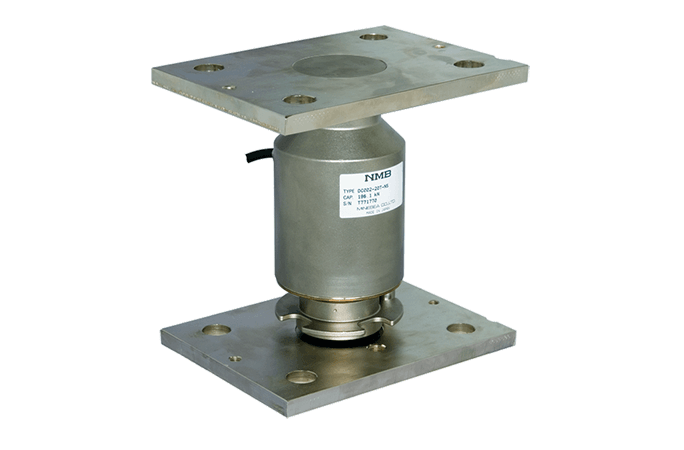

DC002 Series Compression Measurement for Industrial Weighing Systems
Features
- Excellent noise tolerance
- High precision measurement can be performed by the excellent temperature compensation
- Decrease the error factor with the use of an amplifier
|
OIML accuracy class
|
OIML R60 C6
|
|
Maximum scale interval
|
6,000
|
|
Rated capacity
|
10 t ~ 40 t
|
|
Minimum detected scale (Vmin)
|
0.625 kg ~ 2.5 kg
|
|
Safe overload
|
150% R.C.
|
|
Ultimated overload
|
200% R.C.
|
|
Rated output
|
1,000,000 count ±500 count
|
|
Non-linearity
|
0.012% R.O.
|
|
Hysteresis
|
0.012% R.O.
|
|
Repeatability
|
0.010% R.O.
|
|
Creep
|
0.008% R.O./30 min
|
|
Zero return
|
0.008% R.O./30 min
|
|
Power supply voltage
|
DC7.5 V ~ DC15 V
|
|
Power consumption
|
DC35 mA (at DC12 V of power supply)
|
|
Insulated resistance
|
100 MΩ or more (DC50 V)
|
|
Temp. range, compensated
|
－10℃ ~ 40℃
|
|
Temp. range, safe
|
－20℃ ~ 70℃
|
|
Temp. effect on zero balance
|
0.014% R.O./10℃
|
|
Temp. effect on output
|
0.010% LOAD/10℃
|
|
Digital output Signal
|
Differential signal (Conforming to RS-485)
|
|
Data output frequency
|
160 times/s at maximum
|
|
Baud rate
|
57,600 bps
|
|
Data bit length
|
7 bit
|
|
Parity bit
|
Odd
|
|
Stop bit
|
1 bit
|
|
Terminator
|
CR
|
|
Transmission method
|
Half duplex
|
|
Synchronous method
|
Start-stop synchronization
|
|
Address
|
0 ~ 9
|
|
No. of Connectable unit
|
Up to 8 units
|
|
Transmission data
|
ASCII Code
|
|
Standard function
|
Digital filter, Stabilization filter, A/Z, A/Z OFF
|
|
Cable
|
φ7.0, 4-cores shielded 12 m cable and cable end is separated. (DC002-40T: 15 m cable)
|
|
Protection class
|
IP68 or equivalent
|
|
Material of element
|
Alloy steel
|
|
Material of cover
|
Stainless steel (lost wax)
|
|
Allowable horizontal moving length
|
10 mm (Please set the stopper of truck scale within 5 mm.)
Recomended movable range is 2 mm ~ 3 mm. |
|
Accessory
|
Guide ring, Inspection data sheet
|
|
Parts No.
|
Rated capacity
|
Minimum detected
scale (Vmin) |
Natural frequency
|
Rated displacment
|
Weight
(Approx.) |
|---|---|---|---|---|---|
|
DC002-10T
|
10 t
|
0.625 kg
|
3 900 Hz
|
0.2 mm
|
4.5 kg
|
|
DC002-20T
|
20 t
|
1.25 kg
|
5 500 Hz
|
0.2 mm
|
4.5 kg
|
|
DC002-25T
|
25 t
|
1.563 kg
|
6 000 Hz
|
0.2 mm
|
4.5 kg
|
|
DC002-30T
|
30 t
|
1.875 kg
|
6 700 Hz
|
0.2 mm
|
4.5 kg
|
|
DC002-40T
|
40 t
|
2.5 kg
|
5 600 Hz
|
0.2 mm
|
6.5 kg
|
