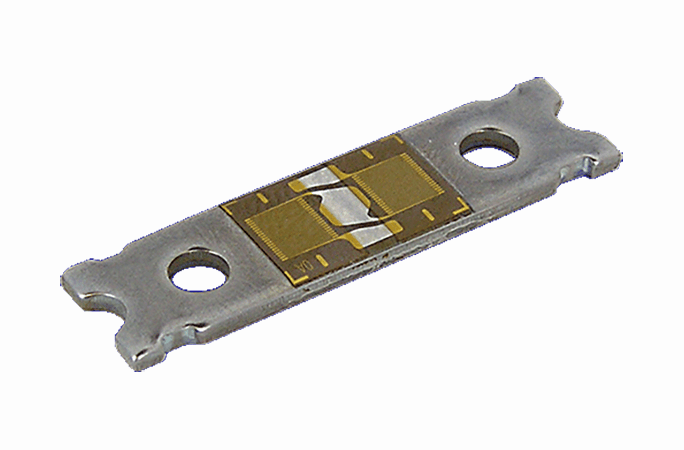

FSA Series Force Sensor
Features
- Employs a stainless steel plate
|
Rated capacity
|
44.48 N{10 lb}, 88.96 N{20 lb}, 177.9 N{40 lb}
|
|
Safe overload
|
150% R.C.
|
|
Ultimate overload
|
250% R.C.
|
|
Rated output
|
0.9 mV/V±0.135 mV/V~2 mV/V±0.3 mV/V (See below table)
|
|
Non-linearity
|
0.15% R.O.
|
|
Hysteresis
|
0.15% R.O.
|
|
Repeatability
|
0.05% R.O.
|
|
Creep
|
0.1% R.O./20 min
|
|
Creep recovery
|
0.1% R.O./20 min
|
|
Excitation, recommended
|
10 V or less
|
|
Excitation, maximum
|
12 V
|
|
Insulation resistance
|
5,000 MΩ or more (DC50 V) (between bridge and main body)
|
|
Temp. range, compensated
|
-10℃ ~ 50℃
|
|
Temp. range, safe
|
-40℃ ~ 65℃
|
|
Temp. effect on zero
|
0.108% R.O./10℃
|
|
Temp. effect on output
|
0.36% LOAD/10 ℃
|
|
Class of protection
|
IP00 or equivalent
|
|
Material of element
|
Stainless steel
|
|
Durability
|
1,000,000 times with rated load applied.
|
|
Parts No.
|
Rated capacity
|
Rated output (mV/V)
|
Weight
(Approx.) |
|---|---|---|---|
|
FSA-5L
|
22.24 N {5 lb}
|
0.9±0.135
|
0.6 g
|
|
FSA-10L
|
44.48 N {10 lb}
|
0.9±0.135
|
1.3 g
|
|
FSA-20L
|
88.96 N {20 lb}
|
0.7±0.105
|
2.1 g
|
|
FSA-40L
|
177.9 N {40 lb}
|
1±0.15
|
2.6 g
|
|
FSA-5L-F
|
22.24 N {5 lb}
|
1.8±0.27
|
0.6 g
|
|
FSA-10L-F
|
44.48 N {10 lb}
|
1.8±0.27
|
1.3 g
|
|
FSA-20L-F
|
88.96 N {20 lb}
|
1.4±0.21
|
2.1 g
|
|
FSA-40L-F
|
177.9 N {40 lb}
|
2±0.3
|
2.6 g
|
