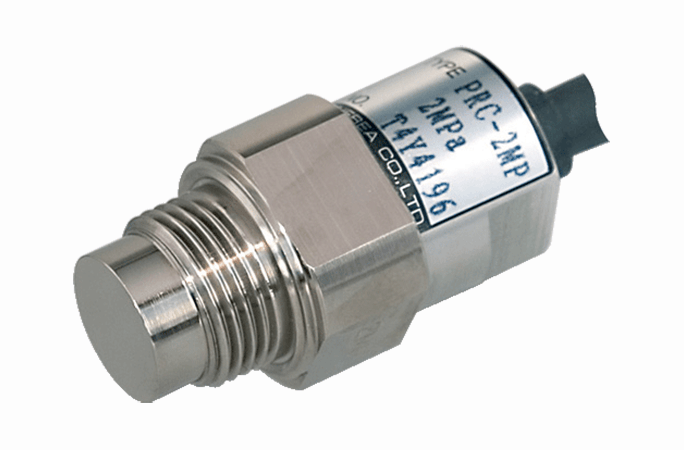

PRC Series Strain Gauge-Type Pressure Transducer
Features
- High response type with flash diaphragm
- Compact size, easy mounting or detaching
|
Rated capacity
|
1 MPa ~ 100 MPa
|
|
Safe overload
|
150% R.C.
|
|
Ultimate overload
|
300% R.C.
|
|
Rated output
|
1.5 mV/V±0.15 mV/V
(PRC-1MP: 1 mV/V (+0.2, -0.1) mV/V) |
|
Non-linearity
|
0.5% R.O.
|
|
Hysteresis
|
0.5% R.O.
|
|
Repeatability
|
0.5% R.O.
|
|
Excitation, recommended
|
≤3 V
|
|
Excitation, maximum
|
6 V
|
|
Zero balance
|
±0.225 mV/V (PRC-1MP: ±0.25 mV/V)
|
|
Input resistance
|
120 Ω±1.2 Ω
|
|
Output resistance
|
120 Ω±1.2 Ω
|
|
Insulation resistance
|
≥1,000 MΩ (DC 50 V) (between bridge and main body)
|
|
Temp. range, compensated
|
-10 ℃ ~ 50 ℃
|
|
Temp. range, safe
|
-10 ℃ ~ 75 ℃
|
|
Temp. effect on zero
|
0.8% R.O./10 ℃
|
|
Temp. effect on output
|
0.8% LOAD/10 ℃
|
|
Cable
|
φ6.3, 4-cores 30 cm cable directly attached with NDI-7P-J (jack) at the cable end
Connector type: PRC03-32A10-7F10.5 |
|
Class of protection
|
IP64 or equivalent
|
|
Material of element
|
Stainless steel
|
|
Mounting screw
|
G3/8{PF}
|
|
Weight
|
Approx. 120 g
|
