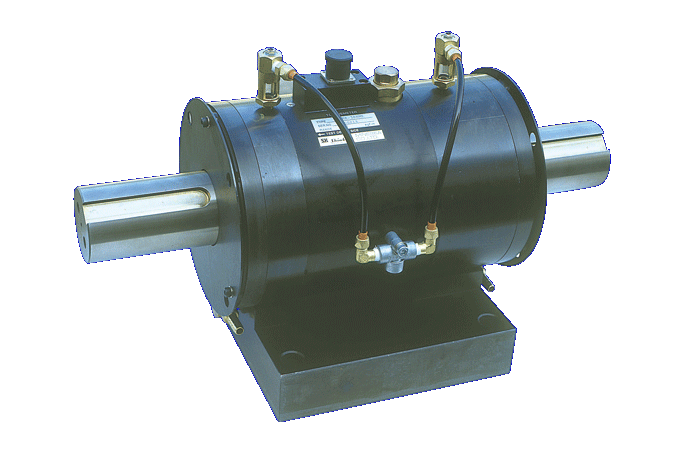

TMNR-ME Series Shaft Style Rotary Transformer Method
Features
- Measures torque from geostationary axis to high-speed spindle by double bearing adoption
- Possible to use for testing and instrument control, not just torque measurement
- Horsepower measurement for motors can be performed by installing a rotation detector
|
Rated capacity
|
±500 N･m~±5 kN･m
|
|
Safe overload
|
120% R.C.
|
|
Ultimate overload
|
200% R.C.
|
|
Rated output
|
1.6 mV/V±0.32 mV/V
|
|
Accuracy
|
±0.2% R.O. (In case of combination with Minebea’s Transmitter CSA-561B) (Linearity, hysteresis and repeatability are included.)
|
|
Excitation, recommended
|
4 VAC
|
|
Insulation resistance
|
500 M-ohm or more (DC50 V) (between bridge and main body)
|
|
Temp. range, safe
|
0 ℃ ~ 90 ℃
|
|
Temp. effect on zero
|
0.1% R.O./10 ℃
|
|
Temp. effect on output
|
0.1% LOAD/10 ℃
|
|
Maximum rotation
|
TMNR-500NME~2KNME: 10,000 rpm
TMNR-3KNME: 8,000 rpm TMNR-5KNME: 6,000 rpm (Max. rotation is 3,000 rpm for the grease lubrication) |
|
Zero shift by rotation
|
0.2% R.O.
|
|
Temperature rise by rotation
|
40 ℃ or less at the maximum rotation (grease lubrication)
Double bearing side 60 ℃, Single bearing side 40 ℃ or less at the maximum rotation (droping lubrication) |
|
Cable
|
φ10, 4 -cores shielded cable (model : CAC-160-※M) with the connector at the both ends.
(Cable is specified from 10 m, 20 m or 30 m) |
|
Connector Part No.
|
TC1108-12A10-7M10.0
PRC03-12A10-7M10.5 |
|
Class of protection
|
IP40 or equivalent
|
|
Gear for rotation detector
|
S45C black coated
TMNR-500NME ~ 3KNME: 60-tooth, module 1, tooth width 10 mm TMNR-5KNME: 120-tooth, module 1, tooth width 10 mm |
|
Part Number
|
Rated Capacity
|
Weight (Approx.)
|
|---|---|---|
|
TMNR-500NME
|
500 N･m
|
40 kg
|
|
TMNR-1KNME
|
1 kN･m
|
40 kg
|
|
TMNR-2KNME
|
2 kN･m
|
40 kg
|
|
TMNR-3KNME
|
3 kN･m
|
68 kg
|
|
TMNR-5KNME
|
5 kN･m
|
86 kg
|
