MINEBEA / TMRS Series

MINEBEA / TMRS Series

Category:
Tag:
브랜드:

설명

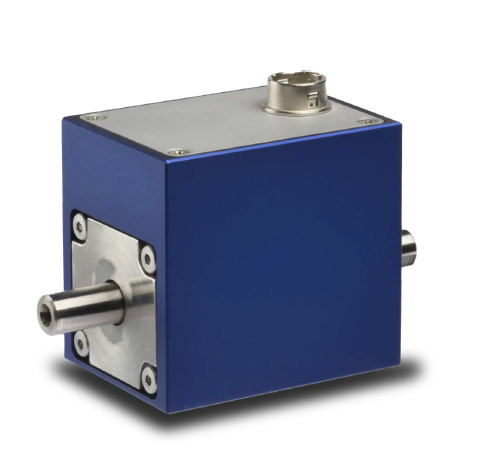

TMRS Series Optical Trasmission Torque Transducer

Features
  • High zero stability and reduced rotational zero movement
  • Net zero travel at 25,000rpm is 0.56% R.O.
  • Compact and lightweight design
  • Ultimate overload 500%F.S.
  • Fast response 6kHz (sampling period 60ksp)
  • A/Z function performs zero point correction
Rated Capacity ±0.5Nm
Safe Overload 500 %R.C.
Measurement Accuracy ±0.03 %R.O. (including linearity, hysteresis and repeatability)
Power Supply DC24V±15%
Power Consumption 0.2 A (max.)
Output Range ±10V, built-in amplifier, voltage output
Pulse Output 4-pulse output per revolution/rotation Open collector output Rated DC30V 10mA
Temp. Range (safe) -20 °C to 60 °C
Temp. Effect on Zero 0.1 %R.O./10 °C
Temp. Effect on Output 0.1 %LOAD/10 °C
Maximum Rotation 25,000 rpm
Inertia Moment 1.46 kg･mm2
Torsional Rigidity 236 N･m/rad
Torsional Peculiar Pitch 5.01 kHz
Safe Bending Load Accuracy 50N
Safe Thrust Load Accuracy 5N
Casing size (W x H x D) 54 x 50 x 40mm (excluding protruding parts)
Weight Approx. 240g
