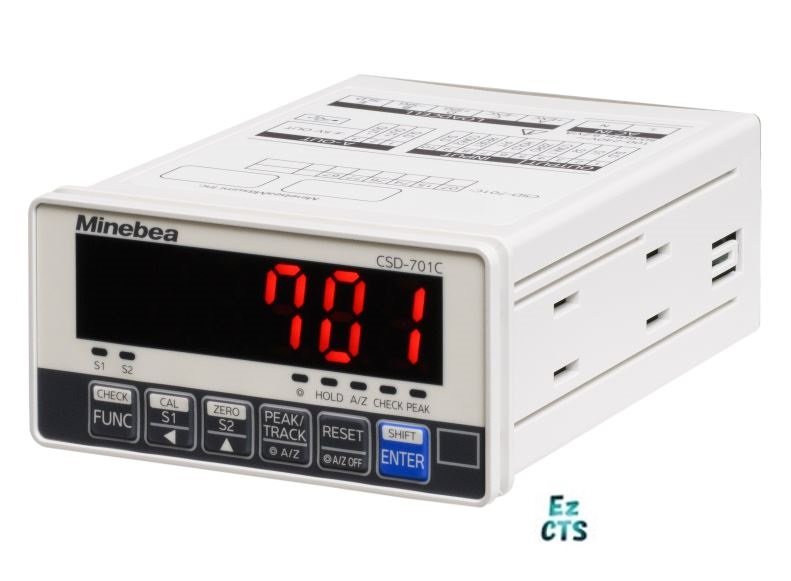

Digital Indicator CSD-701C
Features
・Compact size 48 mm x 96 mm
・Peak Hold funciton is available as an option.
・Up to 4 strain gage transducers may be connected.
・BCD output as an option.
・Protection grade : IP65 equivalent
・Additional USB interface, EzCTS (sold separately) support possible
|
Specification name |
Specification contents |
|---|---|
| Bridge power supply | DC5 V±0.25 V within 60 mA (changeable to DC2.5 V） |
| Input range | F.S. setting is available with the input range from －3.1 mV/V to 3.1 mV/V |
| Output range | DC±5 V Load resistance is 5 kΩor more. (F.S. setting is available by function) |
| Output times | 100 times/s(Changeable to 10 times/s or 20 times/s or 50 times/s) |
| Output resolution | 1/12 000 and above |
| Zero adjustment range | －2.5 mV/V～2.5 mV/V |
| Non-linearity | Display 0.02 %F.S.、Output 0.04%F.S. |
| Temperature efficient | Zero ± 0.2 μV/℃、Sensitivity ± 0.001 5 %F.S./℃ (When the calibration is made at 0.2 μV/d or more of the input sensitivity.) |
| Input noice | ± 0.2 μVp−p or less (At the default setting of all filter.) |
| Digital low pass filter | 0.1 Hz ~ 10 Hz (digital, adjustable in 0.1 Hz increments) |
| A/D sampling speed | 100 times/s (Changeable to 10, 50, 100 times/s.) |
| Display range | －99 999 ~ 99 999 |
| Display times | 4 times/s (Changeable to 20 times/s or 50 times/s or 100 times/s ) |
| Decimal point display | Changeable to No display, 10¹, 10², 10³, 10⁴ |
| External control function | 4 points ZERO、PEAK/TRACK/A/Z、HOLD、RESET/A/Z OFF |
| Comparator function | Set value ：－99 999 ~ 99 999 Set quantity ：2 points of S1 and S2 Conversion times of comparator ：Synchronous with A/D sampling |
| Operating temp. /humidity range | Temperature -10 ℃ ~50 ℃, Humidity 85 %RH or less (Non condensing) |
| Power supply voltage | 100 VAC ~ 240 VAC 50/60 Hz (Permissible variable range 85 VAC ~ 264 VAC) |
| Power consumption | Max. approx. 9.2 VA (with option, at 230 V AC), max. approx. 5.6 VA (with option, at 100 V AC) |
| Outline dimensions (WxHxD) | 96 mm×48 mm×138 mm |
| Weight | Approx. 0.35 kg (Options, including mounting kit) |
| Protection code | IP65 equivalent (Only for the fron panel when the attached panel mounting gascket is installed. |
