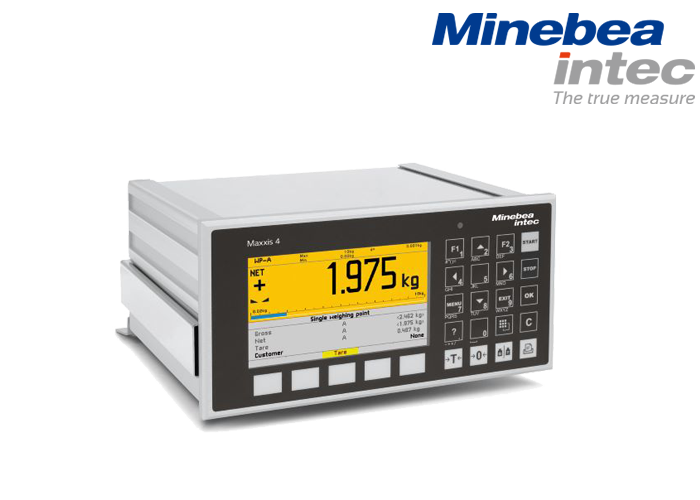

Process Controllers maxxis4 PR5500
Features
・Data Integrity (DI) Support
・User management and password management functions included
・Compatible with load cells, digital load cells, platform scales, and electromagnetic platform scales (optional)
・Class of protection: IP65 (front panel section)
・Extensive options including RS-232C/RS485, analog and digital I/O
・Data backup and restore function (in SD memory card)
|
Specification name |
Specification contents |
|---|---|
| Class | OIML R76; Class Ⅲ 10000e acc. To EN45501 |
| Non-linearity | <0.003% |
| Load cell Nominal supply voltage | DC12V max160mA, with remote sensing function, max 8 x 650Ω load cells (min 75Ω), max 4 x 350Ω load cells |
| Temperature effects | Zero:<0.05uV/K RTI、Span:<±4ppm/K |
| Input signal range | 0～36mV |
| Minimum entry force sensitivity | 0.24 μV/d |
| Internal resolution | max 7,500,000 counts at 3mV/V |
| Conversion speed | 5～1600ms |
| Power supply | AC100-240V(-10/+10%), 50-60Hz, 32VA |
| Ambient operating temperature | -10℃～50℃ |
| Ambient operating humidity | 95%RH or less (no condensation) |
| Temperature during storage and transportation | -20℃～70℃ |
| Class of protection | IP65 (front panel section) |
| Standard interface | RS-232C, Ethernet TCP/IP, Modbus TCP, SD card port (SD memory card (8G) standard), USB port |
| Option | W1: A/D converter |
| Option1 | L8: 24VDC power supply (-10/+10%) |
| Option2 | L14: Cable clamp specification |
| Option3 | L15: Reinforced frame |
| Option4 | B15 (Option 1): RS-485 |
| Option5 | B25 (Option 2): RS-485 (with power supply for connection to IS electromagnetic platform scales) |
| Option6 | B16 (Option 1): Analog output 0/4-20 mA |
| Option7 | B26 (Option 2): Analog output 0/4-20 mA |
| Option8 | B17 (Option 1): Digital I/O 4 points |
| Option9 | B27 (Option 2): Digital I/O 4 points |
| Option10 | C21 (FB option): Profibus-DP interface |
| Option11 | C24 (FB option): DeviceNet interface |
| Option12 | C25 (FB option): CC-Link interface |
| Option13 | C26 (FB option): Profinet interface |
| Option14 | C27 (FB option): Ethernet/IP interface |
| Option15 | E5: Alibi memory audit trail function |
| Dimension (W x H x D) | 192 mm×96 mm×157 mm |
| Weight | Approx. 2 kg |
| Gross Weight | 3 kg |
However, one item from FB option and Option 1, and one item from Option 2.
