Transmitter CSA-503C
| Specification name | Specification contents |
|---|---|
| Bridge power supply | 10 VDC±0.3 VDC within 30 mA (Changeable to 5 VDC or 2.5 VDC) |
| Input range | 0.5 mV/V ~ 3 mV/V |
| Sensitivity adjustable range | 1 000 times, 2 000times or 3 000 times (Changeover with the internal dip switch) Adjust 1/1 ~ 1/4 against each setting. |
| Output | ±10 VDC (Not isolated) |
| Output Load Resistance | 2 k-ohm or more |
| Zero adjustment range | ±0.25 mV/V *Tare weightcancellation will be adjusted by installing resistanceexternally. |
| Non-linearity (Display and voltage output) |
within 0.02 %F.S. |
| Temperature efficient | Zero point ±1 μV/℃ (Inputconversion), Sensitibity within ±0.01 %F.S/℃ |
| CALIB | 1 mV/V±0.002 mV/V (Changeable to either 0.5 mV/V±0.001 mV/V or 0.25 mV/V±0.000 5mV/V if specified at the order.) |
| Frequency response range | 1 Hz, 10 Hz, 100 Hz,1 kHz (Changeable by internal DIP switch) |
| Operating temp. / humidity range | Temperature -10 ℃ ~50 ℃, Humidity 85%RH or less (Non condensing) |
| Power supply | 100 VAC (90 VAC ~ 115 VAC), 50/60 Hz |
| Power consumption | Approx. 5 VA (at 100 VAC) |
| Outline dimensions (WxHxD) | CSA-507C 44 mm x 90mm x 110 mm CSA-507C-99 44 mm x 90 mm x 230 mm (Excludes protrudingparts) |
| Weight | CSA-507C Approx. 700 g CSA-507C-99 Approx. 1 200 g |
| Options | Current output, Automaticzero function, Power supply voltage |

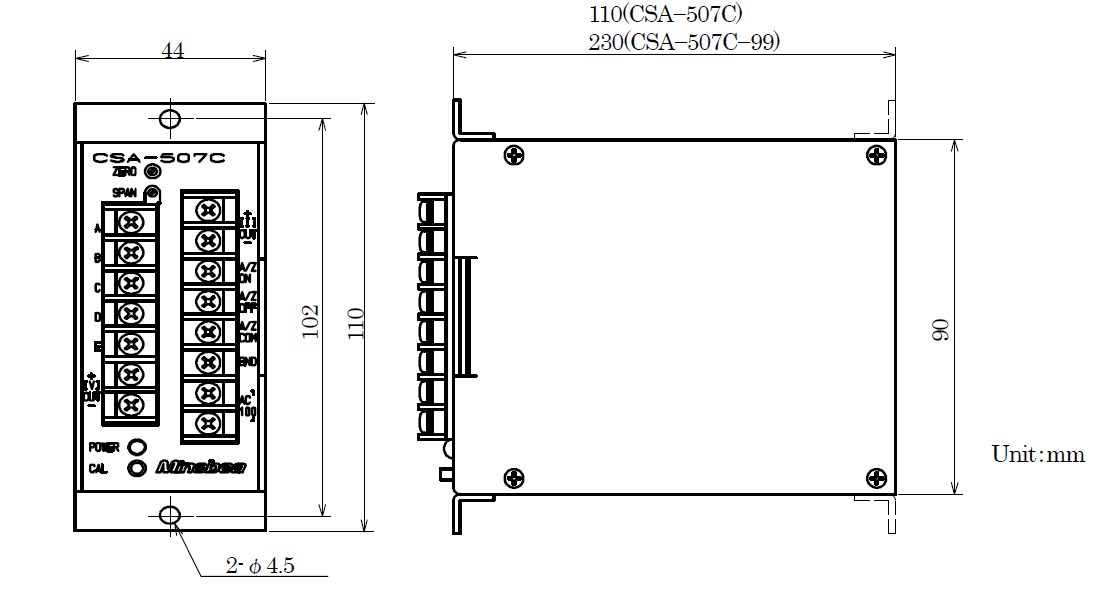

Outline dimensions
