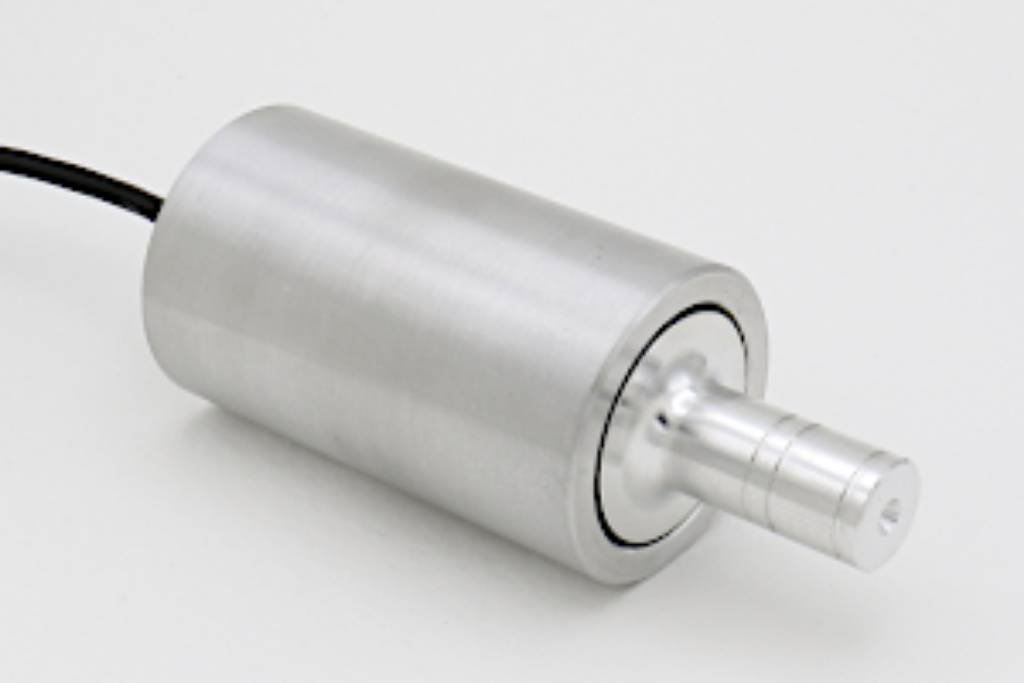

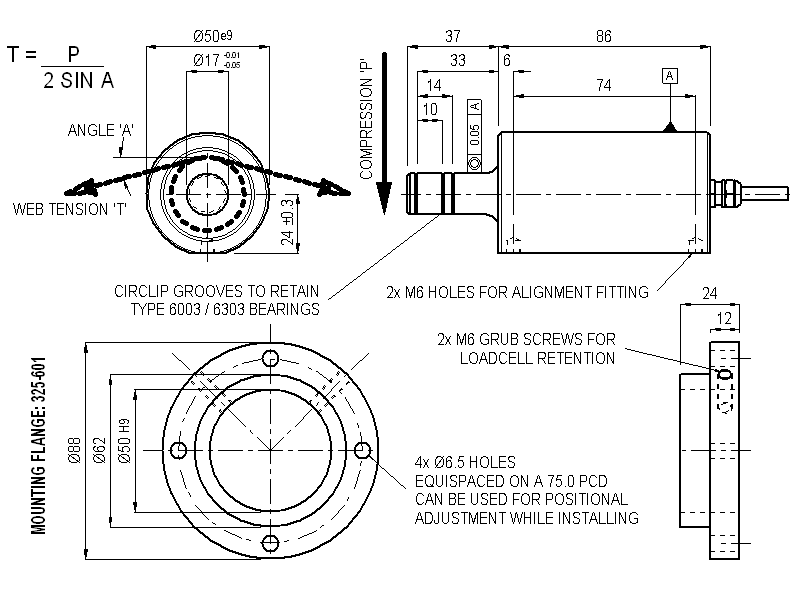

F325 High Accuracy Web Tension Loadcell
The high performance of this loadcell is not compromised by the relatively large errors that can be produced by imprecise installation.
We are happy to design variants of this loadcell to meet your specific requirements.
The high performance of this loadcell is not compromised by the relatively large errors that can be produced by imprecise installation.
We are happy to design variants of this loadcell to meet your specific requirements.
Specification
| Parameter | Value | Unit |
|---|---|---|
| Non-linearity – Terminal | ±0.03 | % RL |
| Hysteresis | ±0.03 | % RL |
| Creep – 20 minutes | ±0.05 | % AL |
| Repeatability | ±0.01 | % RL |
| Rated output – Nominal | 1.2 | mV/V |
| Rated output – Rationalised | 1.0 | mV/V |
| Rationalisation tolerance | ±0.1 | % RL |
| Zero load output | ±4 | % RL |
| Temperature effect on rated output per °C | ±0.005 | % AL |
| Temperature effect on zero load output per °C | ±0.01 | % RL |
| Temperature range – Compensated | -10 to +50 | °C |
| Temperature range – Safe | -10 to +80 | °C |
| Excitation voltage – Recommended | 10 | V |
| Excitation voltage – Maximum | 10 | V |
| Bridge resistance | 350 | Ω |
| Insulation resistance – Minimum at 50Vdc | 500 | MΩ |
| Overload – Safe | 50 | % RL |
| Overload – Ultimate | 200 | % RL |
| Weight – Nominal (excluding cable) | 380 | g |
Order Codes
| Code | Description |
|---|---|
| F325CF00H0 | Compression, unrationalised |
Structural Stiffness
| Range (kN) | Stiffness (N/m) |
|---|---|
| 50 | 8.3 x 105 |
| 100 | 1.1 x 106 |
| 200 | 1.5 x 106 |
| 500 | 2.0 x 106 |
Notes
- AL = Applied load.
- RL = Rated load.
- Temperature coefficients apply over the compensated range.
Connections
The loadcell is fitted with 2 metres of PVC insulated 4 core screened cable type 7-2-4C.
Excitation + = Red, Excitation – = Blue, Signal + = Yellow, Signal – = Green, Screen = Orange.
The screen is not connected to the loadcell body.
