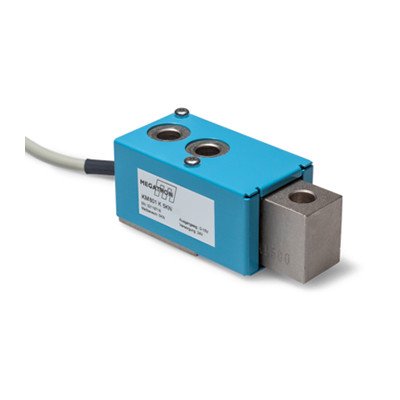

P3 AMERICA / KM801 K 500N, 1, 2, 5KN Shear Beam Force Load Cell

P3 AMERICA / KM801 K 500N, 1, 2, 5KN Shear Beam Force Load Cell

112 lb. (500N), 224 lb. (1KN), 450 lb. (2KN), 1124 lb. (5KN) capacity. The KM801 series force transducers (load cells) are double bending beam sensors characterized by a tight shape and simple fastening. It can be fixed with 2 screws on any flat or stable surface. Force application is vertical to sensor axis. The force sensors are offered without integrated amplifier electronics but can be combined with external measuring amplifiers and displays. See our KT703 or KT803 series for integrated signal conditioners providing a pre-calibrated 0 – 10V or 4 – 20mA output.

Category:
Tag:
브랜드:

설명

KM801 K 500N, 1, 2, 5KN Shear Beam Force Load Cell

Specifications
Attribute Value
Series / Type Shear Beam Force Load Cell (Tension or Compression)
Capacity (Rated Force) 112 lb. (500N), 224 lb. (1KN), 450 lb. (2KN), 1124 lb. (5KN)
Rated Output 2.0 mV/V nominal
Relative Repeatability Error ≤ 0.05% of rated output
Relative Reversibility Error ≤ 0.05% of rated output
Relative Linearity Error ≤ 0.05% of rated output
Relative Deviation of Zero Signal ≤ 1% of rated output
Rated Displacement n/a
Input Resistance 387 ±20Ω
Output Resistance 350 ±3Ω
Insulation Resistance ≥ 500 MOhm @ 50 VDC
Maximum Operating Force ≤ 150% of Capacity
Rated Range of Excitation Voltage ≤ 10 VDC/VAC
Operating Range of Excitation Voltage ≤ 15 VDC/VAC
Rated Temperature Range -10ºC to +70ºC
Operating Temperature Range -10ºC to +40ºC
Temperature Effect on Output Value ≤ 0.05% of rated output / 10K
Temperature Effect on Zero Signal ≤ 0.05% of rated output / 10K
Creep Under Load ≤ 0.05% of rated output
Cable Dimension 4 x AWG26  (Ø4.6mm)
Body Material Aluminum
Protection Grade IP40
Mass 0.9 lb.
