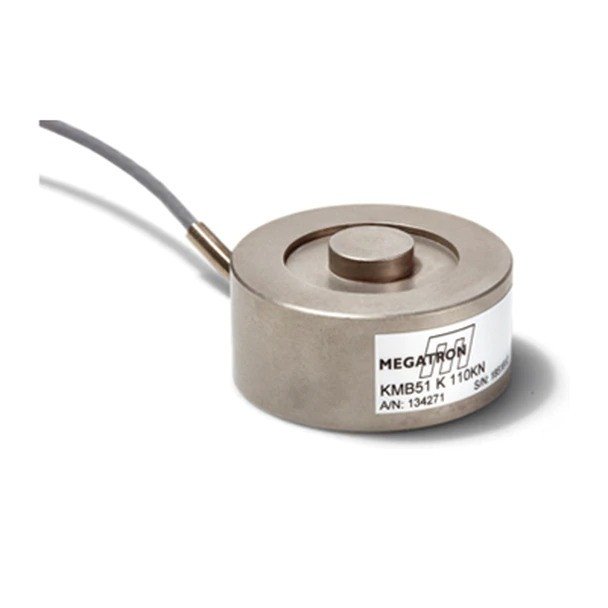

P3 AMERICA / KMB51 K 110KN Button Force Load Cell

P3 AMERICA / KMB51 K 110KN Button Force Load Cell

110KN (24,729 lb.) capacity. With the KMB51 ‘Button’ force transducers (load cells), force is applied directly to the central load button. Ideal for press applications and inline compression force measuring. Robust construction of stainless steel body material. The force sensors are offered without integrated amplifier electronics but can be combined with external measuring amplifiers and displays.

Category:
Tag:
브랜드:

설명

KMB51 K 110KN Button Force Load Cell

Specifications
Attribute Value
Series / Type Button Force Load Cell (Compression)
Capacity (Rated Force) 24,729 lb. (110kN)
Rated Output 2.0 mV/V nominal
Relative Repeatability Error ≤ 0.5% of rated output
Relative Reversibility Error ≤ 0.5% of rated output
Relative Linearity Error ≤ 0.5% of rated output
Relative Deviation of Zero Signal ≤ 0.1% of rated output
Rated Displacement ≤ 0.15mm
Input Resistance 700 ±50Ω
Output Resistance 700 ±50Ω
Insulation Resistance ≥ 500 MOhm @ 50 VDC
Maximum Operating Force ≤ 150% of Capacity
Rated Range of Excitation Voltage ≤ 10 VDC/VAC
Operating Range of Excitation Voltage ≤ 20 VDC/VAC
Rated Temperature Range -50ºC to +90ºC
Operating Temperature Range 0ºC to +70ºC
Temperature Effect on Output Value ≤ 0.36% of rated output / 10K
Temperature Effect on Zero Signal ≤ 0.18% of rated output / 10K
Creep Under Load ≤ 0.5% of rated output
Cable Dimension 4 x AWG26  (cable shielded)
Body Material Stainless steel
Protection Grade IP64
Mass 0.9 lb.
