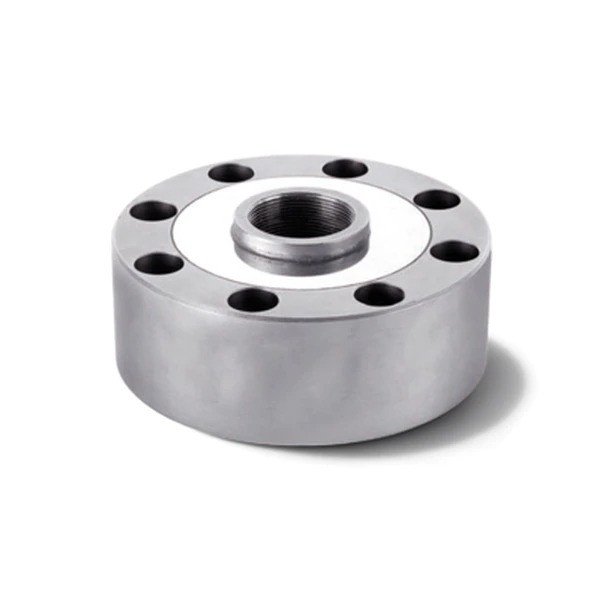

P3 AMERICA / KMC100 K 50KN Pancake Force Load Cell

P3 AMERICA / KMC100 K 50KN Pancake Force Load Cell

50KN (11,240 lb.) capacity. With the KMC100 ‘Pancake’ force transducers (load cells), force is applied to the threaded (M16 x 1.5 mm) central bore hole. Ideal for press applications and inline compression force measuring. Eight mounting holes for secure installation. Robust construction of steel alloy body material. The force sensors are offered without integrated amplifier electronics but can be combined with external measuring amplifiers and displays.

Category:
Tag:
브랜드:

설명

KMC100 K 50KN Pancake Force Load Cell

Specifications
Attribute Value
Series / Type Button (Pancake) Force Load Cell (Compression)
Capacity (Rated Force) 11,240 lb. (50kN)
Rated Output 3.0 mV/V nominal
Relative Repeatability Error ≤ 0.25% of rated output
Relative Reversibility Error ≤ 0.03% of rated output
Relative Linearity Error ≤ 0.03% of rated output
Relative Deviation of Zero Signal ≤ 1% of rated output
Rated Displacement ≤ 0.5mm
Input Resistance 387±20Ω
Output Resistance 350±5Ω
Insulation Resistance ≥ 500 MOhm @ 50 VDC
Maximum Operating Force ≤ 150% of Capacity
Rated Range of Excitation Voltage ≤ 10 VDC/VAC
Operating Range of Excitation Voltage ≤ 15 VDC/VAC
Rated Temperature Range -10ºC to +70ºC
Operating Temperature Range -10ºC to +40ºC
Temperature Effect on Output Value ≤ 0.02% of rated output / 10K
Temperature Effect on Zero Signal ≤ 0.02% of rated output / 10K
Creep Under Load ≤ 0.5% of rated output
Cable Dimension 4 x AWG24, PTFE isolated, shielded
Body Material Alloy steel
Protection Grade IP66
Mass 0.9 lb.
