Primosensor / Platform load cell PZ 1

Primosensor / Platform load cell PZ 1

  • Platform scales with only one load cell positioned centrally under the platform
  • from 300 g to 3,000 g
  • Accuracy of <0.010 % f.s.
  • Platform size: 200 x 200 mm

The PZ1 load cell is a high-precision single point load cell and was specially developed for use in small platform scales with correspondingly small loads. It is available with nominal loads from 300 g to 3000 g.

Category:
Tag:
브랜드:

설명

Platform load cell PZ 1

This load cell was especially designed for small weighing platforms and low loads and offers very high measuring accuracy. Its specific geometry allows using only one load cell for the whole platform. It is mounted centric as possible. Geometric center of the platform = geometric center of the load cell.

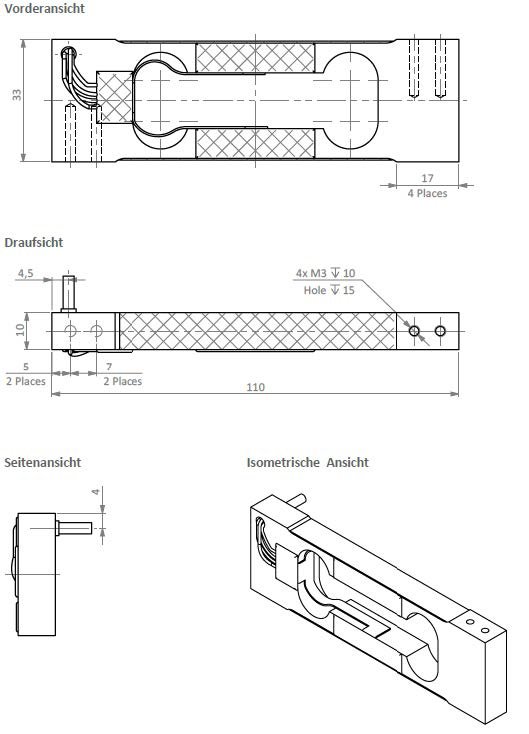

Dimensions and Nominal Loads

Nominal Load Output Signal Order Number
300 g 0.9± 0.1 mV/V PZ1030dgm201
600 g 0.9± 0.1 mV/V PZ1060dgm201
1200 g 0.9± 0.1 mV/V PZ1120dgm201
1500 g 0.9± 0.1 mV/V PZ1150dgm201
3000 g 0.9± 0.1 mV/V PZ1003kgm201

Technical Data

Load Fnom 300 / 600 / 1200 / 1500 / 3000 g
 Platform size in mm 200 x 200 mm
 Limit Load 120 %
Breaking Load 150 %
Output Signal 0.9± 0.1 mV/V
Input resistance 406 ± 6
Output resistance 350 ± 3
Voltage Supply ≤ 10 VDC
Accuracy 0,01 % v.E. %F.S.
Zero Signal tolerance ≤ 2,0% v.E. %F.S.
Nominal Temperature Range -10 …. +40°C
Service Temperature Range -35 …. +65°C
TemperatureEffect  zero Spanne span <0,015 % Fnom /10K <0,017 % Fnom /10K
Nominal Deflection < 0,2 mm
 Max. Dynamic Load acc. to DIN 50100 ± 80% Fnom
Vibration Resistance 20g, 100 h, 50…150 Hz
Protection Type DIN 60529 IP 65
Electrical Connector Cable Outlet 0.4m PVC
Tightening torque 1,3 Nm
Material Deformation Body  Aluminium
Weight 0,1 kg
