Primosensor / Platform load cell PZ 7

Primosensor / Platform load cell PZ 7

  • Platform scales with only one load cell positioned centrally under the platform
  • from 10 kg to 100 kg
  • Accuracy <0,25 % v.E.
  • Platform size: 200 x 200 mm

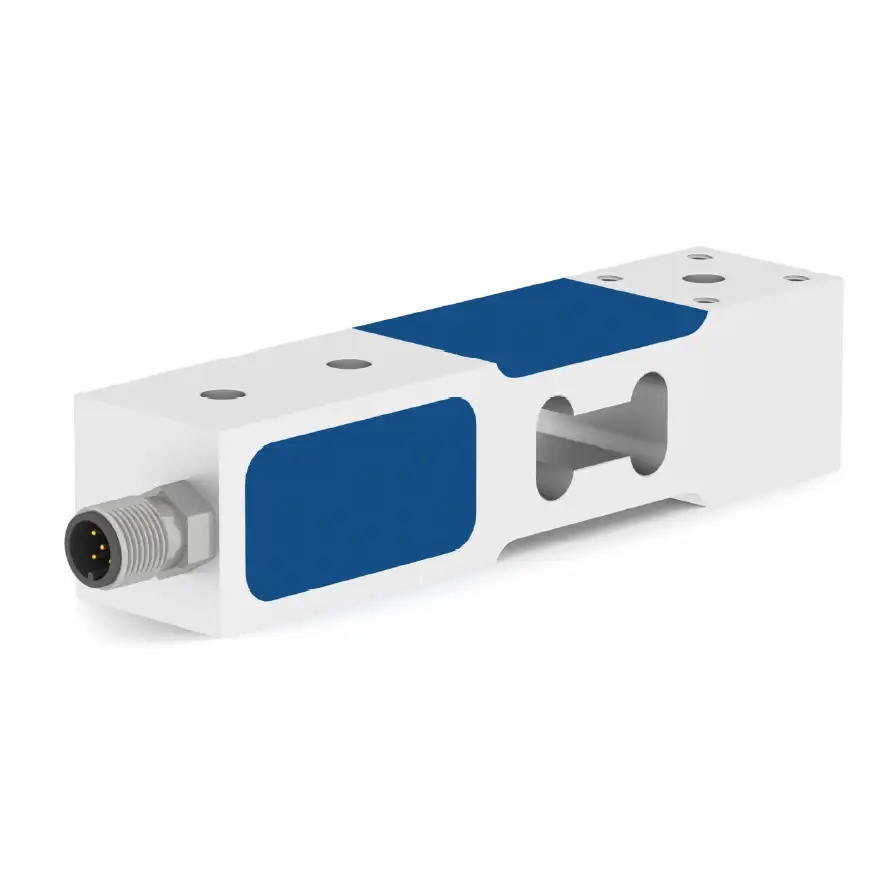

This platform force transducer with integrated amplifier electronics was specially developed for applications with eccentric force application or in small platform scales. The special geometry allows only one force transducer to be used under a platform. The sensor is mounted as centrally as possible.

Category:
Tag:
브랜드:

설명

Platform load cell PZ 7

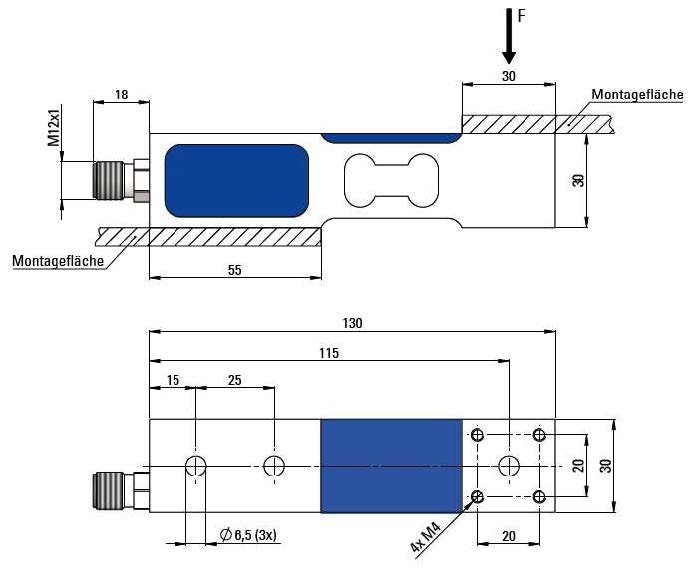

Dimensions and Nominal Loads

Nominal Load Output Signal Order Number
10 kg 4…20 mA (3-wire) PZ7010kgA101
20 kg 4…20 mA (3-wire) PZ7020kgA101
50 kg 4…20 mA (3-wire) PZ7050kgA101
100 kg 4…20 mA (3-wire) PZ7100kgA101

Technical Data

Technical Data Specification
Nominal Load (Fnom) 10 / 20 / 50 / 100 kg
Platform Size 200 × 200 mm
Limit Load 150 %
Breaking Load 300 %
Output Signal 4…20 mA (3-wire)
Optional Outputs 4…20 mA (2-wire) / 0…10 V / ±10 V (on request)
Voltage Supply (UB) 10…30 VDC
Working Resistance (Rb) Rb = (UB − 6 V) / 0.020 A, max. 500 Ω
Max. Power Consumption 40 mA
Accuracy 0.25 % F.S.
Nominal Temperature Range −10 … +50 °C
Service Temperature Range −30 … +80 °C
Temperature Effect – Zero < 0.2 % Fnom / 10 K
Temperature Effect – Span < 0.1 % Fnom / 10 K
Nominal Deflection < 0.2 mm
Dynamic Load (DIN 50100) ± 80 % Fnom
Vibration Resistance 20 g, 100 h, 50 … 150 Hz
Protection Type (DIN 60529) IP 67
Electrical Connector M12 × 1, 5-pin
Deformation Body Material Aluminium
Weight 0.3 kg
