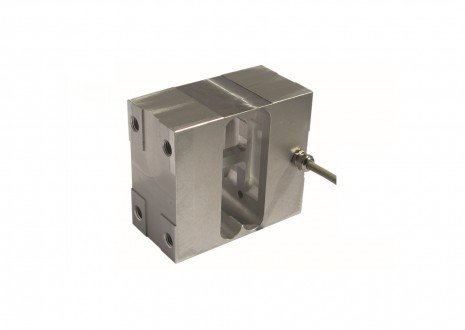

Single Point Load Cell BEF-F with a Rated Load of 150 kg
| Product Type | Single point load cell |
| Material | Anodized aluminum |
| Protection Level | IP67 |
| Platform Compatibility | Maximum dimensions 600 mm x 600 mm (off-center load compensated) |
| Technology | 6-wire |
| Environmental Suitability | Harsh environments |
| Application Areas | Food industry, Coal and steel industry, Chemical / pharmaceutical industry, Waste management / recycling, Packaging technology |
| Mounting | Side mounting (suitable for tank weighing) |
Dimensions in mm
| Article No. | Version | Rated Load [kg] | Connection Assignment |
|---|---|---|---|
| 112391 | – | 150 | – |
Connection Assignment
| Function | Wire Color |
|---|---|
| Excitation (+) | Red |
| Signal (+) | Green |
| Signal (-) | White |
| Excitation (-) | Blue |
| Sensing (+) | Pink |
| Sensing (-) | Gray |
Technical Data
| Type | PM |
| Version | – |
| Rated load (E) | 150 kg |
| Maximum load for approved weighing (Emax) | 150 kg |
| Accuracy class | OIML R60 |
| Maximum numbers of load cell intervals (nmax) | d OIML |
| Minimum verification interval (vmin) | g |
| Creep division factor (Z = Emax / 2 \times DR) | – |
| Combined error | ±0.033 % E |
| Temperature coefficient of zero signal | ±0.006 % E / °C |
| Temperature coefficient of characteristic value | ±0.0016 % E / °C |
| Load creep (dcr, F) in 30 min. | ±0.03 % E |
| Zero balance | ±5 % E |
| Rated output at E (Cnom) | 1.2 ±10 % mV/V |
| Rated range of excitation voltage (BU, nom) | 1 … 15 V |
| Input resistance (Re) | 410 ±20 Ω |
| Output resistance (Ra) | 350 ±5 Ω |
| Insulation resistance (Ris) | 5 MΩ / 50 V |
| Electrical connection | Cable, PVC, 3 m |
| Rated temperature range (BT, nom) | -10 … 40 °C |
| Operating temperature range (BT, G) | -20 … 60 °C |
| Limit load (Elim) | 150 % Emax |
| Breaking load (Eb) | 200 % Emax |
| Tightening torque | 40 Nm |
| Maximum platform dimension | 600 x 600 mm |
| Level of protection | IP67 |
| Material | Aluminum |
| Weight | 1.25 kg |
Options
| Article No. | Product / Description | Notes |
|---|---|---|
| 111735 | Protective coating | – |
Electrical Connection
| Article No. | Product / Description | Notes |
|---|---|---|
| 10323 | Male cable connector KS6 (6-pin, Series 581) | incl. mounting |
| 10320 | Male cable connector KSSH15 (15-pin) | incl. mounting |
| 43418 | Input connector ZA9612FS (ALMEMO) | incl. sensor mounting and connector calibration |
| 49205 | Input connector ZKD712FS (ALMEMO 202) | incl. sensor mounting and connector calibration |
