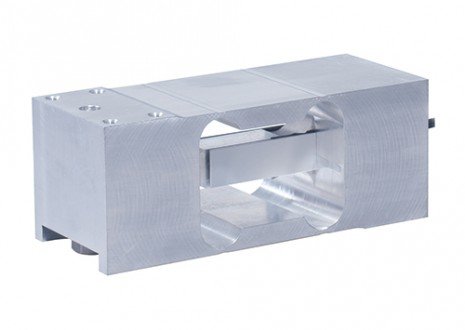

Single Point Load Cell AB with a Rated Load of 50 … 500 kg
PRODUCT FEATURES
- Aluminum single point load cell
- OIML R60 approved (5000d) and NTEP approved (5000d)
- Protection class: IP65
- 6-wire configuration
- Designed for platforms up to 800 mm × 800 mm (off-center load compensated)
- ATEX 2014/34/EU version available for hazardous areas (optional)
APPLICATIONS
- Food industry
- Coal and steel industry
- Chemical / pharmaceutical industry
- Waste management / recycling
- Packaging technology
Dimensions of AB in mm
| Article No. | Version | Rated Load [kg] | Connection Assignment |
|---|---|---|---|
| 100191 | C3 10e | 50 | – |
| 101072 | C3 10e | 75 | – |
| 100192 | C3 10e | 100 | – |
| 111399 | C3 10e | 150 | – |
| 100193 | C3 10e | 200 | – |
| 101075 | C3 10e | 250 | – |
| 101074 | C3 10e | 300 | – |
| 100194 | C3 10e | 500 | – |
Connection Assignment
| Function | Wire Color |
|---|---|
| Excitation (+) | Brown |
| Signal (+) | Yellow |
| Signal (-) | White |
| Excitation (-) | Green |
| Sensing (+) | Gray |
| Sensing (-) | Pink |
Technical Data
| 항목 | 사양 |
|---|---|
| Type | AB |
| Version | C3 10e |
| Rated load (Enom) | 50; 75; 100; 150; 200; 250; 300; 500 kg |
| Maximum load for approved weighing (Emax) | 65; 90; 130; 185; 250; 310; 375; 625 kg |
| Accuracy class | OIML R60 C3 |
| Maximum numbers of load cell intervals (nmax) | 3000 d OIML |
| Minimum verification interval (vmin) | E / 10000 kg |
| Creep division factor (Z = Emax / 2 times DR) | 5000 |
| Combined error | ±0.017 % E |
| Temperature coefficient of zero signal | ±0.0014 % E / °C |
| Temperature coefficient of characteristic value | ±0.0014 % E / °C |
| Load creep (dcr, F) in 30 min. | ±0.025 % E |
| Zero balance | ±10 % E |
| Rated characteristic value (Cnom) | 2 ±10 % mV/V |
| Rated range of excitation voltage (BU, nom) | 1 … 15 V |
| Input resistance (Re) | 410 ±20 Ω |
| Output resistance (Ra) | 350 ±5 Ω |
| Insulation resistance (Ris) | 1000 MΩ / 50 V |
| Electrical connection | Cable, PVC, 3 m |
| Rated temperature range (BT, nom) | -10 … 40 °C |
| Operating temperature range (BT, G) | -20 … 60 °C |
| Limit load (Elim) | 150 % Emax |
| Breaking load (Eb) | 200 % Emax |
| Tightening torque | 40 Nm |
| Maximum platform dimension | 800 x 800 mm |
| Level of protection | EN 60529 IP65 |
| Material | Aluminum |
| Weight | 2.1 kg |
Options
| Article No. | Product / Description | Certification / Protection | Temperature Range | Zone / Environment | Version / Notes |
|---|---|---|---|---|---|
| 111735 | Protective coating | – | – | – | – |
| 107798 | – | ATEX 2014/34/EU, IECEx: ex II 1 G/D, Ex ia IIC T6 Ga, Ex ia IIIC T80 °C Da, IP6X | -20 °C … +60 °C | Gas zones 0/1/2, Dust zones 20/21/22 | – |
| 115049 | – | ATEX 2014/34/EU, IECEx: ex II 1 D, Ex ta IIIC T125 °C Da, IP6X | -20 °C … +60 °C | Dust zones 20/21/22 | – |
| 115048 | – | ATEX 2014/34/EU, IECEx: ex II 3 G, Ex nA IIC T6 Gc | -20 °C … +60 °C | Gas zone 2 | C5 Version (5000 d OIML) on request |
| – | – | FACTORY MUTUAL (FM): I.S., CL I, II, III / DIV 1 / GP ABCDEFG; N.I., CL I, II, III / DIV 2 / GP ABCDEFG; NIFW | – | – | Marking / Certification |
Electrical Connection
| Article No. | Product / Description | Notes |
|---|---|---|
| 10323 | Male cable connector KS6 (6-pin, Series 581) | incl. mounting |
| 10320 | Male cable connector KSSH15 (15-pin) | incl. mounting |
| 43418 | Input connector ZA9612FS (ALMEMO) | incl. sensor mounting and connector calibration |
| 49205 | Input connector ZKD712FS (ALMEMO 202) | incl. sensor mounting and connector calibration |
