설명

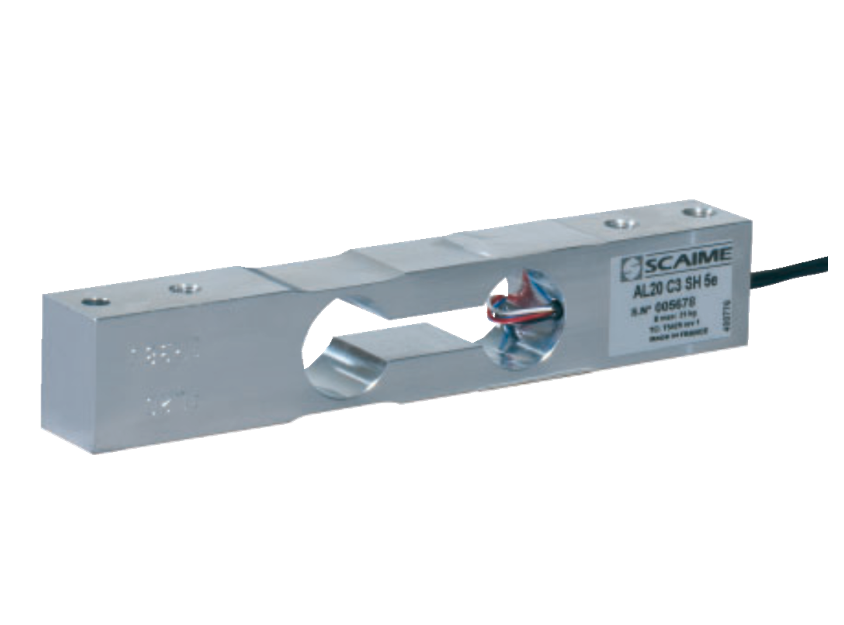

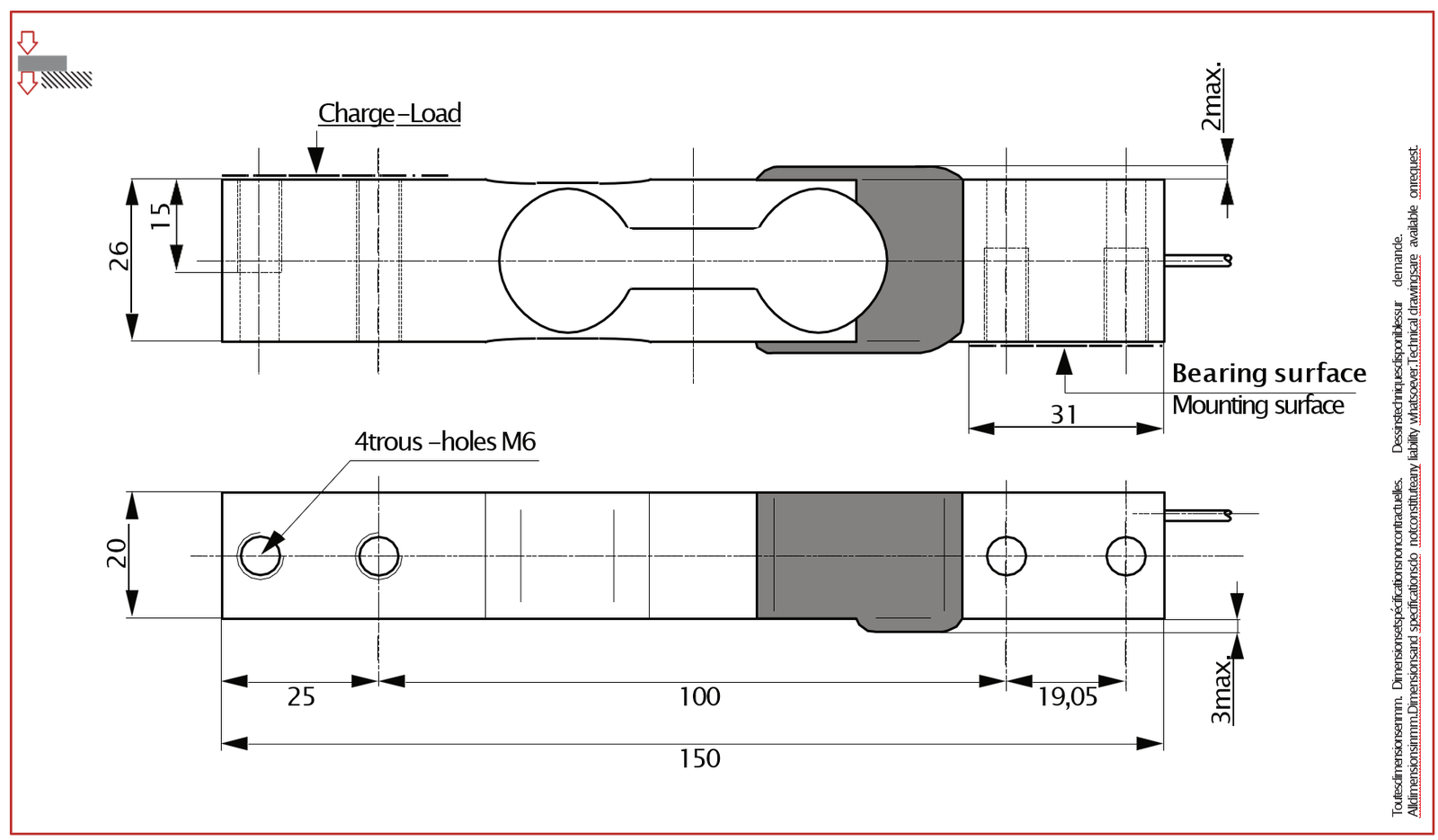

AL Aluminum single point load cell, 3 kg … 30 kg
| Function | Wire Color |
|---|---|
| + Excitation | Red |
| + Signal | Black |
| – Signal | Blue |
| – Excitation | White |
Specifications
| METROLOGICAL | C3 10e | |
| Ratedcapacity (Cn) | 3, 5, 7, 10, 15, 30 | kg |
| Combinederror | ±0.017 | %Cn |
| Temperaturee fect onzero | ±0.0014 | %Cn/°C |
| Temperaturee fect onsensitivity | ±0.0014 | %Cn/°C |
| Creep error(30 min.) | ±0.024 | %Cn |
| Maximumplatformsize | 200 x240 (3 kg) / 300 x 350 (5 … 30 kg) | mm |
| LEGAL METROLOGY OIML R60 | ||
| Accuracyclass | C3 | |
| Maximumcapacity (Emax) | 3.75, 6.25, 8.75, 12.5, 18.25, 37.5 | kg |
| Max. numberofLC intervals (nmax) | 3 000 | d OIML |
| Minimumverification interval (vmin) | Emax/12500 | kg |
| Z=Emax/(2xDR) | 3 000 | |
| ELECTRICAL | ||
| Nominal rangeofexcitationvoltage | 1 … 15 | V |
| Rated outputat Cn | 2 ±10% | mV/V |
| Zerobalance | ±5 | %Cn |
| Input/outputresistance | 410 ±20/ 350 ±5 | Ω |
| Insulationresistance | 1 000 | MΩ/50V |
| GENERAL | ||
| Compensated temperaturerange | -10… +40 | °C |
| Service temperaturerange | -20… +60 | °C |
| Safe load limit | 150 | %Emax |
| Ultimateoverload | 200 | %Emax |
| Tighteningtorque | 15 | Nm |
| Protectionclass | IP65 | EN 60529 |
| Material Measuringbody Cable gland Cable sheath |
Aluminium-Aluminum |
