설명

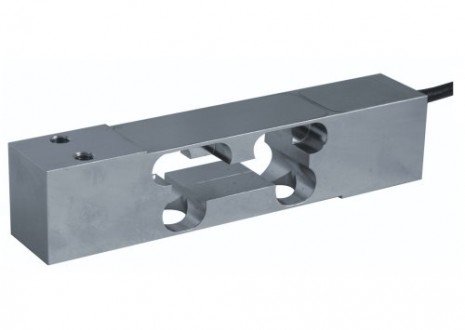

AXL Stainless steel single point load cell, 10 kg … 75 kg
| Specifications | Value |
|---|---|
| Type | Weighing Beam |
| Application | Tension & Compression |
| Full Scale | 22 lbs / 33 lbs / 45 lbs / 112 lbs / 165 lbs |
| Output | 2 mV/V |
| Precision | ±0.017 % FS |
| Excitation | 1 – 15 V DC |
| IP Rating | IP69K |
| Min Temperature | -10 °C |
| Max Temperature | 40 °C |
