Rocker Pin Load Cell CB50X with a Rated Load of 5 … 60 t
PRODUCT FEATURES
- Rocker pin load cell made of stainless steel, welded construction (Protection class IP68)
- OIML R60 approved up to 4000d
- Spherical and self-centering base
- Anti-rotating system included
- Ideally suited for weighbridge and silo weighing applications
- Surge protection available (optional)
- Anti-rodent shielded cable available (optional)
- ATEX 2014/34/EU version available for hazardous areas (optional)
APPLICATIONS
- Food industry
- Coal and steel industry
- Chemical and pharmaceutical industry
- Waste management / recycling
- Packaging technology
| Article-No. | Version | Rated load [t] |
| 105147 | C4 10e | 5 |
| 105209 | C4 10e | 10 |
| 105214 | C4 10e | 20 |
| 105148 | C4 10e | 30 |
| 105215 | C4 10e | 40 |
| 105216 | C4 10e | 60 |
Connection Assignment
| Electrical Connection | |
| Function | Wire Color |
| Excitation (+) | Red |
| Signal (+) | White |
| Signal (-) | Yellow |
| Excitation (-) | Blue |

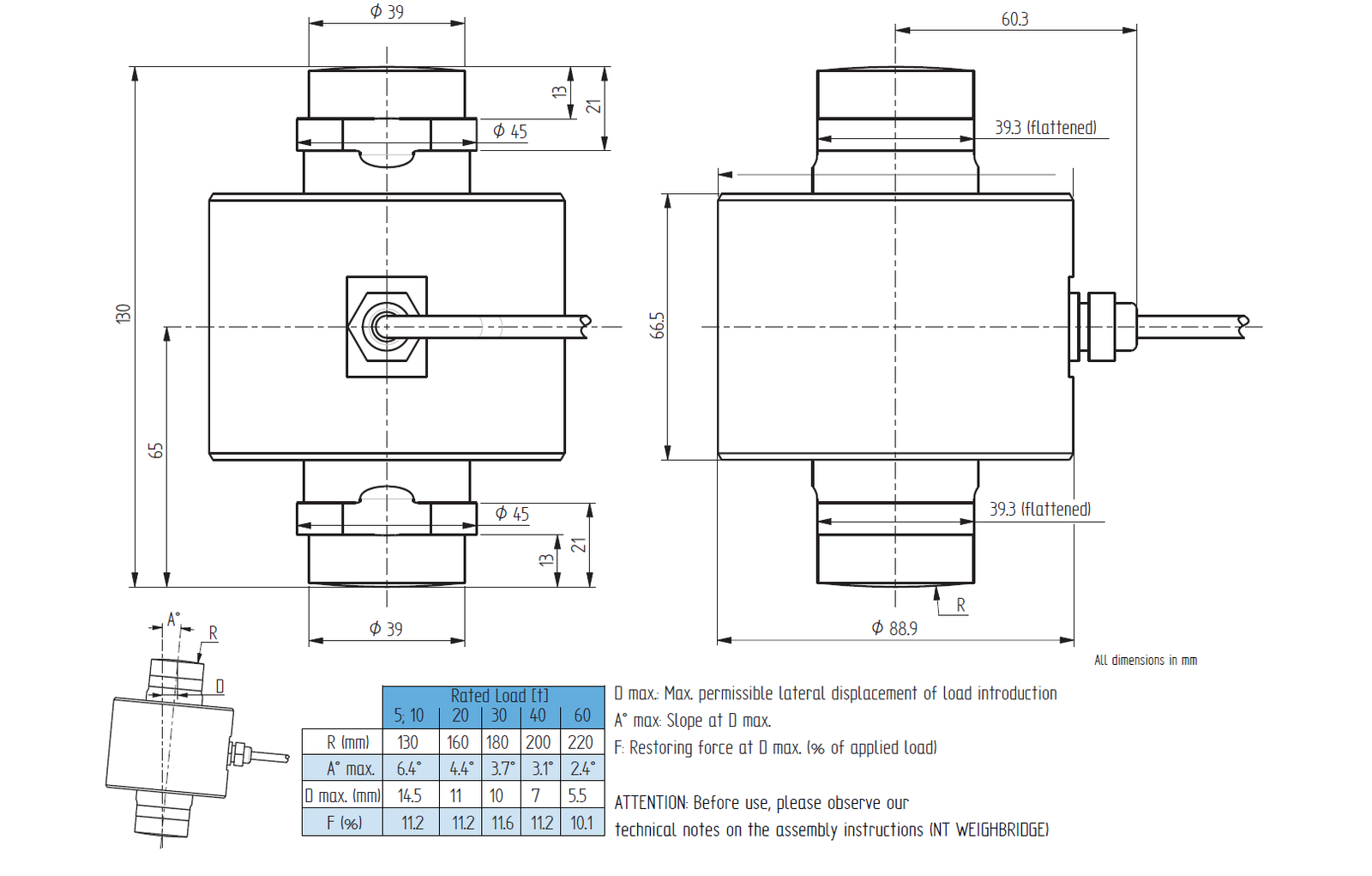

Technical Data
| Type | CB50X | |
| Version | C4 10e | |
| Rated load E | t | 5; 10; 20; 30; 40; 60 |
| Maximum load for approved weighing Emax | t | 5; 10; 20; 30; 40; 60 |
| Accuracy class OIML R60 | C4 | |
| Maximum numbers of load cell intervals nmax | d OIML | 4000 |
| Minimum verification interval vmin | t | Emax/10000 |
| Creep division factor Z = Emax / 2 x DR | 4000 | |
| Combined error | % E | ±0.013 |
| Temperature coefficient of zero signal | % E/ °C | ±0.0014 |
| Temperature coefficient of characteristic value | % E / °C | ±0.0011 |
| Load creep dcr, F in 30 min. | % E | ±0.018 |
| Zero balance | % E | ±2.5 |
| Rated output at E Cnom | mV/V | 2 ±10 % |
| Rated range of excitation voltage BU, nom | V | 1 … 15 |
| Input resistance Re | Ω | 815 ±20 |
| Output resistance Ra | Ω | 700 ±0.35 |
| Signal adjustment | % E | 0.1 |
| Insulation resistance Ris | MΩ/50V | 5000 |
| Electrical connection | Cable, PVC, 15 m | |
| Material cable gland | Nickel plated steel | |
| Rated temperature range BT, nom | °C | -10 … 40 |
| Operating temperature range BT, G | °C | -20 … 60 |
| Limit load Elim | % Emax | 150 |
| Breaking load EB | % Emax | 300 |
| Level of protection | EN 60529 | IP68 |
| Material | Stainless steel | |
| Weight | kg | 3 |
Options
| Article-No. | Description |
| 107798 | ATEX 2014/34/EU, IECEx:
ex II 1 G/D, Ex ia IIC T6 Ga, Ex ia IIIC T80 °C Da, IP6X, -20 °C < Ta < +60 °C (zones gaz 0/1/2, dust 20/21/22) |
| 115049 | ATEX 2014/34/EU, IECEx:
ex II 1 D, Ex ta IIIC T125 °C Da, IP6X, -20 °C < Ta < +60 °C (zones dust 20/21/22) |
| 115048 | ATEX 2014/34/EU, IECEx: ex II 3 G, Ex nA IIC T6 Gc, -20 °C < Ta < +60 °C (zone gaz 2)1 |
| Gas discharge tube as surge protection (GDT option): 10 kA / 20 kV (8/20 μs) – IEC 61000-4/5 | |
| Anti-rodent shielded cable |
Electrical Connection
| Article-No. | Description |
| 10323 | Male cable connector KS6 (6-pin, Series 581) incl. mounting |
| 10320 | Male cable connector KSSH15 (15-pin) incl. mounting |
| 43418 | Input connector ZA9612FS (ALMEMO) incl. sensor mounting and connector calibration |
| 49205 | Input connector ZKD712FS (ALMEMO 202) incl. sensor mounting and connector calibration |
