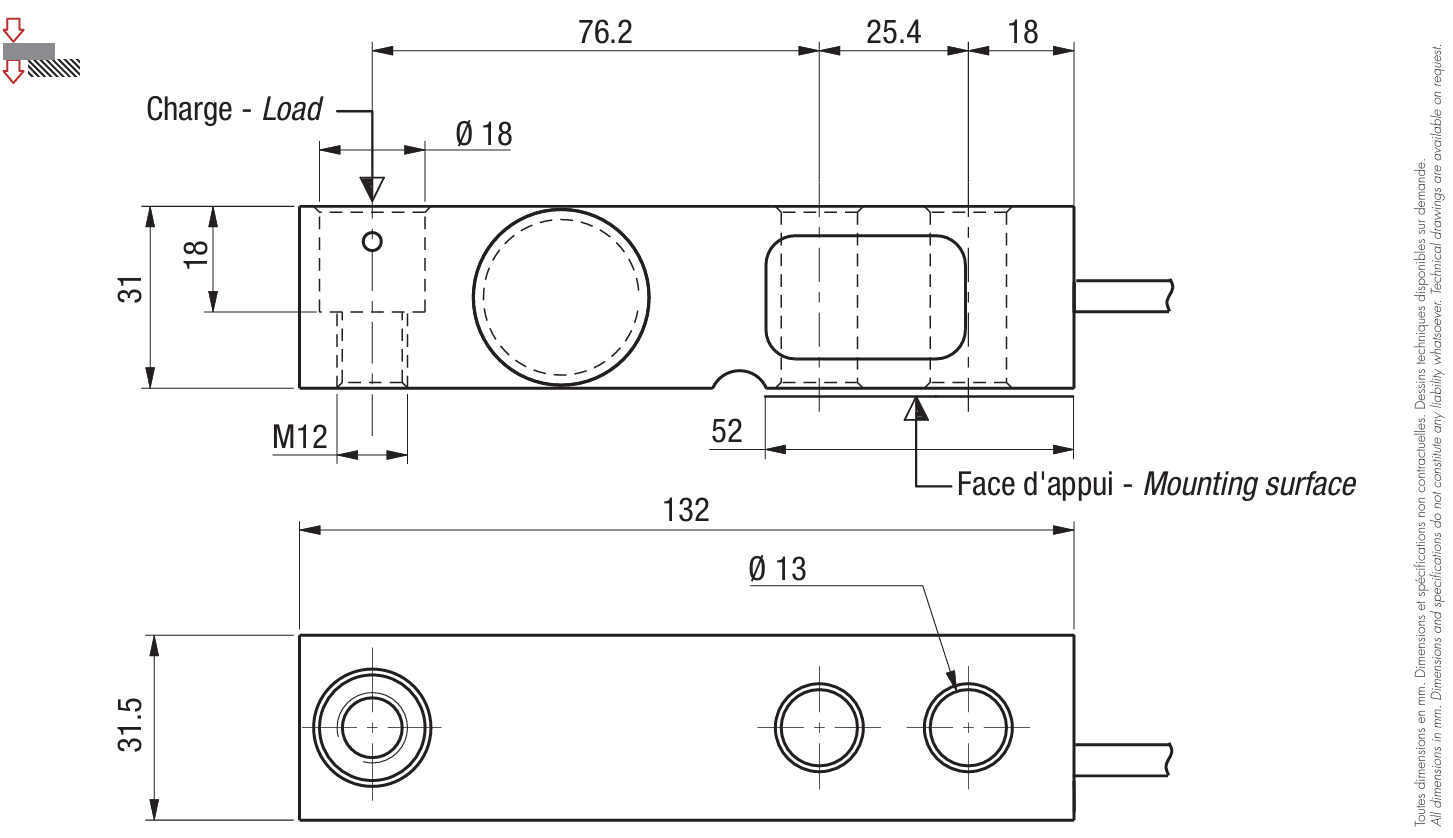

SK30X 2T Shear beam Load cell
| Function | Wire Color (FR) | Wire Color (EN) |
|---|---|---|
| Excitation (+) | Marron | Brown |
| Signal (+) | Jaune | Yellow |
| Signal (−) | Blanc | White |
| Excitation (−) | Vert | Green |
| Sense (+) | Gris | Grey |
| Sense (−) | Rose | Pink |
Specifications
| METROLOGICAL | C3 12e | C3 10e | C6 15e | ||
| Rated capacity (Cn) | 300 | 500, 1 000, 2 000 | 500, 1 000, 2 000 | kg | |
| Combined error | ±0.017 | ±0.008 | %Cn | ||
| Temperature effect on zero | ±0.0012 | ±0.0014 | ±0.0009 | %Cn/°C | |
| Temperature effect on sensitivity | ±0.0014 | ±0.0007 | %Cn/°C | ||
| Creep error (30 min.) | ±0.024 | ±0.012 | %Cn | ||
LEGAL METROLOGY OIML R60
| Accuracy class | C3 | C6 | ||
| Maximum capacity (Emax) | 300, 500, 1 000, 2 000 | 500, 1 000, 2 000 | kg | |
| Max. number of LC intervals (nmax) | 3 000 | 6 000 | d OIML | |
| Minimum verification interval (vmin) | Emax/12 000 | Emax/10 000 | Emax/15 000 | kg |
| Z=Emax/(2xDR) | 3 000 | 6 000 | ||
| ELECTRICAL | ||
| Nominal range of excitation voltage | 1 … 15 | V |
| Rated output at Cn | 2 | mV/V |
| Current adjustement | ±0.1 | %Cn |
| Zero balance | ±10 | %Cn |
| Input/output resistance | 385 ±20 / 350 ±5 | Ω |
| Insulation resistance | 5 000 | MΩ/50V |
| GENERAL | ||
| Compensated temperature range | -10 … +40 | °C |
| Service temperature range | -20 … +60 | °C |
| Safe load limit | 150 | %Emax |
| Ultimate overload | 200 | %Emax |
| Tightening torque | 30 | Nm |
| Protection class | IP68 | EN 60529 |
| Material
Measuring body |
Acier inox – Stainless steel |
|
| Cable sheath | PVC | |
| Cable length | 5 | m |
| Net weight | 940 | g |
Options
| Category | Protection Type | Temperature Class | Protection Level | Ambient Temperature | Zone |
|---|---|---|---|---|---|
| II 1 G/D | Ex ia IIC Ga / Ex ia IIIC Da | T6 / T80 °C | IP6X | −20 °C to +60 °C | Zone 0 / 20 |
| II 1 D | Ex ta IIIC Da | T125 °C | IP6X | −20 °C to +60 °C | Zone 20 |
| II 3 G | Ex nA IIC Gc | T6 | – | −20 °C to +60 °C | Zone 2 |
