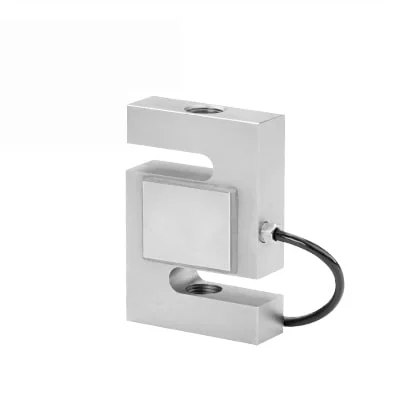

Sensortronics / 60001 S-Beam Load Cell

Sensortronics / 60001 S-Beam Load Cell

with a humidity-resistant coating and shielded cables,which enable its use in harsh environments whilemaintaining operating specifications. Additional sensewires compensate for changes in lead resistance due totemperature change and/or cable extension.Ideally suited for lever conversions, hanging scales,force measurement and a wide range of otherindustrial applications. Nickel-plated for outstandingcorrosion resistance.

Category:
Tag:
브랜드: ,

설명

60001 S-Beam Load Cell

FEATURES
• Rated capacities of 25 to 20,000 pounds,
50 kilograms to 10 metric tonnes
• Designed for single or multiple load cell applications
• Constructed of high quality alloy tool steel
• Nickel plated for outstanding corrosion resistance
• Sensorgage™ sealed to IP67 standards
• Trade certified for NTEP Class III: 5000d, IIIL:
10000d and OIML R-60 3000d available
• Factory Mutual System Approved for Classes I, II, III;
Divisions 1 and 2; Groups A through G.
Also, non-incendive ratings (No barriers!).
• Optional
– Stainless steel version is Model 60050
– EDOC option available; product appearance will differ
from the photograph due to coating

APPLICATIONS
• Tank, bin and hopper weighing
• Level and inventory monitoring
• Truck scale conversions
• Tension and compression measurements

SPECIFICATIONS
PARAMETER VALUE UNIT
Rated capacity—R.C. (Emax) 25, 50, 75, 100, 150, 200, 250, 300, 500, 750, 1k, 1.5k, 2k, 2.5k, 3k, 5k, 10k, 15k, 20k 50 kg, 100 kg, 250 kg, 500 kg, 1 t, 2.5 t, 5 t, 10 t* lbs kg/metric tonne
NTEP/OIML accuracy class NTEP III NTEP IIIL Standard OIML R60
Maximum no. of intervals (n) 5000 single 10000 single   3000*
Y = Emax/Vmin NTEP Cert. No. 86-043A1   6667 Maximum available
Rated output—R.O. lbs 3.0 mV/V
Rated output tolerance lbs 25–3k: +25 / –10 5k–20k: ±0.25 %
Rated output—R.O. kg 3.0 mV/V
Rated output tolerance kg 50 kg–1 t: +25 / –10 2.5 t–3 t: ±0.25 %
Zero balance 1.0 ±% FSO
Combined error 0.02 0.02 0.03 0.02 ±% FSO
Non-repeatability 0.01 ±% FSO
Creep error (30 minutes) 0.03 0.025 0.03 0.017 ±% FSO
Temperature effect on zero 0.0010 0.0010 0.0015 0.0010 ±% FSO/°F
Temperature effect on output 0.0008 0.0008 0.0008 0.0007 ±% of load/°F
Compensated temperature range 14 to 104 (–10 to 40) °F (°C)
Operating temperature range 0 to 150 (–18 to 65) °F (°C)
Storage temperature range –60 to 185 (–50 to 85) °F (°C)
Safe sideload 30 % of R.C.
Maximum safe central overload 150 % of R.C.
Ultimate central overload 300 % of R.C.
Excitation, recommended 10 VDC or VAC RMS
Excitation, maximum 15 VDC or VAC RMS
Input impedance 343–450 Ω
Output impedance 349–355 Ω
Insulation resistance at 50 VDC >1000 MΩ
Material Nickel-plated alloy tool steel**
Environmental protection IP67

Notes

* OIML approval 100–5k lbs and 50–2500 kg only NTEP approval from 25–20k lbs only
** Stainless steel available–Model Number 60050 FSO–Full Scale Output
All specifications subject to change without notice.

CERTIFICATION MARKINGS

FM Approval markings (USA and Canada)
IS Class I, II, III, Division 1,
Groups A, B, C, D, E, F and G; T4
Ta = -25°C to +40°C
