Sensortronics / 65023 Shear Beam Load Cell

Sensortronics / 65023 Shear Beam Load Cell

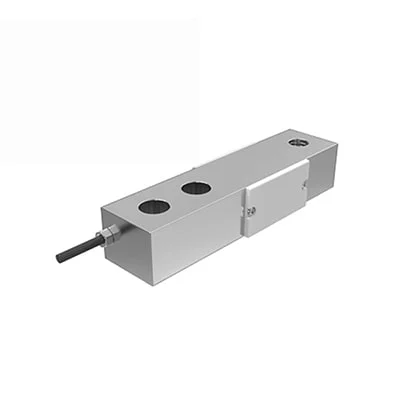

Model 65023 is a low profile shear beam load celldesigned for high accuracy platform scales, pallet scalesand process weighing applications.It has high immunity to shock or side loading and isavailable in 2 or 3 mV/V sensitivity. Approved to OIML andNTEP standards. For hazardous environments this loadcell is available with ATEX, UKCA and FM approval.Nickel plating and full environmental sealing assures longtermreliability. A stainless steel option is available for thelb versions for use in harsh or corrosive environments.Two additional sense wires feedback the voltage reachingthe load cell. Complete compensation of changes inlead resistance, due to temperature change and/or cableextension is achieved by feeding this voltage into theappropriate electronics.

Category:
Tag:
브랜드: ,

설명

65023 Shear Beam Load Cell

FEATURES
• Rated capacities of 250 to 20,000 pounds, 125 to 10,000 kg
• “Thru” or “threaded” load hole configurations
• Low sensitivity to axial loads
• Low profile (ultra-low-profile available in 1000 to 2500 pound ranges)
• Sensorgage™ sealed to IP67 standards
• Factory Mutual System Approved for Classes I, II, III; Divisions 1 and 2; Groups A through G.
• Non-incendive ratings (without barriers!).
• Trade certified for NTEP Class III: 5000d, IIIL: 10000d and OIML R-60 3000d available
• Optional
– Hazardous area approval
– Stainless steel versions available
– 65059 TWA companion weighing assemblies available
– EDOC product appearance will differ from the photograph due to coating

APPLICATIONS
• Floor scales
• Tank weighing
• Bin and hopper weighing

SPECIFICATIONS
PARAMETER VALUE UNIT
Rated capacity—R.C. (Emax) 250, 500, 1k, 1.5k, 2k, 2.5k, 4k, 5k, 10k, 15k, 20k lbs
125, 250, 500, 750, 1000, 2000, 5000, 10,000 (1) kg
NTEP/OIML accuracy class NTEP III NTEP IIIL Standard OIML R60
Maximum no. of intervals (n) 3000 single 10000 multiple   3000 (1)
Y = Emax/Vmin NTEP Cert. No. 86-044A2   6250 Maximum available
Rated output—R.O. 3.0 mV/V
Rated output tolerance 0.25 ±% mV/V
Zero balance 1.0 ±% FSO
Combined error 0.02 0.02 0.03 0.02 ±% FSO
Non-repeatability 0.01 ±% FSO
Creep error (30 minutes) 0.025 0.03 0.03 0.017 ±% FSO
Temperature effect on zero 0.0010 0.0010 0.0015 0.0010 ±% FSO/°F
Temperature effect on output 0.0008 0.0008 0.0008 0.0007 ±% of load/°F
Compensated temperature range 14 to 104 (–10 to 40) °F (°C)
Operating temperature range 0 to 150 (–18 to 65) °F (°C)
Storage temperature range –60 to 185 (–50 to 85) °F (°C)
Sideload rejection ratio 500:1
Safe sideload 100 % of R.C.
Maximum safe central overload 150 % of R.C.
Ultimate central overload 300 % of R.C.
Excitation, recommended 10 VDC or VAC RMS
Excitation, maximum 15 VDC or VAC RMS
Input impedance 343–357 Ω
Output impedance 349–355 Ω
Insulation resistance at 50 VDC >1000 MΩ
Material Nickel-plated alloy tool steel (2)
Environmental protection IP67
Recommended torque All capacities up to 5000 kg–136.0 5000 kg–205.0 N*m

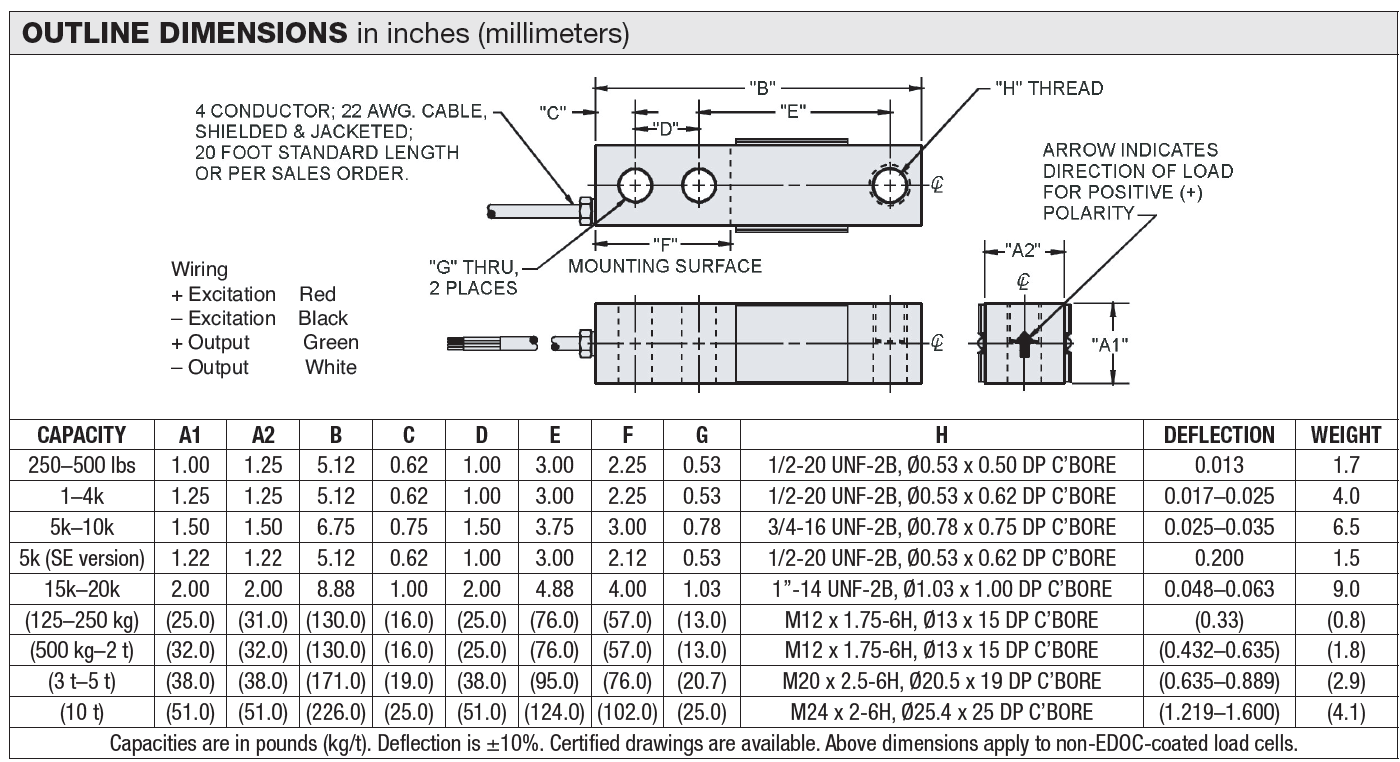

Notes
(1)  OIML approval 1k–10k lbs and 500–5000 kg only
(2) Stainless steel available FSO—Full Scale Output
All specifications subject to change without notice.

CERTIFICATION MARKINGS

ATEX & UKEX markings (For Zone 0, 1, 2 and Zone 20, 21, 22)
II 1GD
Ex ia IIC T4 Ga (Ta = -20°C to +60°C EPL Ga)
Ex ia IIIC T200135°C Da (Ta = -20°C to +100°C EPL Da)

FM Approval markings (USA and Canada)
IS Class I, II, III, Division 1, Groups A, B, C, D, E, F and G; NI Class I, Division 2, Groups A, B, C, and D;
DIP, Class II, III, Division 2, Groups F and G; T4;
Ta = -25°C to +66°C
