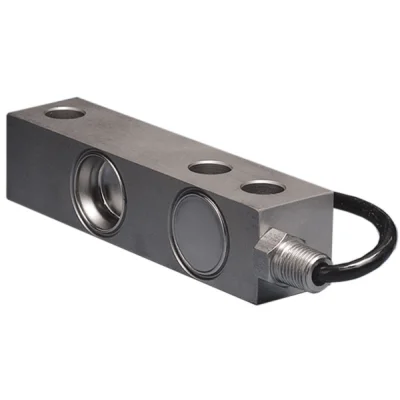

Sensortronics / 65083 Welded Seal Shear Beam Load Cell

Sensortronics / 65083 Welded Seal Shear Beam Load Cell

The Model 65083 provides the weighing industry withexcellent protection necessary for today’s hostileenvironments in an economical low profile range suitablefor platform scale manufacture.Its low profile and fully welded sealing, combined withhigh accuracy, makes this load cell ideally suited for lowprofile platforms, pallet truck weighers, tanks and silos.The guide slots incorporated into the upper and lowermounting faces enable manufacturers to easily positionthe load cell.Hermetically sealed against moisture, the constructionof the model 65083 in combination with a polyurethanedual shielded cable, enables continuous operationin harsh environments while maintaining a highoperating specification.The two additional sense wires feed back the voltagereaching the load cell. Complete compensation ofchanges in lead resistance, due to temperature changeand/or cable extension, is achieved by feeding thisvoltage into the appropriate electronics.

Category:
Tag:
브랜드: ,

설명

65083 Stainless Steel, Welded Seal Shear Beam Load Cell

FEATURES
• Rated capacities of 1000 to 20,000 pounds
• Stainless steel, welded seal construction
• Trade certified for NTEP Class IIIL 10000 and III 5000
divisions and OIML R-60 3000 divisions
• Hostile or clean environment
• Sealed to IP67, IP68 or IP69K rating
• Factory Mutual System Approved for Classes I, II, III;
Divisions 1 and 2; Groups A through G.
Also, non-incendive ratings (No barriers!)
• Optional
– Integral conduit adaptor with teflon jacketed cable
available
– EDOC option available; product appearance will differ
from the photograph due to coating

APPLICATIONS
• Hostile environments: food and beverage processing,
chemical and plastics processing,
pharmaceutical and biomedical processing
• Tank, bin and hopper weighing
• Batching, blending and mixing systems

SPECIFICATIONS
PARAMETER VALUE UNIT
Rated capacity—R.C. (Emax) 1k, 1.5k, 2.5k, 4k, 5k, 10k, 15k, 20k (1) 500 kg, 750 kg, 1 t, 2 t, 3 t, 5 t (1) lbs kg/t
NTEP/OIML accuracy class NTEP III NTEP IIIL Standard OIML R60
Maximum no. of intervals (n) 5000 single 10000 multiple   3000 (1)
Y = Emax/Vmin NTEP Cert. No. 98-058 8333 Maximum available
Rated output—R.O. 2.0 2.0 3.0 2.0 mV/V
Rated output tolerance 0.25 ±% mV/V
Zero balance 1.0 ±% FSO
Combined error 0.02 0.02 0.03 0.02 ±% FSO
Non-repeatability 0.01 ±% FSO
Creep error (30 minutes) 0.025 0.03 0.03 0.017 ±% FSO
Temperature effect on zero 0.0010 0.0010 0.0015 0.0010 ±% FSO/°F
Temperature effect on output 0.0008 0.0008 0.0008 0.0007 ±% of load/°F
Compensated temperature range 14 to 104 (–10 to 40) °F (°C)
Operating temperature range 0 to 150 (–18 to 65) °F (°C)
Storage temperature range –60 to 185 (–50 to 85) °F (°C)
Sideload rejection ratio 500:1
Safe sideload 100 % of R.C.
Maximum safe central overload 150 % of R.C.
Ultimate central overload 300 % of R.C.
Excitation, recommended 10 VDC or VAC RMS
Excitation, maximum 15 VDC or VAC RMS
Input impedance 343–357 Ω
Output impedance 349–355 Ω
Insulation resistance at 50 VDC >1000 MΩ
Material Stainless steel
Environmental protection IP68, IP69K
Recommended torque All capacities up to 5000 kg–136.0 5000 kg–205.0 N*m

Notes
(1) OIML approval 1–10k lbs and 500–5000 kg only
NTEP approval 1–10k lbs only (kg/metric capacities are not approved)
FSO—Full Scale Output
All specifications subject to change without notice.

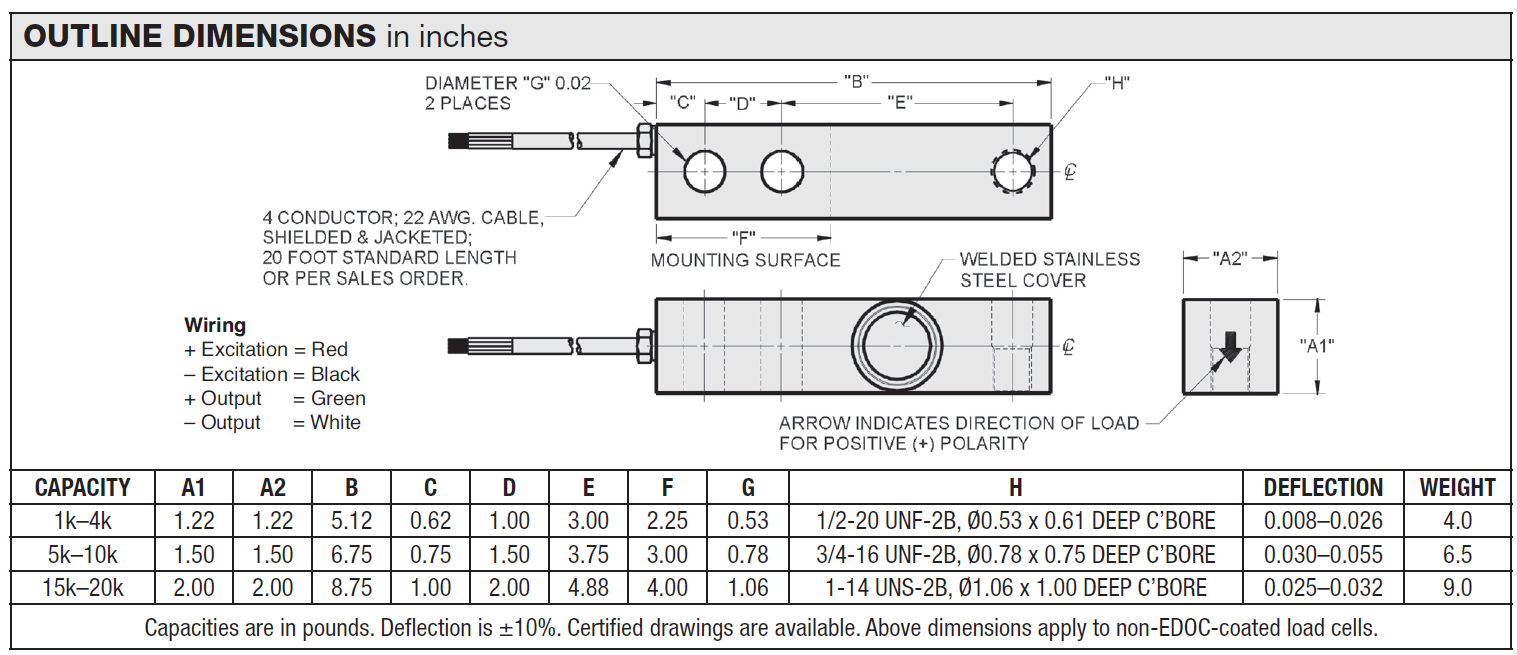

CERTIFICATION MARKINGS
ATEX/IECEx/UKEX markings (for Zone 0,1,2 and Zone 20,21,22)
II 1 GD
Ex ia IIC T4 Ga
Ex ia IIIC T135°C Da
Ta = -20°C to +40/70°C

FM Approval markings (USA and Canada)
IS Class I, II, III, Division 1,
Groups A, B, C, D, E, F and G; T4
Ta = -25°C to +40°C

ATEX/UKEX markings (for Zone 2 and Zone 22 only)
II 3GD
Ex ec IIC T6 Gc
Ex tc IIIC T85°C Dc
Ta = -20 to +40°C
or
II 3GD
Ex ec IIC T4 Gc
Ex tc IIIC T135°C Dc
Ta = -20 to +70°C
