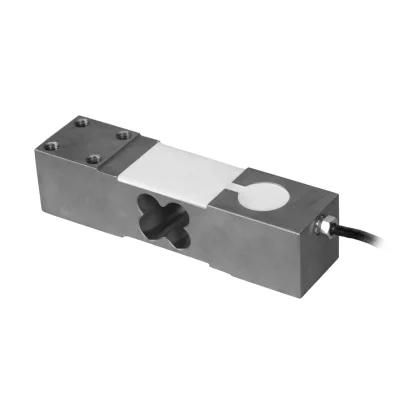

Sensortronics / 92001 Single-Point Alloy Steel Load Cell

Sensortronics / 92001 Single-Point Alloy Steel Load Cell

The Model 92001 is an alloy steel single-point loadcell designed for direct mounting in large platformscale applications. It has a very similar design to theModel 92006 with some key differences. The Model92001 can register smaller loads but it requires differentplatform sizes depending on the desired capacity range.The cost effective load cell is ideal for use in counting,bench and floor scales. This model provides scalemanufacturers with a high accuracy, low-cost sensor fortheir most demanding technical requirements.

Category:
Tag:
브랜드:

설명

92001 Single-Point Alloy Steel Load Cell

FEATURES
• Capacity range: 50–1500 kg
• Alloy steel construction
• Single-point for the following platform sizes:
– 50–750 kg: 600 × 600 mm platform
– 1000–1250 kg: 750 × 750 mm platform
– 1500 kg: 900 × 900 mm platform
• Optional
– Stainless steel construction
APPLICATIONS
• Large platform scales
• Bench and counting scales
• Check weighing scales

SPECIFICATIONS
PARAMETER VALUE UNIT
Rated output-R.O. 2.0 mV/V
Rated output tolerance 10 ± % FSO
Zero balance 1 ± % FSO
Combined error <0.045 ± % FSO
Non-linearity <0.025 ± % FSO
Hysteresis <0.020 ± % FSO
Non-repeatability <0.010 ± % FSO
Creep error (30 minutes) <0.025 ± % FSO
Temperature effect on zero <0.002 ± %/°C
Temperature effect on output 0.001 ± %/°C
Operating temperature range –20 to +70 °C
Maximum safe central overload 150 % FSO
Ultimate central overload 300 % FSO
Excitation, recommended 10 VDC
Excitation, maximum 15 VDC
Input impedance 380–400 Ω
Output impedance 349–355 Ω
Insulation resistance at 50 VDC >1000 MΩ
Material Alloy steel with electroless nickel-plated
Environmental protection IP66
Platform size 50–750 kg: 600 ´ 600 1000–1250 kg: 750 ´ 750 1500 kg: 900 ´ 900

All specifications subject to change without notice.
