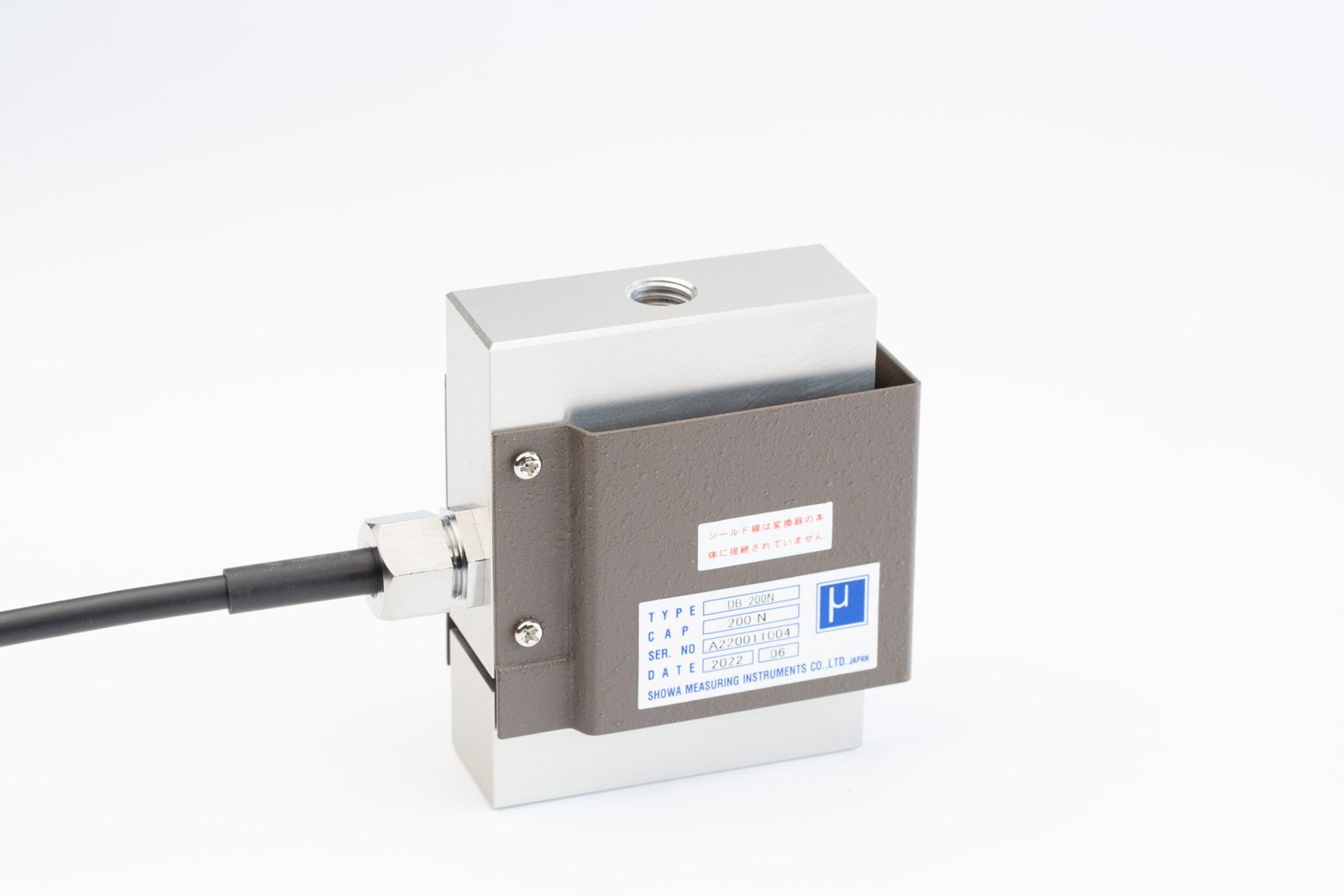

DB Tension Load Cell
Features
- High accuracy. High output. For versatile applications.
- Small size. Light weight. Low cost.
- Ensuring high stability through special humidity-proof treatment.
- Both for tension and compression applications.
- Applications: Weighing devices in hoppers or packers. Testing machines or industrial machines.
- Accuracy class: 0.02%
Appearance Dimensions
Model and Capacity / Dimension / etc. (unit : mm)
| Model | Capacity | A | B | C | D | E | F | G | Natural frequency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| DB-200N | 200 N | 70 | 25 | 90 | 77 | 37 | 58 | M12*1.75,18 deep | 0.4 kHz | 0.4 kg |
| DB-500N | 500 N | 70 | 25 | 90 | 77 | 37 | 58 | M12*1.75,18 deep | 0.8 kHz | 0.4 kg |
| DB-1KN | 1 kN | 70 | 25 | 90 | 77 | 37 | 58 | M12*1.75,18 deep | 1.3 kHz | 0.4 kg |
| DB-2KN | 2 kN | 70 | 25 | 90 | 77 | 37 | 58 | M12*1.75,18 deep | 1.0 kHz | 1.0 kg |
| DB-5KN | 5 kN | 70 | 25 | 90 | 77 | 37 | 58 | M12*1.75,18 deep | 2.4 kHz | 1.0 kg |
| DB-10KN | 10 kN | 80 | 30 | 108 | 87 | 42 | 71 | M16*2,20 deep | 2.5 kHz | 1.6 kg |
| DB-20KN | 20 kN | 80 | 30 | 108 | 87 | 42 | 71 | M16*2,20 deep | 4.5 kHz | 1.6 kg |
* The weight indicated in the specifications does not include that of the cable.
Specifications
| Safe Overload | 150 %R.C. |
|---|---|
| Rated Output | 3 mV/V±1 % |
| Nonlinearity | 0.02 %R.O. |
| Hysteresis | 0.02 %R.O. |
| Repeatability | 0.01 %R.O. |
| Excitation Voltage | 12 V (or less) |
| Safe Excitation Voltage | 20 V |
| Input Rsistance | 350 Ω |
| Output Rsistance | 350 Ω |
| Compensated Temp.Range | -10～60 ℃ |
| Safe Temp.Range | -30～80 ℃ |
| Temp.Effect on Zero | 0.002 %R.O./℃ |
| Temp.Effect on Output | 0.002 %/℃ |
| Cable | Φ6mm-4wire shielded cable, length : 5m |
