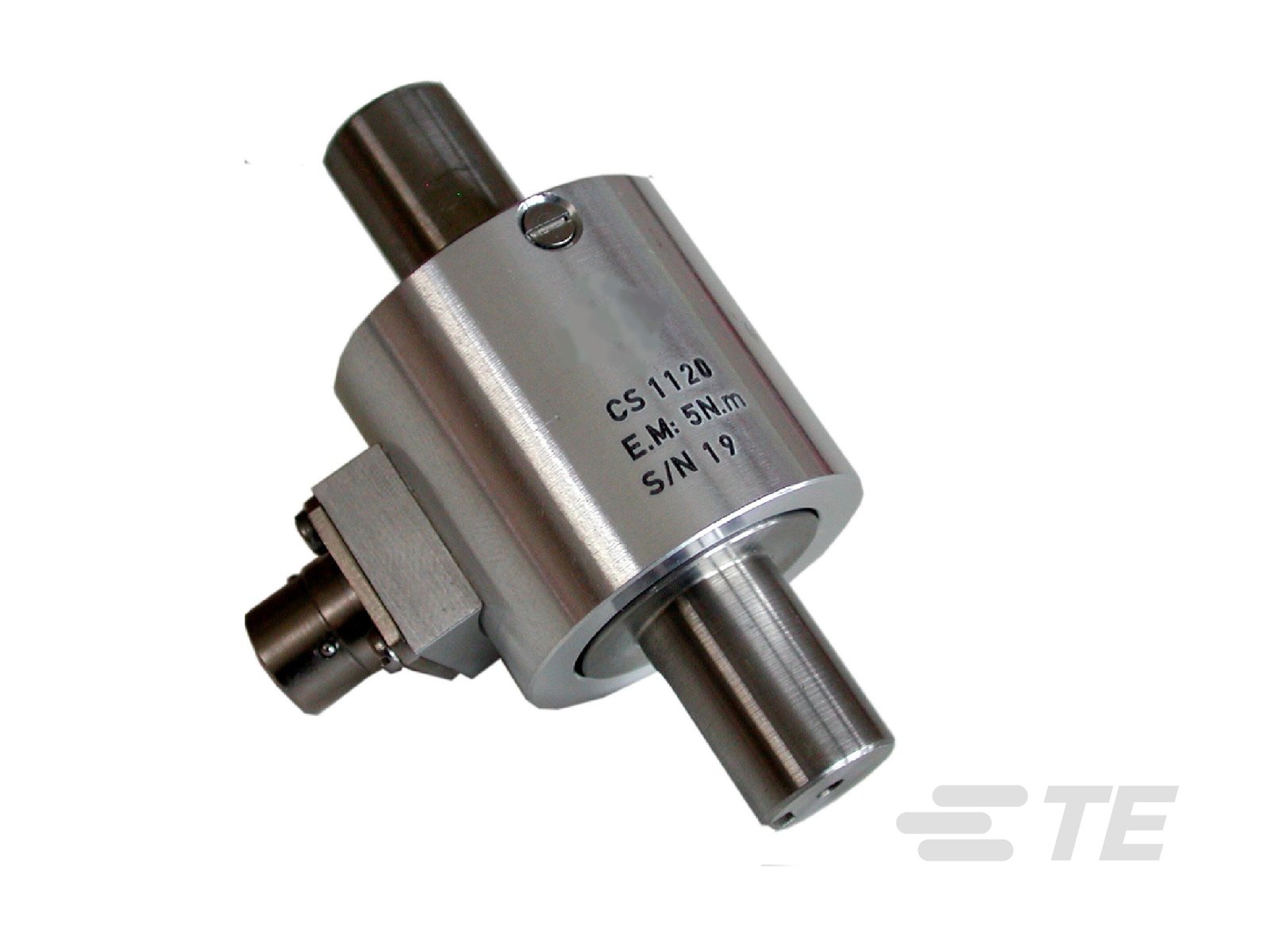

CS1120 Reaction Torquemeter
FEATURES
– For Static Applications
– Keyed Shaft Mechanical Connection
– High Level Output Model with Integrated Amplifier
APPLICATIONS
– Process control equipment
– Torque calibration benches
– Laboratory and Research
– Robotics and effectors
The CS1120 Series has been designed to measuretorque from in static applications. Fitted with metallic straingauges in a Wheatstone bridge circuit, the CS1120 isproviding excellent temperature stability. For high-leveloutput a model with integrated amplifier is available.Another version with male square interfaces isavailable under the reference CS1060.With a long standing experience as a designer andmanufacturer of sensors, TE CONNECTIVITY often workswith customers to design or customize sensors for specificuses and testing environments.To meet your needs we also offer extensive turnkeysystems. The matched components (sensor, power,amplifier and digital display) are formatted, calibrated andready for immediate use.On request, Instruction documents can be providedto ease the selection and use of our sensors and providehelpful tips.
STANDARD RANGES
| F.S. Range (Nm) | 5–20 | 21–100 | 101–300 | 301–800 | 801–2.5k |
|---|---|---|---|---|---|
| F.S. Range (lbf·ft) | 4–16 | 17–80 | 81–240 | 241–640 | 641–2k |
| Stiffness (Nm/rad) | 2×10² to 1.2×10³ | 1.2×10³ to 1×10⁴ | 1×10⁴ to 4.1×10⁴ | 4.1×10⁴ to 1.2×10⁵ | 1.2×10⁵ to 6×10⁵ |
| Stiffness (lbf·ft/rad) | 0.1×10² to 0.8×10² | 0.8×10² to 6.9×10² | 6.9×10² to 2.7×10³ | 2.7×10³ to 8.2×10³ | 8.2×10³ to 4.1×10⁴ |
PERFORMANCE SPECIFICATIONS (typical values at temperature 23±3°C)
| Parameter | Specification |
|---|---|
| Operating Temperature Range (OTR) | -20 to 80°C (-4 to 176°F) |
| Compensated Temperature Range (CTR) | 0 to 60°C (32 to 140°F) |
| Zero Shift in CTR | < ±0.5% F.S. / 50°C [/100°F] |
| Sensitivity Shift in CTR | < ±1% of reading / 50°C [/100°F] |
| Over-Range (Without Damage) | 1.5 × F.S. |
| Over-Range (Without Destruction) | 3 × F.S. |
| Accuracy (Combined Non-Linearity & Hysteresis) | ±0.25% F.S. |
Electrical Characteristics
| Parameter | CS1120 | CS1120-A1 | CS1120-A2 |
|---|---|---|---|
| Supply Voltage | 1 to 10 Vdc regulated | 10 to 30 Vdc | ±15 Vdc (±12 to ±18 Vdc) |
| Sensitivity (FSO) | ±2 mV/V | ±2 V ±0.2 V | ±5 V ±0.2 V |
| Zero Offset | ±1 mV | 2.5 V ±0.2 V | 0 V ±0.2 V |
| Input Impedance / Consumption | 350–700 Ω | <30 mA | <30 mA |
| Output Impedance | 350–700 Ω | 1 kΩ | 1 kΩ |
| Insulation (under 50 Vdc) | ≥100 MΩ | ≥100 MΩ | ≥100 MΩ |
Notes
1. Sensors are calibrated with 10Vdc power supply as standard.
2. Signal goes positive in CW strain with standard wiring configuration. Other signal output on request
3. Electrical Termination: Connector output including mate
4. Material: Body in stainless steel ; housing in aluminum alloy
5. Connection : Keyed shaft standard, other connection types on request (smooth shaft, cotter pin, etc)
6. Output impedance < 100Ω on request
7. CE conformance according to EN 61010-1, EN 50081-1, EN 50082-1
DIMENSIONS & WIRING SCHEMATIC (IN METRIC AND IMPERIAL)
| F.S. Range (Nm) | 5–20 | 21–100 | 101–300 | 301–800 | 801–2.5k |
|---|---|---|---|---|---|
| F.S. (lbf·ft) | 4–16 | 17–80 | 81–240 | 241–640 | 641–2k |
| A | 35 [1.38] | 35 [1.38] | 40 [1.57] | 50 [1.97] | 65 [2.56] |
| B | 35 [1.38] | 35 [1.38] | 40 [1.57] | 45 [1.77] | 55 [2.17] |
| C | 14 [0.55] | 19 [0.75] | 28 [1.10] | 39 [1.54] | 54 [2.13] |
| G | 75 [2.95] | 95 [3.74] | 135 [5.31] | 165 [6.50] | 240 [9.45] |
| J | 5 [0.20] | 6 [0.24] | 8 [0.31] | 12 [0.47] | 16 [0.63] |
| K | 11 [0.43] | 15.5 [0.61] | 24 [0.94] | 34 [1.34] | 48 [1.89] |
| L | 15 [0.59] | 25 [0.98] | 40 [1.57] | 50 [1.97] | 80 [3.15] |
OPTIONS
| Code | Description |
|---|---|
| A1 | Amplified tension output with unipolar power supply |
| A2 | Amplified tension output with bipolar power supply |
| Z14 | CTR -20 to 100°C [-4 to 212°F], OTR = CTR |
| V00 | Non-standard power supply calibration. Replace “00” with required voltage value in Volt (standard 10 Vdc, unamplified sensor only) |
| FMC | Mating connector fitting with 2 m [6.6 ft] cable |
ORDERING INFORMATION
| Position | Description | Available Options |
|---|---|---|
| Model | Torque sensor model | CS1120 |
| Amplified Version | Output type | None (Unamplified)A1 (Amplified, unipolar supply)A2 (Amplified, bipolar supply) |
| Range | Measuring range in Newton·meter | 5 / 10 / 20 / 50 / 100 / 150 / 200 / 300 / 500 / 750 / 1k / 2k / 3k / 4k / 5k / 7k Nm |
| Options | Additional options (suffix format “/…”) | ET1, L00M, V00, FMC, Z14, etc. (see Options Table) |
SUPPLIED ACCESSOIRES
EFMX-4M : mating plug Jaeger 530-801-006 with clamp 530-841-006
