FN3050 Load Cell Tension and Compression

The rugged FN3050 load cell is highly suited for process industryand test bench applications. Dimensions are identical instandard ranges from 0-100 N to 0-20000 N so during testing thesensor can be interchanged for another of a different rangewithout mechanical modifications. The sensor design minimizestransverse effects. For high-level output, a model with integratedamplifier is available as are numerous other options.With a long-standing experience as a designer andmanufacturer of sensors, TE CONNECTIVITY often works withcustomers to design or customize sensors for specific uses andtesting environments.To meet your needs, we also offer extensive turnkeysystems. The matched components (sensor, power, amplifierand digital display) are formatted, calibrated and ready forimmediate use.On request, Instruction documents can be provided toease the selection and use of our sensors and provide helpfultips.

FEATURES

– Same housing for all ranges
– Mechanical stops in option
– Optional: Tension Pull Plate, Load Button
– Integrated amplifier optional

APPLICATIONS
– Process control equipment
– Regulation load cell
– Robotics and effectors
– Laboratory and Research
– Dedicated to low and medium
quantity volume

CHARACTERISTICS (typical values at temperature 23°C)

Notes

1. Signal goes positive in tension with standard wiring Other signal output on request
2. Electrical Termination: Connector output including mate
3. Body in stainless steel or aluminium alloy depending on S.
4. Output impedance < 100Ω on request
5. CE conformance according to EN 61010-1, EN 50081-1, EN 50082-1

DIMENSIONS & WIRING SCHEMATIC (IN METRIC AND IMPERIAL)

OPTIONS

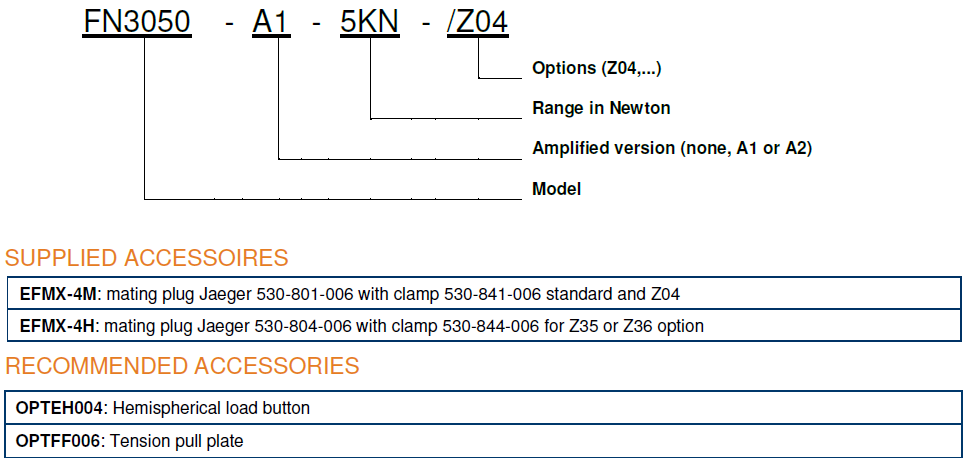

ORDERING INFO
