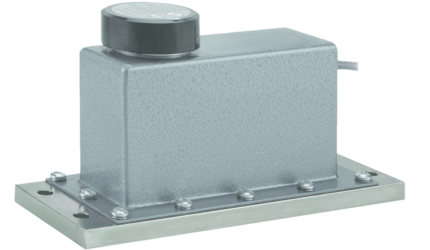

Tedea Huntleigh / Model 240 Fluid-Damped Single-Point Load Cell

Tedea Huntleigh / Model 240 Fluid-Damped Single-Point Load Cell

Model 240 is speciically designed to be used wherefast acquisition of a stable load signal is paramount. TheModel 240’s unique luid damping system allows the loadcell to be used in applications that previously required theuse of LVDT’s or similar types of measuring devices.The Model 240 brings load cell adaptability into checkweighing and grading applications.Approved to OIML R60 and NTEP standards, sealedto IP66 level and available in coated steel or stainlesssteel, the Model 240 is suitable for most wash-downapplications.The two additional sense wires feed back the voltagereaching the load cell. Complete compensation ofchanges in lead resistance due to temperature changeand/or cable extension, is achieved by feeding thisvoltage into the appropriate electronics.

Category:
Tag:
브랜드: ,

설명

Model 240 Fluid-Damped Single-Point Load Cell

FEATURES
• Capacities 2–50 kg
• Painted steel construction
• OIML R60 and NTEP approved
• IP66 protection
• Available with metric and UNC threads
• Optional
 -Stainless steel construction
APPLICATIONS
• Multi-head illing machines
• Check weighing
• Grading machines
• Liquid illing
• Dynamic weighing

SPECIFICATIONS
PARAMETER VALUE UNIT
Rated capacity—R.C. (Emax) 2, 3, 5, 7, 10, 15, 20, 30, 50** kg
OIML accuracy class NTEP Non-Approved C3*
Maximum no. of intervals (n) 5000 1000 3000
Y = Emax/Vmin 12000 1750 9000 Maximum available
Rated output—R.O. 2.0 mV/V
Rated output tolerance 0.2 ±mV/V
Zero balance 0.1 ±mV/V
Zero return, 30 min. 0.033 0.050 0.015 ±% of applied load
Total error 0.050 0.025 0.015 ±% of rated output
Temperature effect on zero 0.0026 NA 0.0026 ±% of rated output/°C
Temperature effect on output 0.0010 NA 0.0010 ±% of rated output/°C
Temperature range, compensated –10 to +40 °C
Temperature range, safe –30 to +70 °C
Maximum safe central overload 150 % of R.C.
Ultimate central overload 300 % of R.C.
Excitation, recommended 10 VDC or VAC RMS
Excitation, maximum 15 VDC or VAC RMS
Input impedance 415±15 Ω
Output impedance 350±3 Ω
Insulation resistance >1000 MΩ
Cable length To suit m
Cable type 6-wire, braided, polyurethane, silicone gel impregnation Standard
Construction Painted mild steel***
Environmental protection IP66

* 50% utilization
** 2 and 3 kg are not approved by NTEP or OIML
*** Stainless steel available
All speciications subject to change without notice.
