Thames Side / T5 Single Point Load Cell

Thames Side / T5 Single Point Load Cell

Key features:

  • Capacity range: 3-100kg
  • High quality aluminium alloy, corrosion resistant
  • 3000 divisions performance
  • Fully potted and sealed to IP66
  • 400 x 400mm max. platform size (with load cell placed centrally under platform)
  • Screened PVC cable

Typical applications:

  • Small platforms up to 400mm x 400mm
  • Small buckets and hoppers
  • Bagging and dosing machines
  • Multi-head weigher machines
  • Filling systems / scales
  • Checkweighers
Category:
Tag:
브랜드:

설명

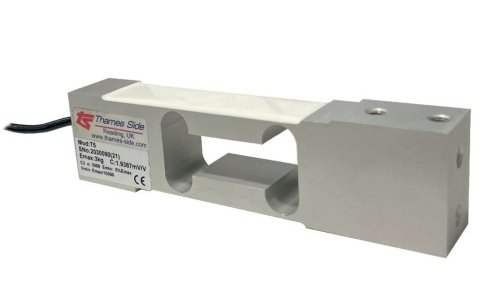

T5 Single Point Load Cell

The cost-effective T5 single point load cell is manufactured from high quality aluminium alloy and its design provides for high accuracy weight measurement, even with off-centre loads.

It is suitable for platforms of size 400mm x 400mm maximum (with the load cell installed centrally under the platform).  Potted and silicone sealed to provide IP66 protection, it features a 4-wire screened PVC cable as standard.

thames side india t5 load cell data sheet
