설명

Models

610-50kg, 610-100kg, 610-250kg, 610-500kg, 610-1000kg

Features

 Tension/compression load cell
 3000 divisions OIML R60 class C
 Measuring element from Alloy Steel
 Protected IP 67 (EN 60529)
 Protected against corrosion by
nickel-plated treatment
 Applications:
– Suspended weighing in Tanks, Hoppers
and Belt Conveyor Scales
– Asphalt and Concrete Plants
– Force measurement in Test Equipment
– Crane scales

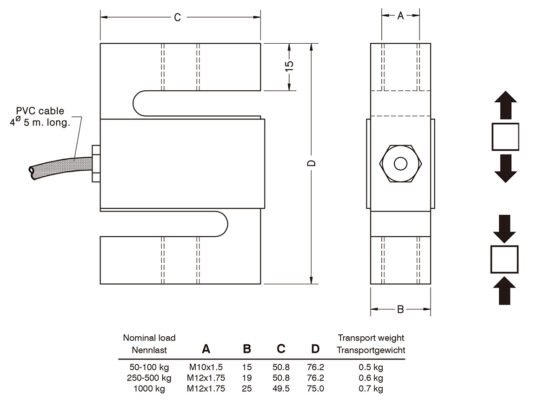

Dimensions

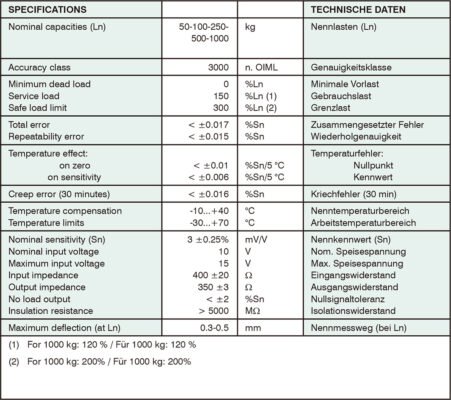

Specifications
