Models

620-50kg, 620-100kg, 620-150kg, 620-200kg, 620-300kg, 620-500kg, 620-750kg, 620-1000kg, 620-1500kg, 620-2000kg, 620-3000kg, 620-5000kg, 620-6000kg

Features

 Tension/compression load cell
 3000 divisions OIML R60 class C
 Measuring element from Alloy Steel
 Protected IP 67 (EN 60529)
 Protected against corrosion by nickelplated treatment
 Applications:
– Suspended weighing in Tanks, Hoppers
and Belt Conveyor Scales
– Asphalt and Concrete Plants
– Force measurement in Test Equipment
– Crane scales

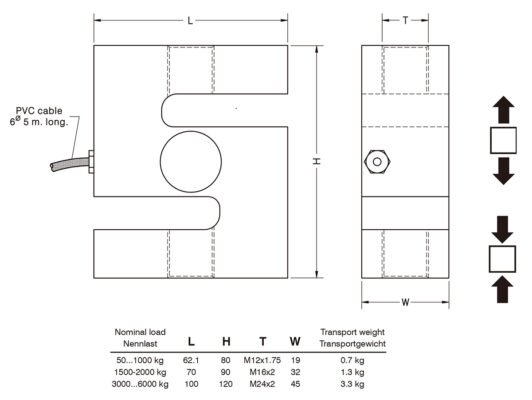

Dimensions

Specifications
