설명

Models

630-25kg, 630-50kg, 630-100kg, 630-250kg, 630-500kg, 630-1000kg, 630-2500kg

Features

 Tension/compression load cell
 3000 divisions OIML R60 class C
 Measuring element from Alloy Steel
 Protected IP 67 (EN 60529)
 Protected against corrosion by nickelplated treatment
 Applications:
– Suspended weighing in Tanks, Hoppers
and Belt Conveyor Scales
– Asphalt and Concrete Plants
– Force measurement in Test Equipment
– Crane scales

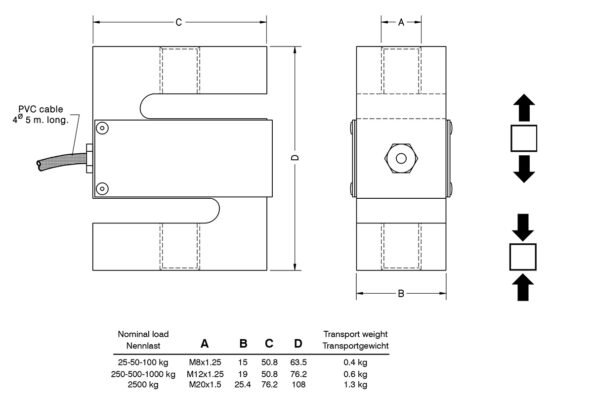

Dimensions

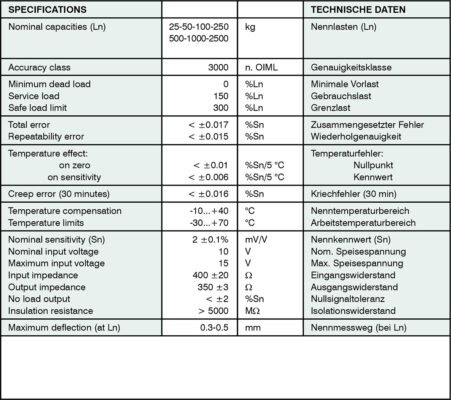

Specifications
