Models

740D-15t, 740D-30t, 740D-40t, 740D-50t, 740D-60t, 740D-100t, 740D-200t, 740D-400t, 740D-600t

Features

 Digital compression load cell,
selfcentering column
 1000 divisions OIML R60 class C
 Stainless Steel construction
 Hermetically welded, protection class
IP 68 (EN 60529) and IP 69K (ISO 20653)
 Lightning protection
 Digital interface RS485 fullduplex
 High speed of 200 readings/second
 Configuration and updatable software
through serial interface
 Advantages in system setup, corner
adjustment and individualized diagnosis
 Applications: High capacity weighing
systems

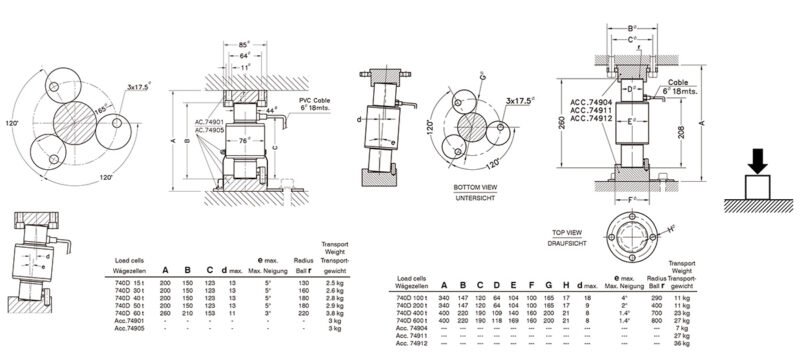

Dimensions

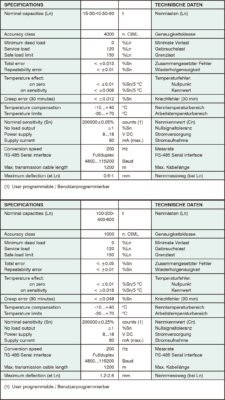

Specifications
